Description

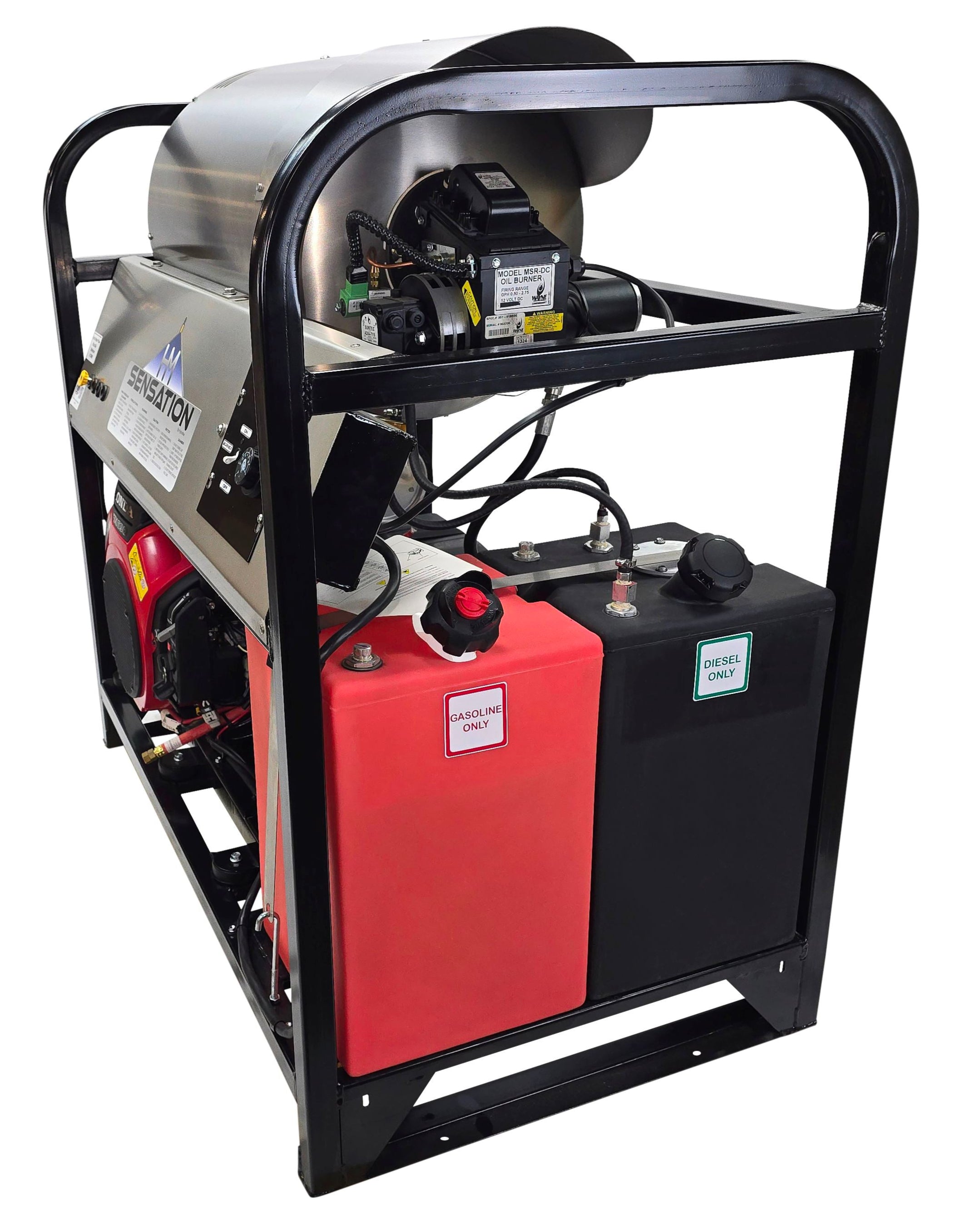

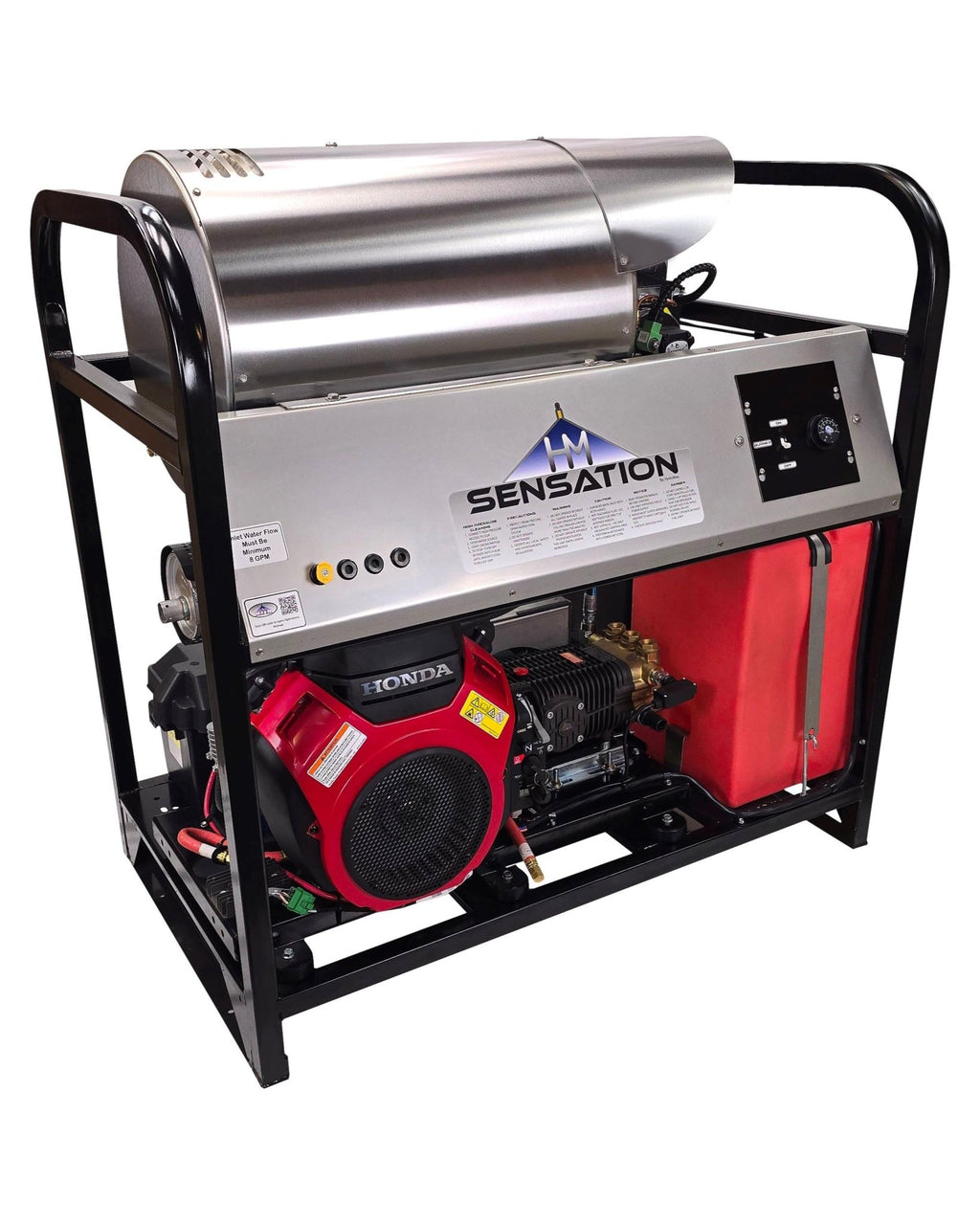

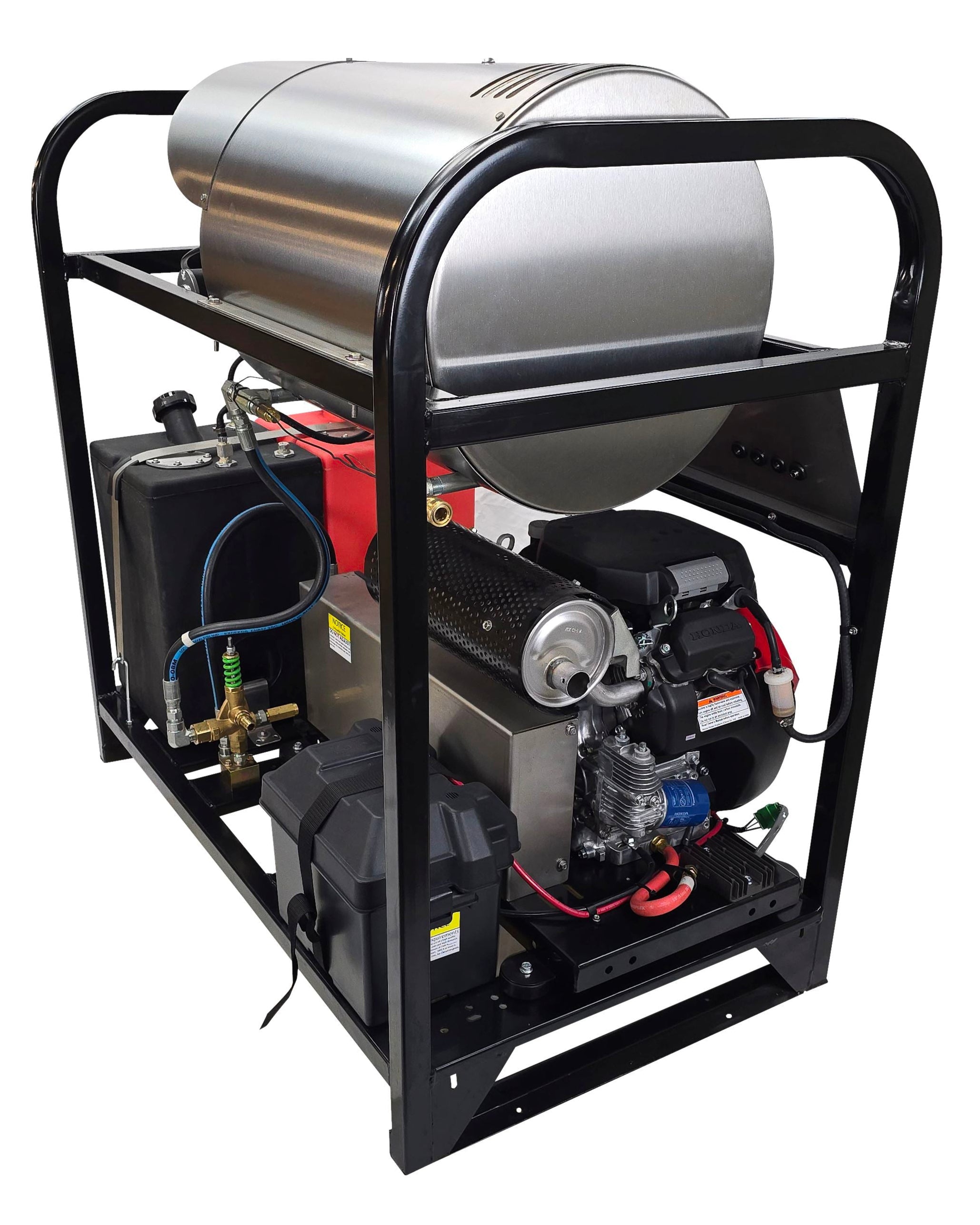

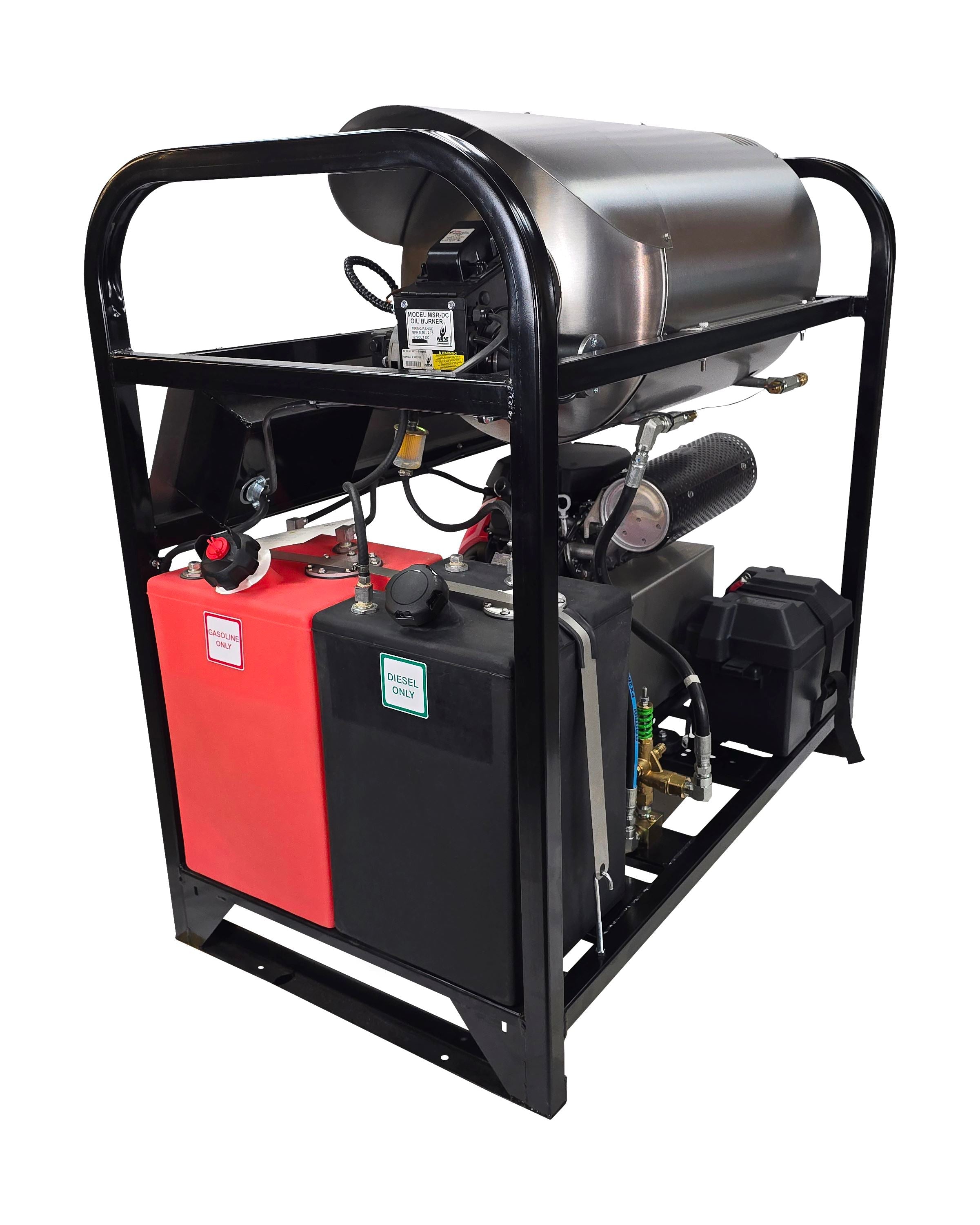

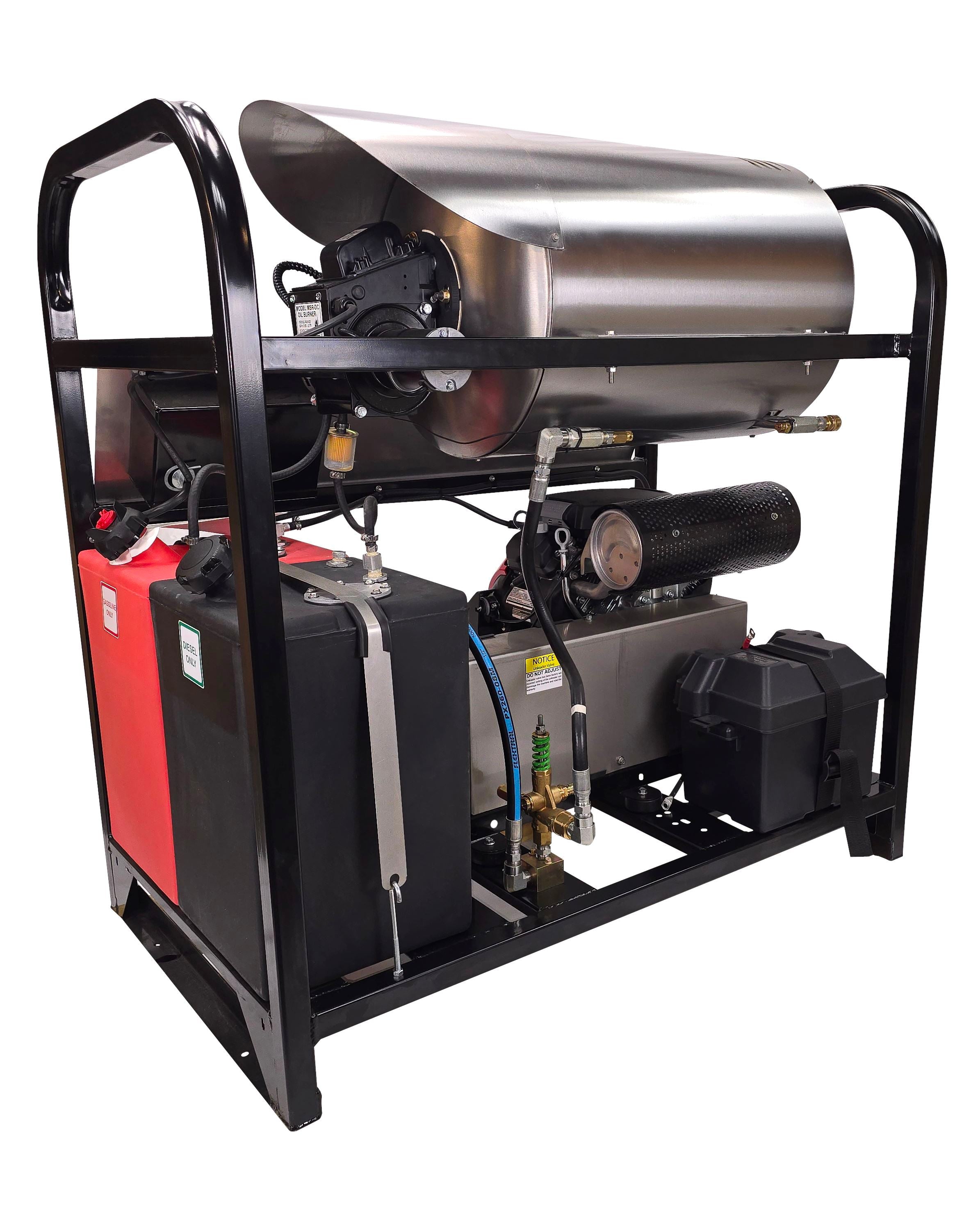

Built for professional, industrial use, the Sensation SG640HA delivers high-output cleaning performance with a Honda GX630 series engine and a Comet RWS6040 belt‑drive pump. Designed for durability and serviceability, it features efficient heat rise, an adjustable thermostat, stainless steel coil wrap/panels, and a weather‑tight electrical box. A heavy‑duty powder‑coated frame, easy oil drain, and included pro accessories help maximize uptime across construction, agriculture, manufacturing, and commercial cleaning applications.
Performance Specifications
|
Metric |
Specification |
|
Flow Rate |
6.0 GPM max |
|
Pressure |
4000 PSI |
|
Temperature Control |
Adjustable Thermostat (Rated to 250°F) |
|
Dimensions |
46" L x 28" D x 46" H |
|
Weight |
Approx. 600 lbs |
Technical Product Specifications
| Component | Details |
|
Engine |
Honda GX630 V-Twin – 688cc OHV, electric start |
|
Pump |
Comet RWS6040 – Brass manifold, ceramic plungers, 6.0 GPM @ 4000 PSI max |
|
Burner |
Wayne MSR DC-12V – Oil-fired, 12V, diesel or kerosene |
|
Coil |
18" x 24" High-Efficiency Heat Coil |
|
Fuel System |
Dual 11-gallon EPA-compliant XLPE tanks with inline filter |
|
Unloader Valve |
VRT3-310 rated to 4500 PSI |
|
Frame & Housing |
Welded 14GA powder-coated steel frame with stainless steel coil wrap and access panels |
|
Electrical |
12V LED panel lights, magnetic breaker switch, sealed connectors |
|
Drive System |
Belt Drive with Triple BX High HP Belts |
Included Accessories
- ✅ 50 ft. 3/8” Non-Marking Pressure Hose (rated to 4000 PSI)
- ✅ 48” Single Lance Wand with DG5010 Vented Trigger Gun
- ✅ Quick-Connect Nozzle Set (0°, 15°, 25°, 40°)
- ✅ Chemical Injector for downstream application
- ✅ Inline Fuel Filter and dual-tank hose system
- ✅ Hour Meter for maintenance tracking
- ✅ AR VRT3-310 Unloader and Pressure Switch
- ✅ Nozzle Grommets, Thermostat, Flow Switch
