Commercial Pressure Washer Nozzles, Turbo Nozzles & Spray Tips

Getting Your Pressure Washer Nozzle Sizing Right

Nozzle part numbers combine the spray angle and orifice size. For example, a 2504 tip features a 25-degree fan pattern with a size 4.0 orifice.

To select the right nozzle:

1. Identify your machine’s exact GPM and operating PSI.
2. Cross-reference a nozzle sizing chart to determine your required orifice size.

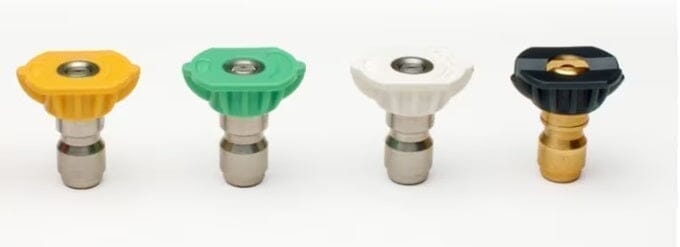

3. Select your spray angles based on the job:

• 0° (Red): Max impact for pinpoint cutting, blasting, and tough spots.
• 15° (Yellow): Stripping paint, cleaning equipment, and heavy-duty concrete prep.

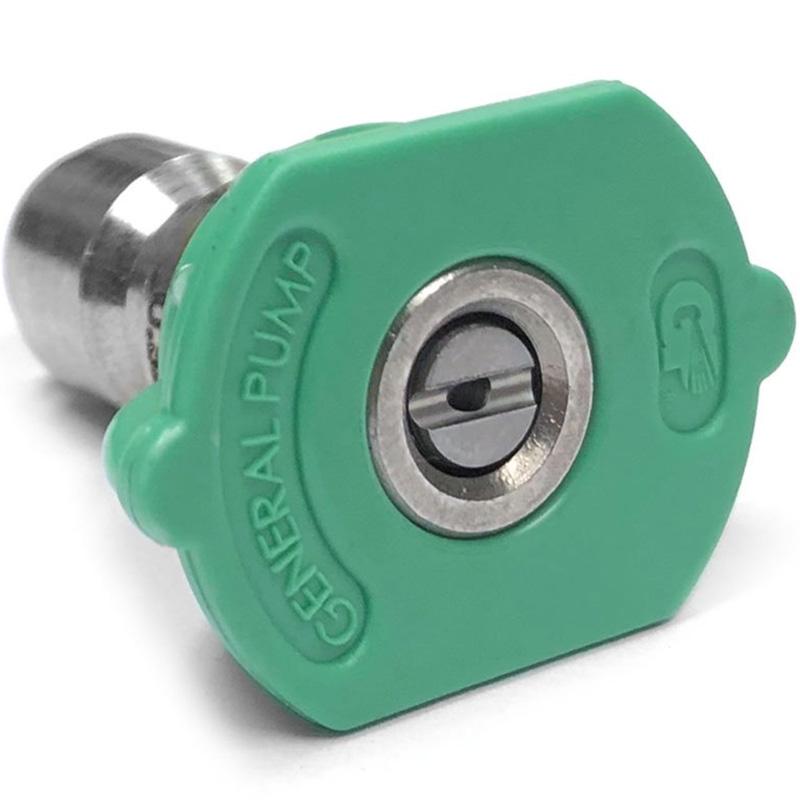

• 25° (Green): The standard workhorse angle for general commercial cleaning.
• 40° (White): Wide fan pattern for rinsing delicate surfaces, vehicles, and windows.

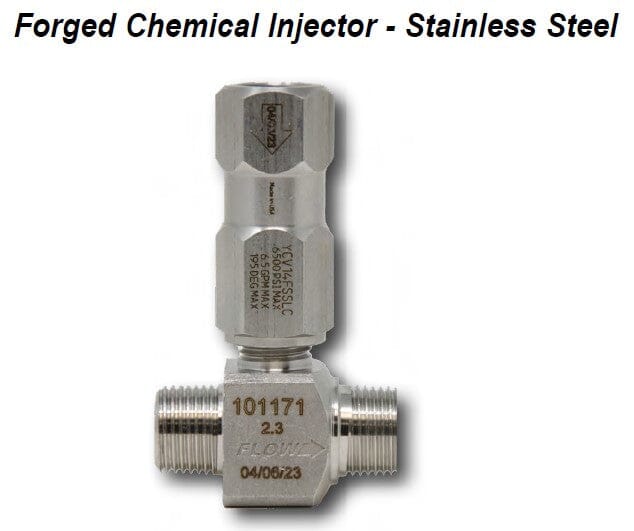

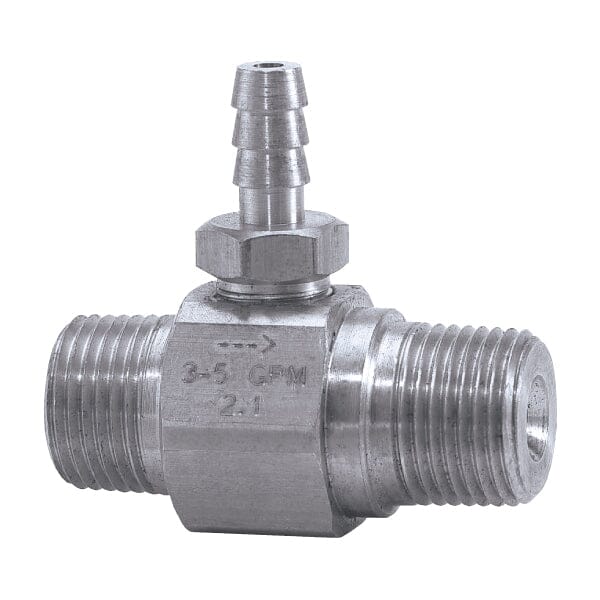

• Soap Nozzles (Black / Brass): Low-pressure orifices designed for chemical pulling and downstream injection.

💡 Not sure which one you need? Read our guide, Are You Using the Right Nozzle?

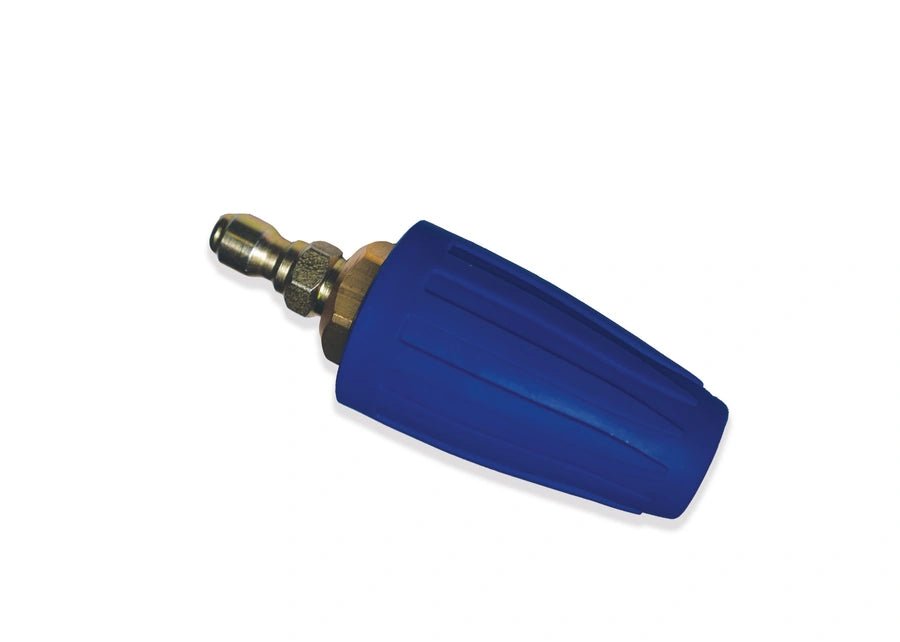

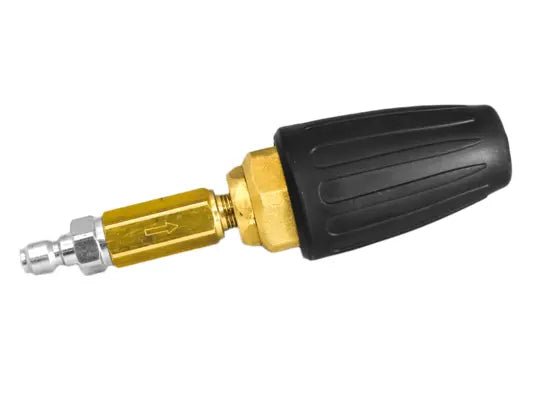

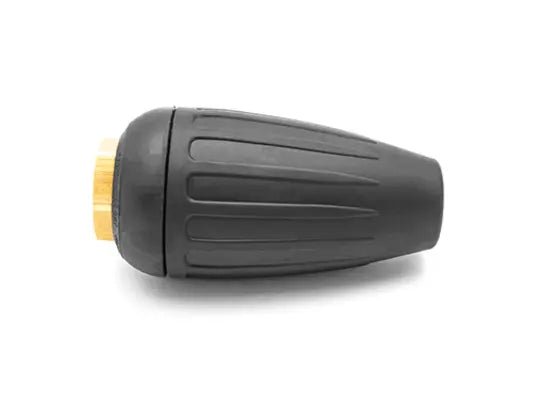

Turbo nozzles - rotating 0-degree power for concrete and heavy buildup

Standard tips - all angles in sizes 3 through 10+

Soap nozzles - low-pressure chemical application

Frequently asked questions

Why did my pressure drop suddenly? Check the nozzle first - a worn orifice grows in size and bleeds pressure. Tips are consumables; replace them seasonally.

What is the difference between a turbo nozzle and a 0-degree tip? A turbo spins a 0-degree jet in a cone, giving cutting power over a wider path - much faster on flatwork, easier on surfaces than a fixed 0-degree.
