Description
Hydro Max Tank Skid - Kohler engine
Hydro Max tank skids are complete pressure washer packages built into a compact frame. The units are like full trailer packages without the wheels and axles. Tank skids can be lifted from the top or lifted using the integrated fork slots. Fork slots go through the entire unit so they can be safely lifted using a forklift with standard length forks.
Hydro Max Tank Skid TS-DC8540KCI-300 (300 gallon storage)
- 8gpm@4000psi-Hot Water(DC8540KCI Unit)
- Adjustable Thermostat
- Belt Drive Pump
- Kohler ECH749-3061- Electric Start
- 100' 4200psi Rated Pressure Hose
- 100' 5/8" Water Hose
- 1ea-GP DHRA300 Reel(300' Capacity/5000psi rated)-pressure reel
-
1ea-GP DHRGH150 Reel(150' Capacity Water Hose Reel)
- Chemical Injector
- Nozzle Set
- QC Fittings on Hose
- By-pass plumbed back to water tank
- 1" Supply line
- GP Inlet water filter
- Fully plumbed and self contained
- Dimensions:
- 83"L x 48"W x 50"H (including reel)
- 60"L x 48"W x 50"H (reel removed)
- Triple 100Gal tanks - can be used as 300gal water or water and chem storage
- please add a comment to order if tanks will be used for chem storage
- plumbing can be modified for mix tank use
- Options
- Reels(pressure hose and garden hose)
- Front mounted reels or top mounted reels
- Storage platform(over tanks) - can be used for reels, 26 gallon chem tank, equipment mounting, etc.
- Two Gun packages
- Please call for special request. Many options can be fitted.
Choose any options or accessories needed from the options tab. Add hose reels, water supply reels or chemical storage tank. The package can be ordered with reels that mount on the front, reels that mount on the top, or no reels.

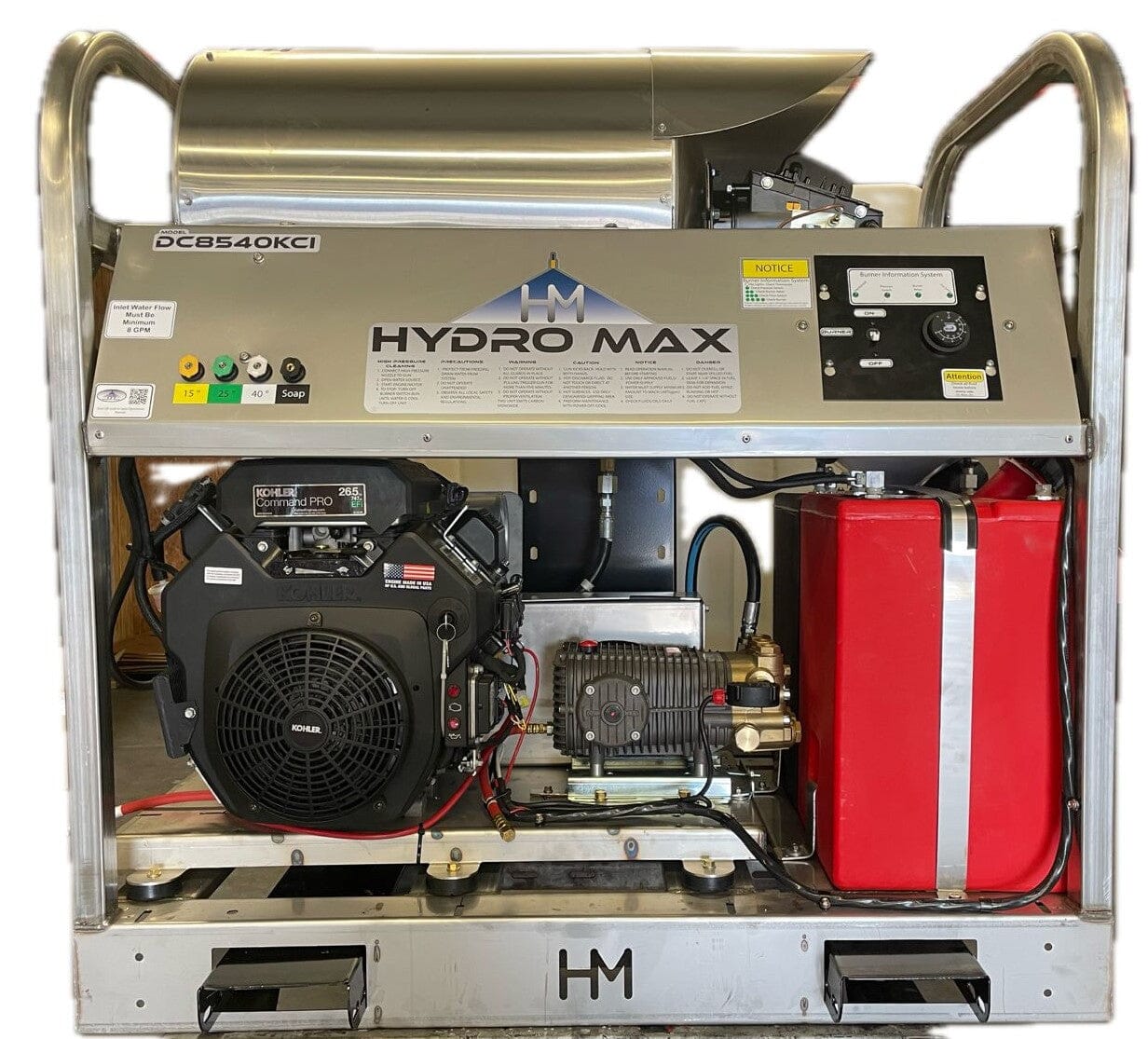

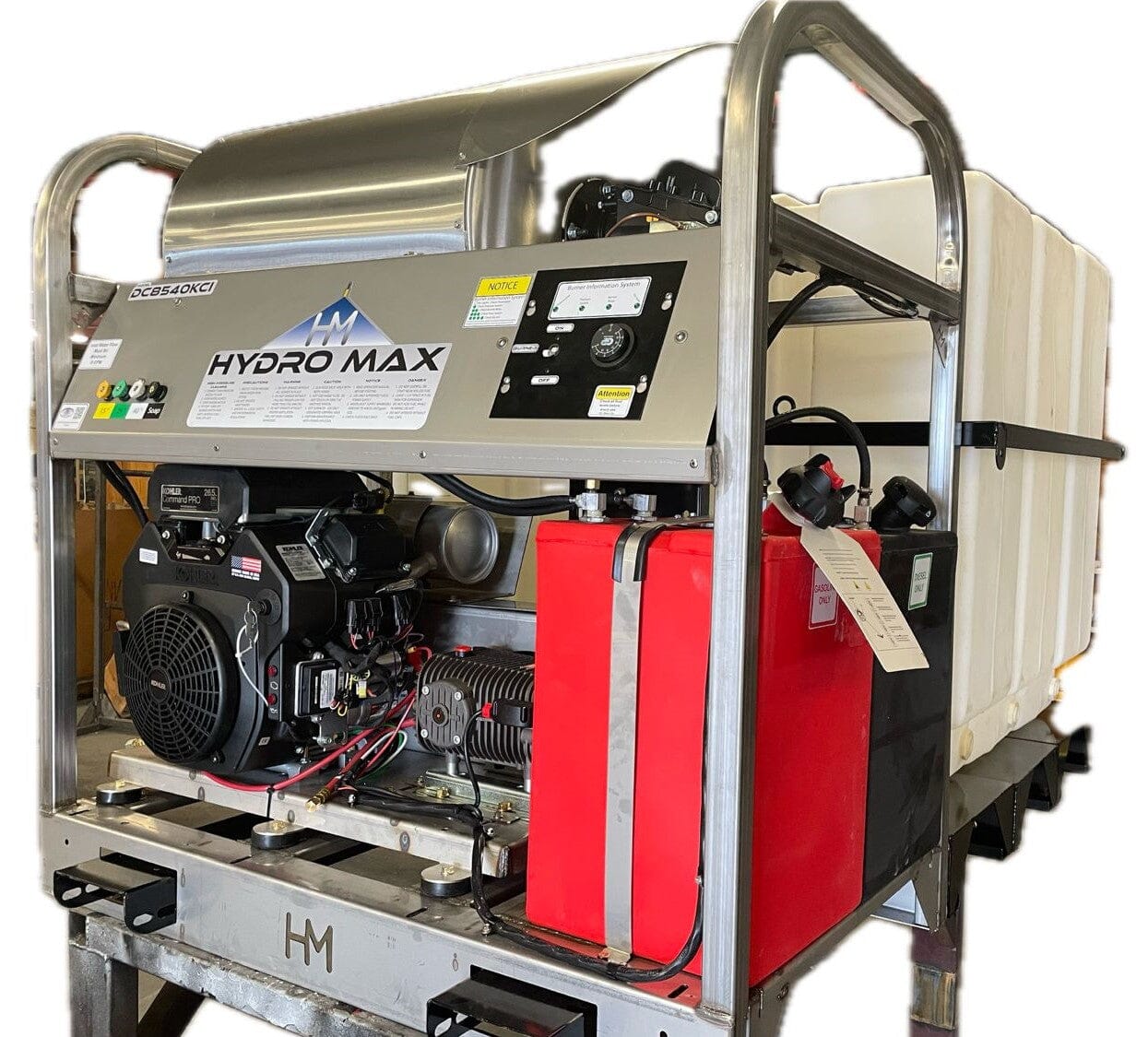

Note: Photos are stock photos for this model. This unit is build with a Kohler engine -which might be different from the image. Specs are as listed above. Pressure/Volumes are maximum(including spike).
