Description
Hydro Max Series Trailer Packages

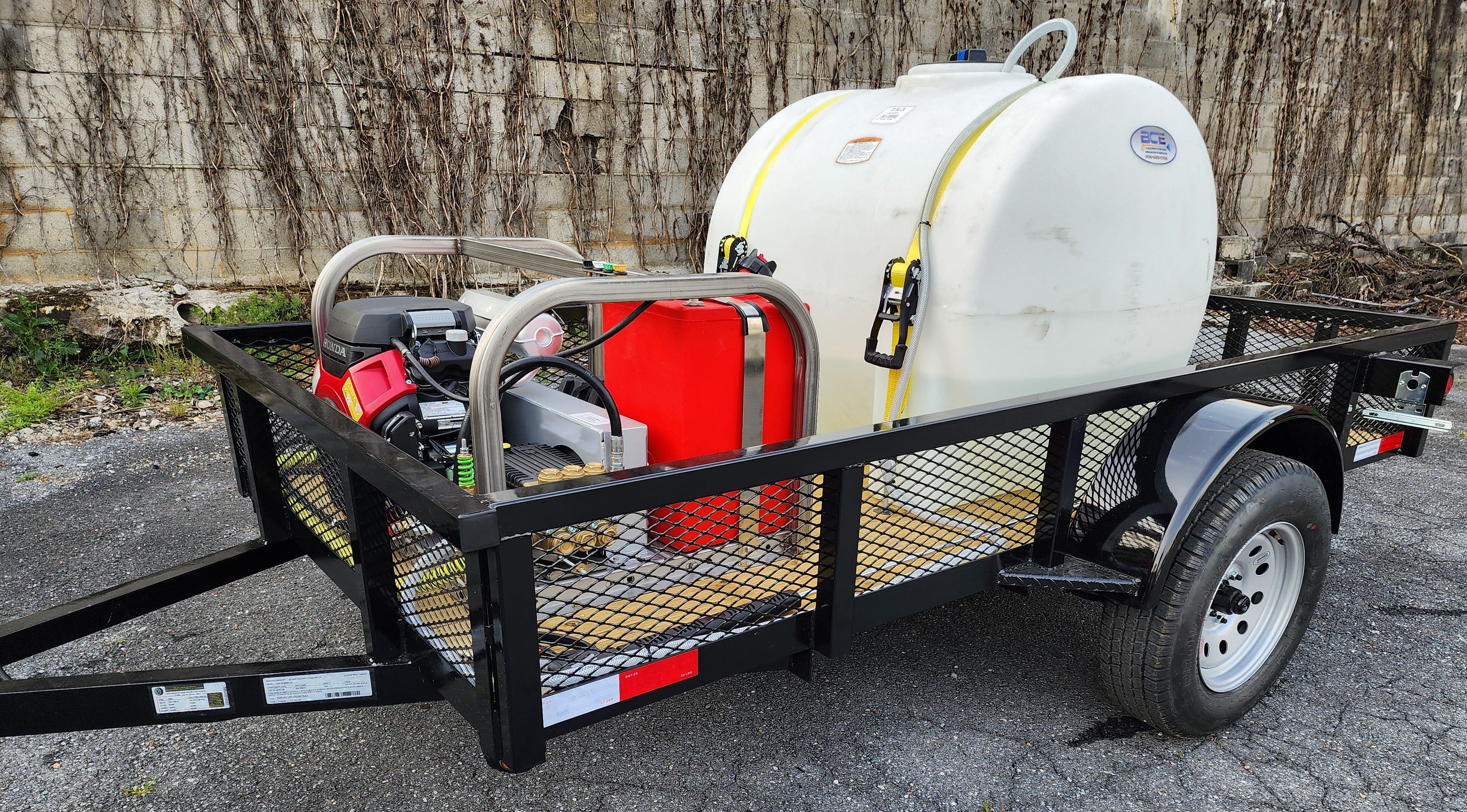

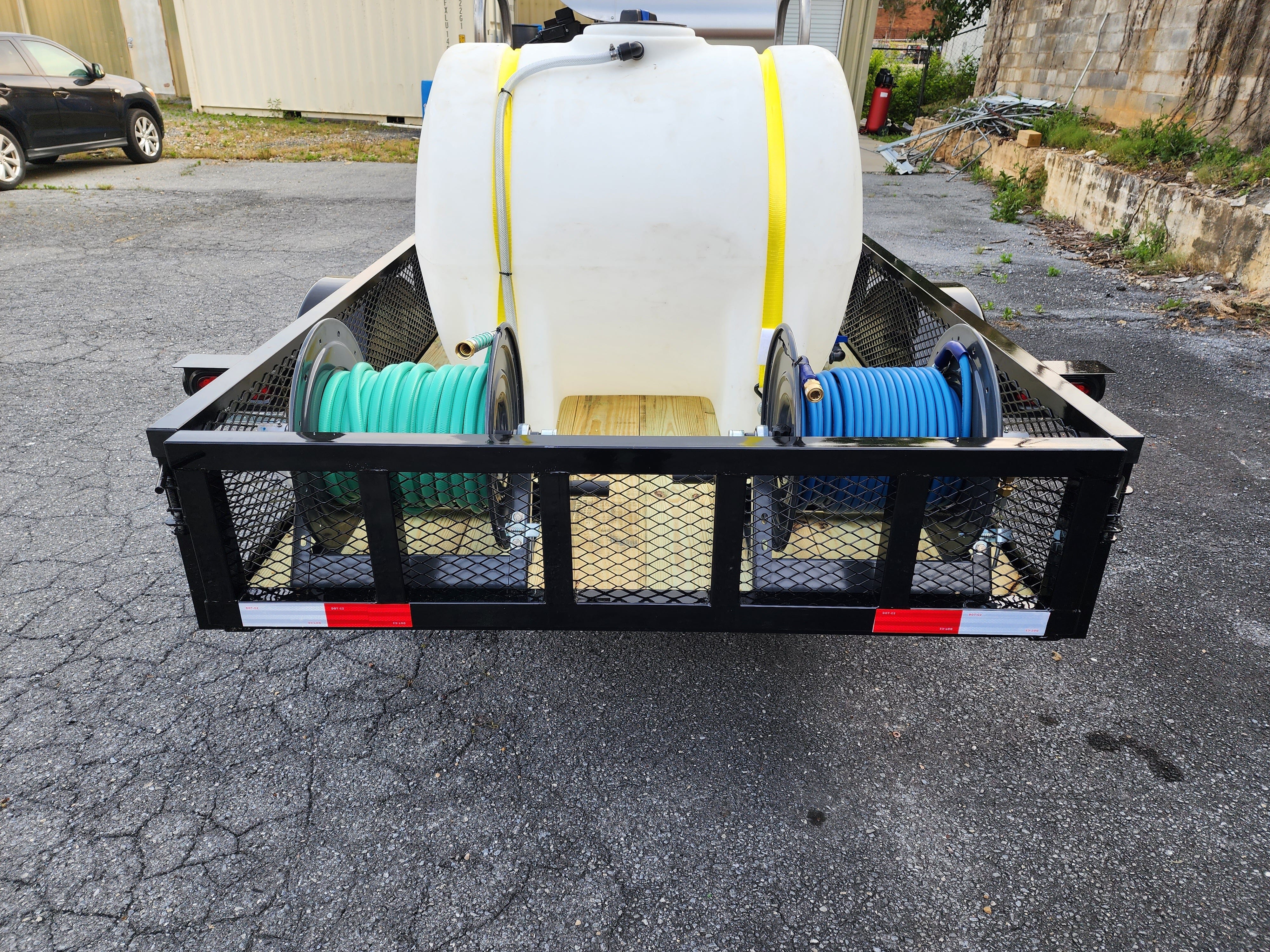

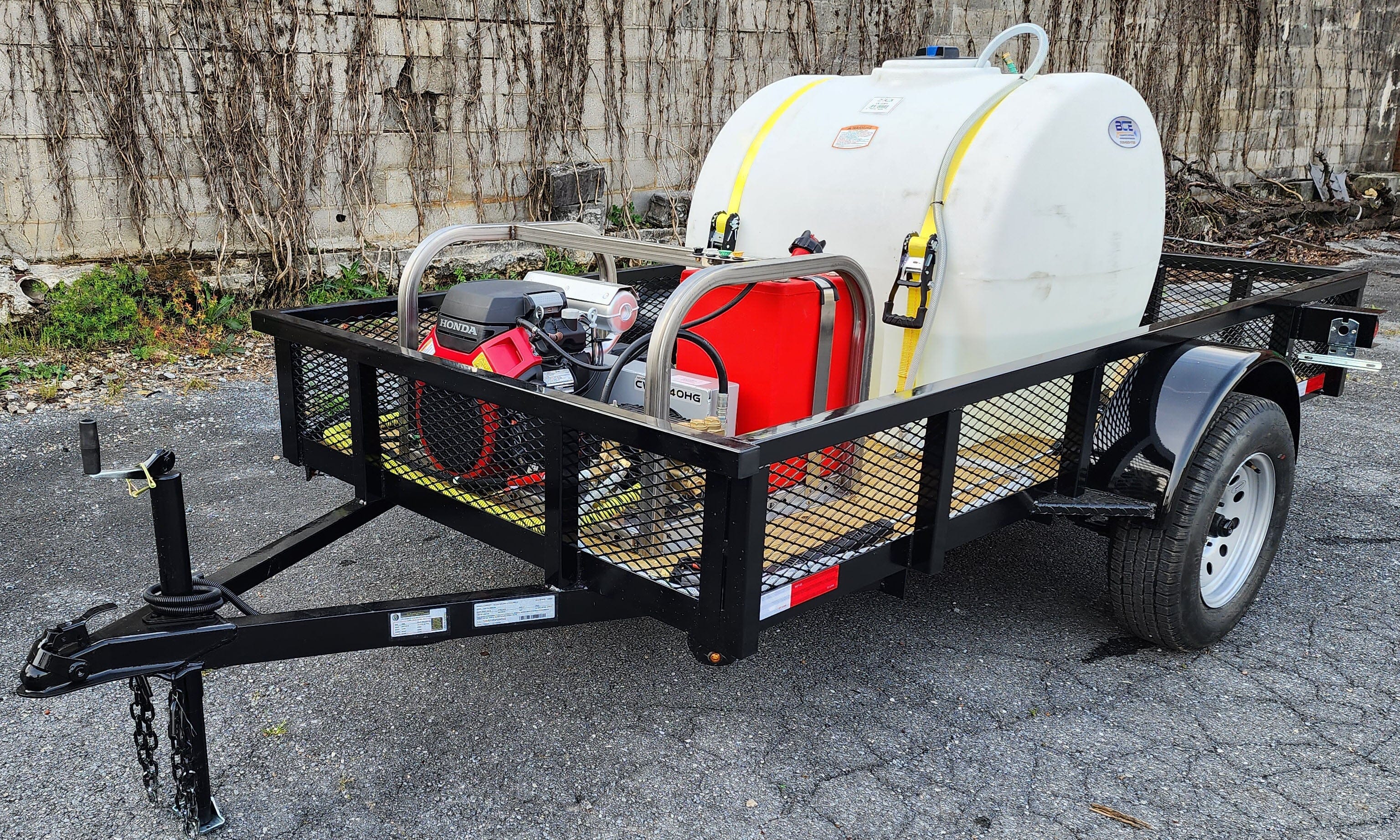

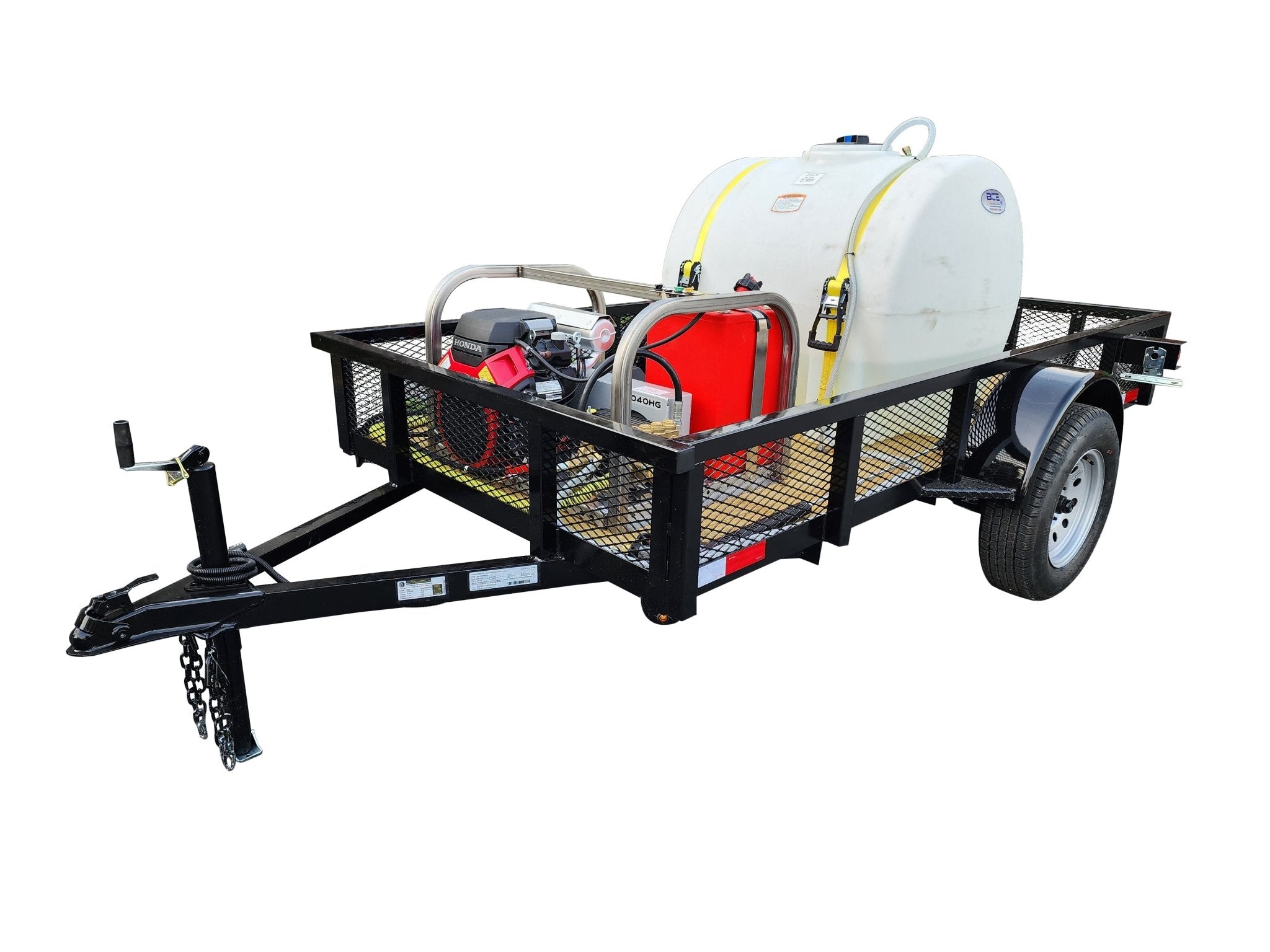

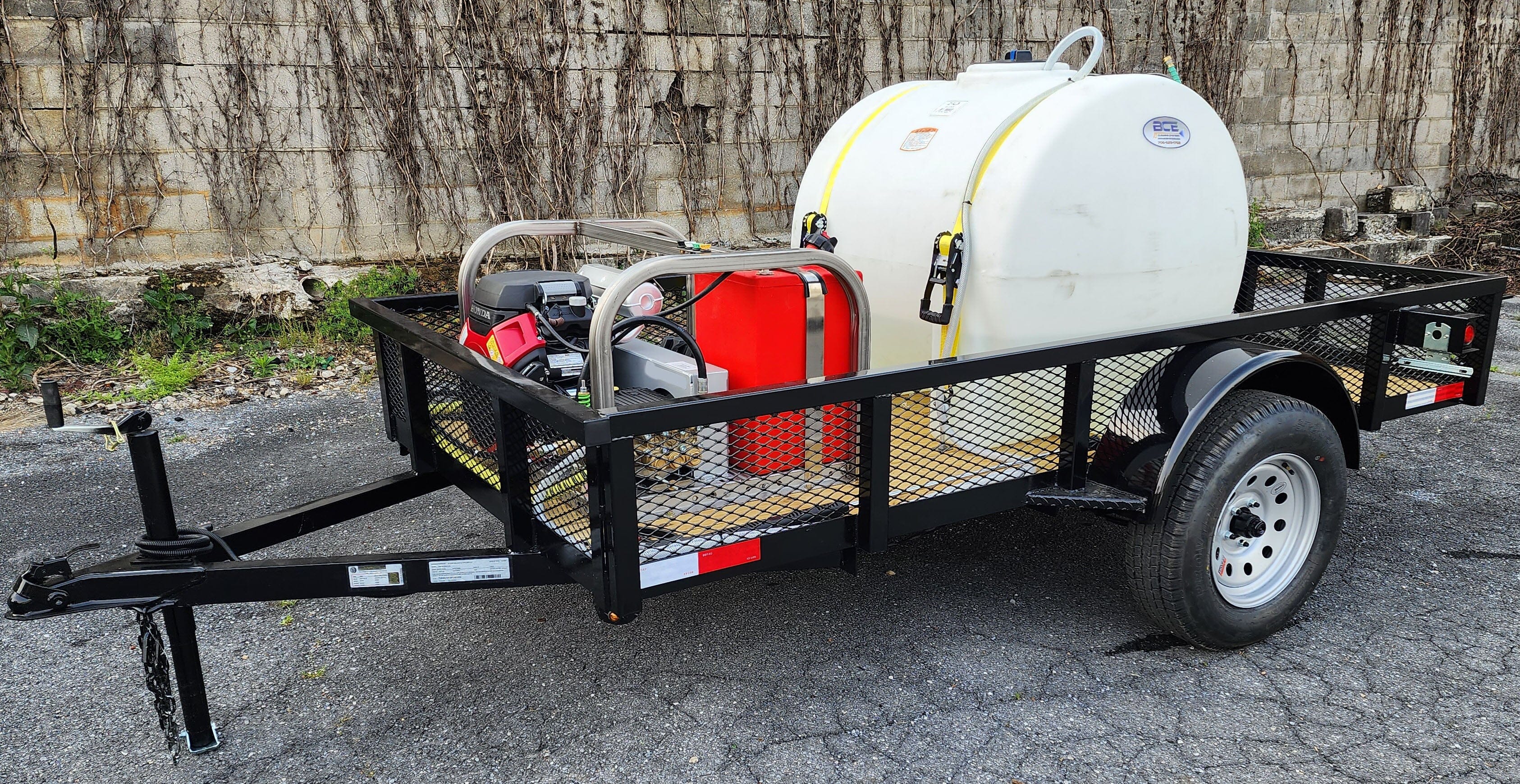

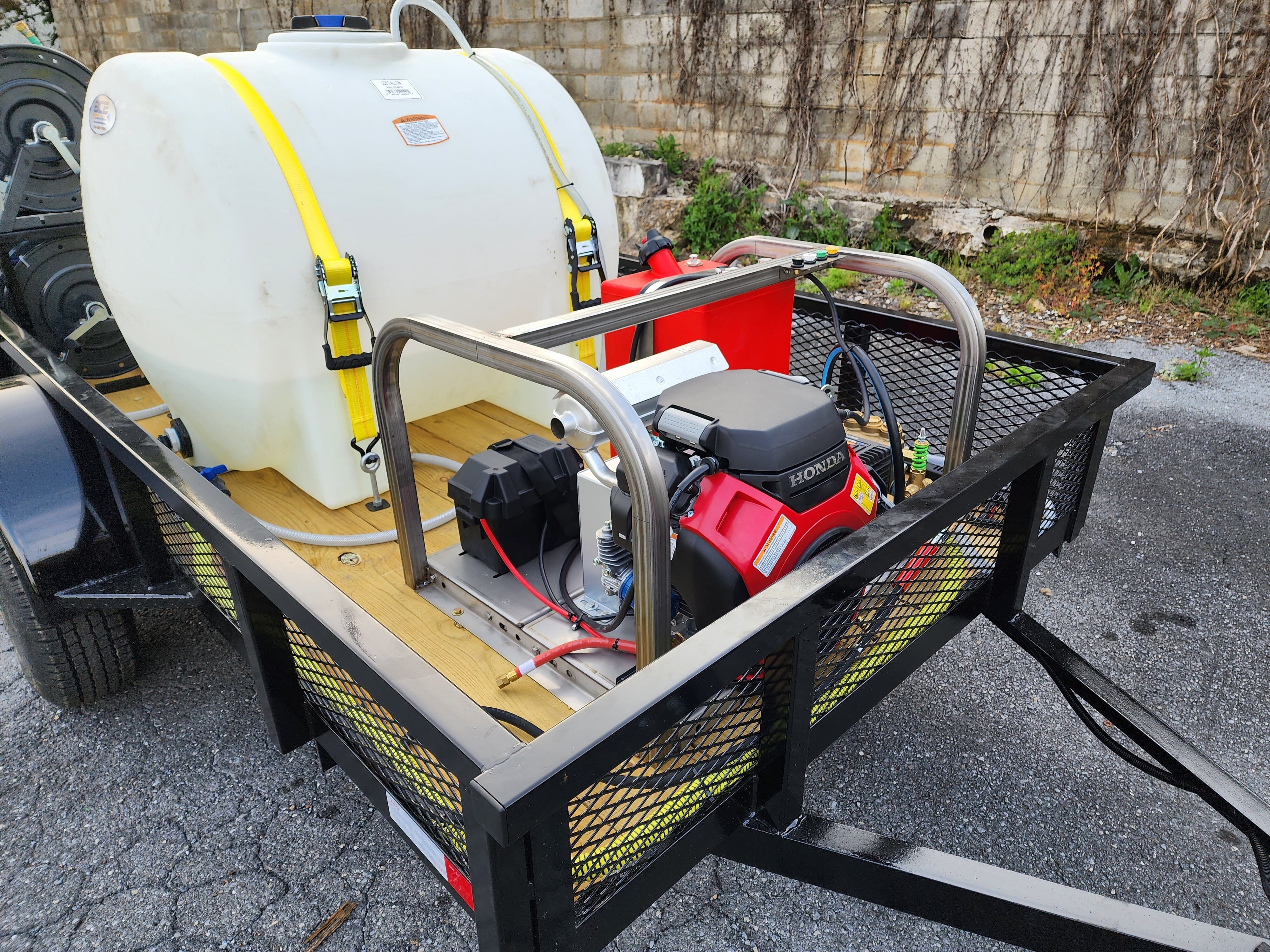

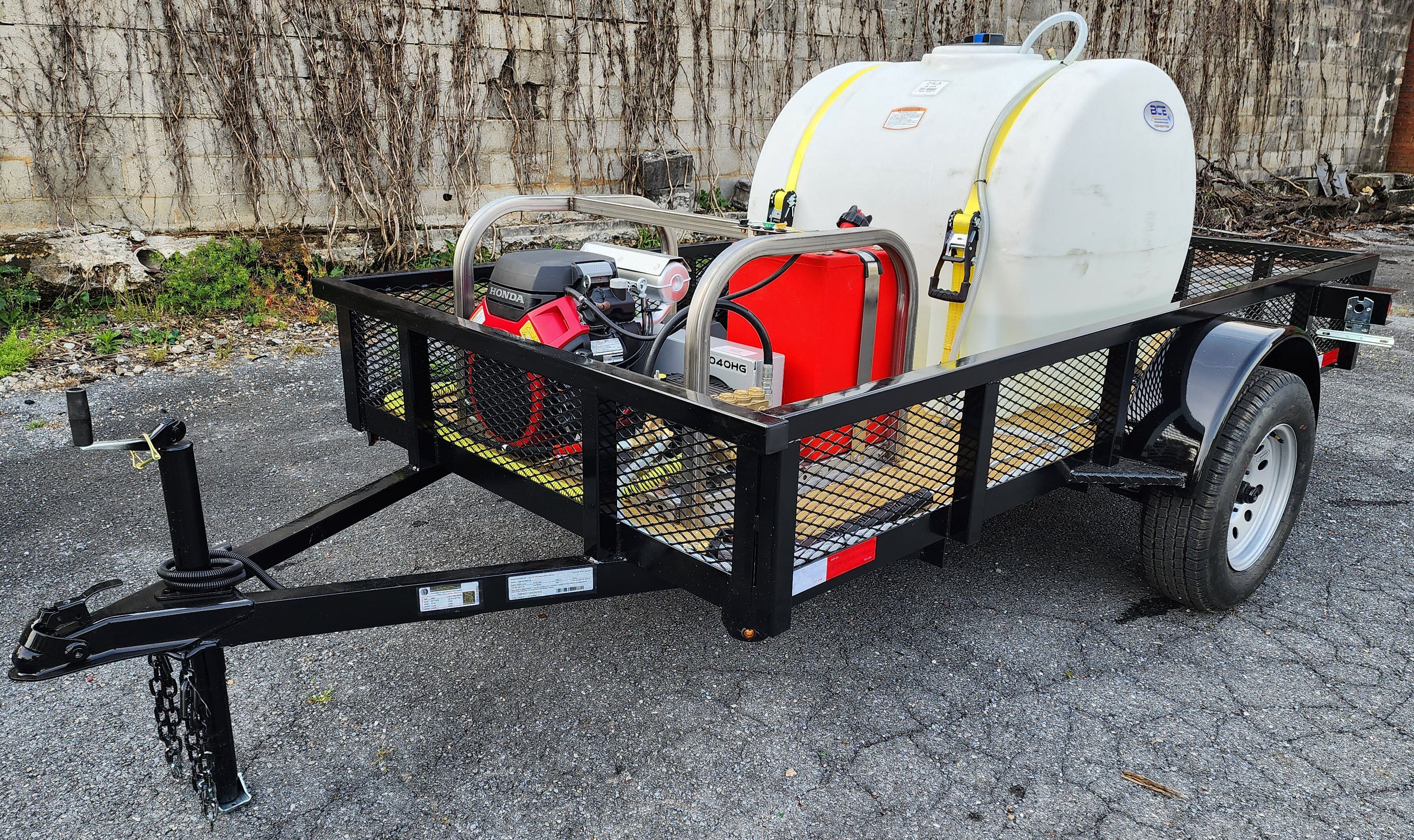

Complete trailer package setup with a Hydro-Max CW6040HG pressure washer unit and a 225Gal water tank, fully plumbed and tested, ready to go.
Performance Specifications
|
Metric |
Specification |
|
Flow Rate |
5.6 GPM max |
|
Pressure |
3600 PSI |
|
Dimensions |
33"L x 28"W x 24"H |
|
Weight |
Approx. 310 lbs |
Technical Product Specifications
|
Component |
Details |
|
Engine |
Honda GX630 Electric Start 17A Engine |
|
Pump |
General Pump Assembly |
|
Frame & Housing |
Extreme Duty Stainless Steel Frame |
|
Tank |
11 gallon fuel tank |
Specs listed are +/- 10%
Trailer Specifications
- 5'x10' Single axle trailer- New tires/wheels, 3500lb axles, 2" treated wood floor, heavy duty frame construction
- 225 gallon water tank- with float valve installed, prevents overfill- bypass returned to tank
Accessories included
- ✅ 1" plumbing with water filter between tank and pressure washer
- ✅ 100' 4000psi rated Non-Marking Pressure Hose
- ✅ 100' 5/8" Water Hose
- ✅ Pressure Hose Reel
- ✅ Water Supply Hose Reel
- ✅ 48” Single Lance Wand with Trigger Gun
- ✅ Quick-Connect Nozzle Set (soap nozzle, 15°, 25°, 40°)
- ✅ Chemical Injector for downstream application
Options:
- 25 gallon Chem. tank
- Aluminum Toolbox
Photos may not reflect the exact model. Variations may occur based on engine, pump and trailer configurations.
