Description

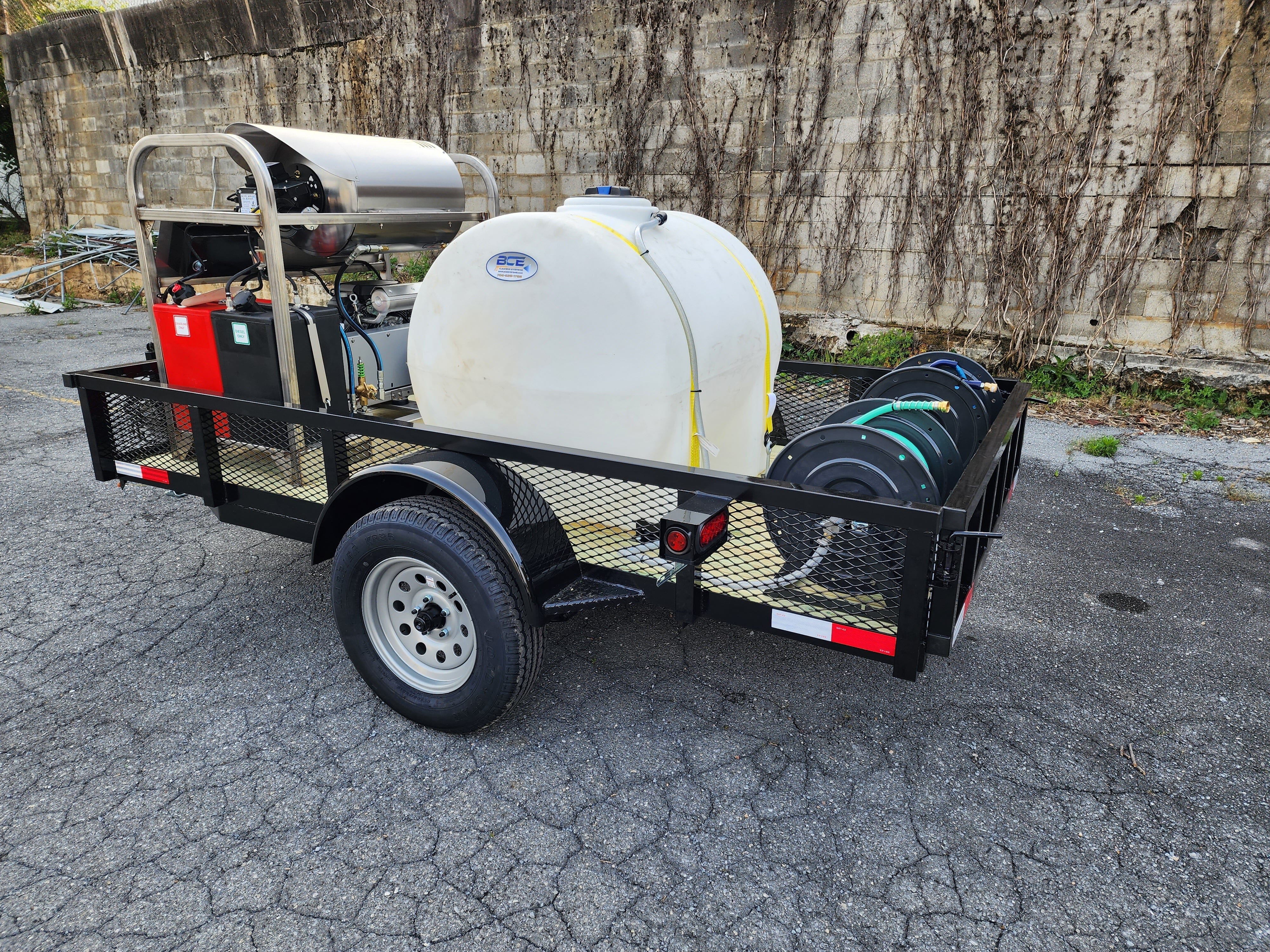

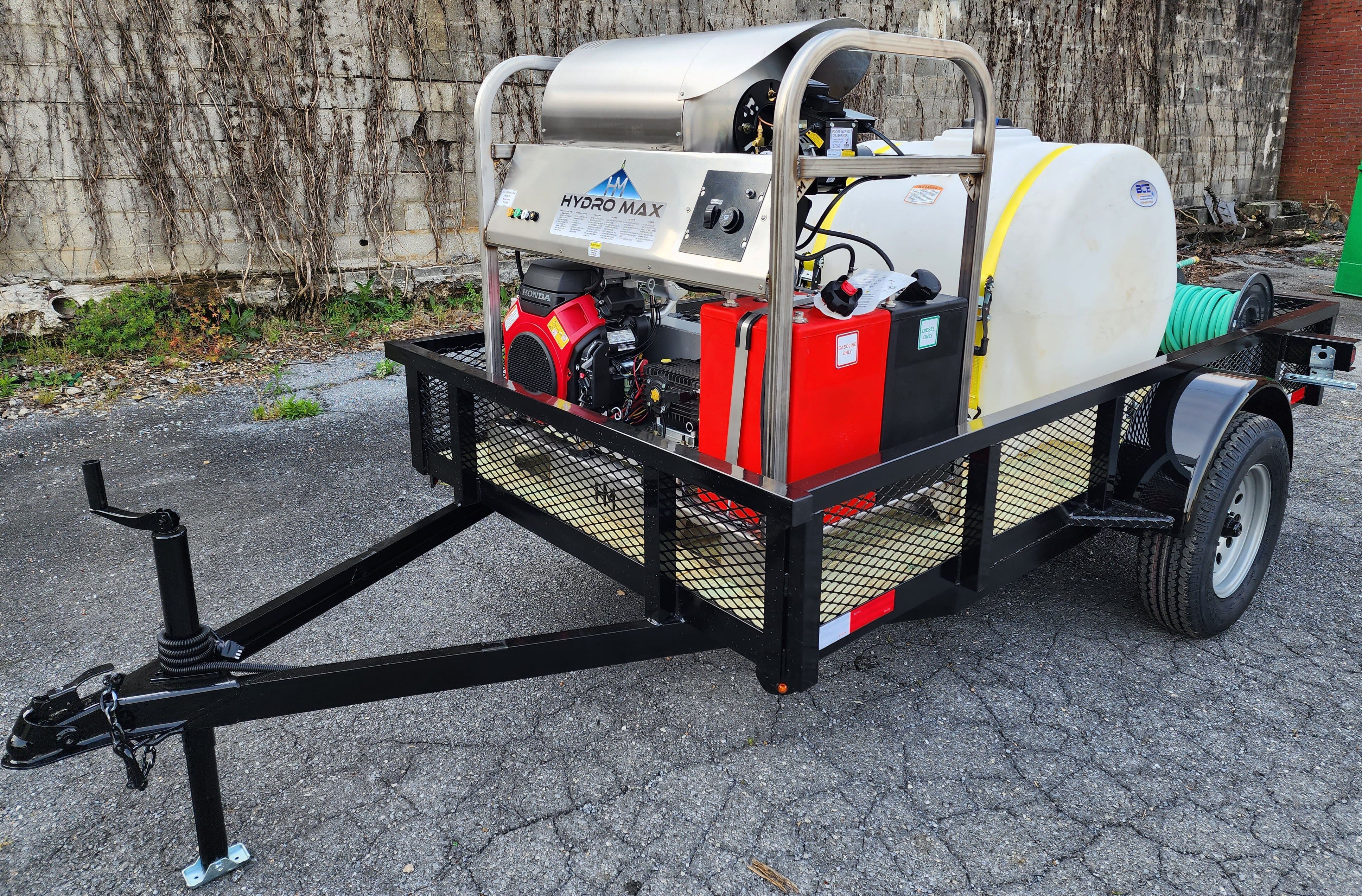

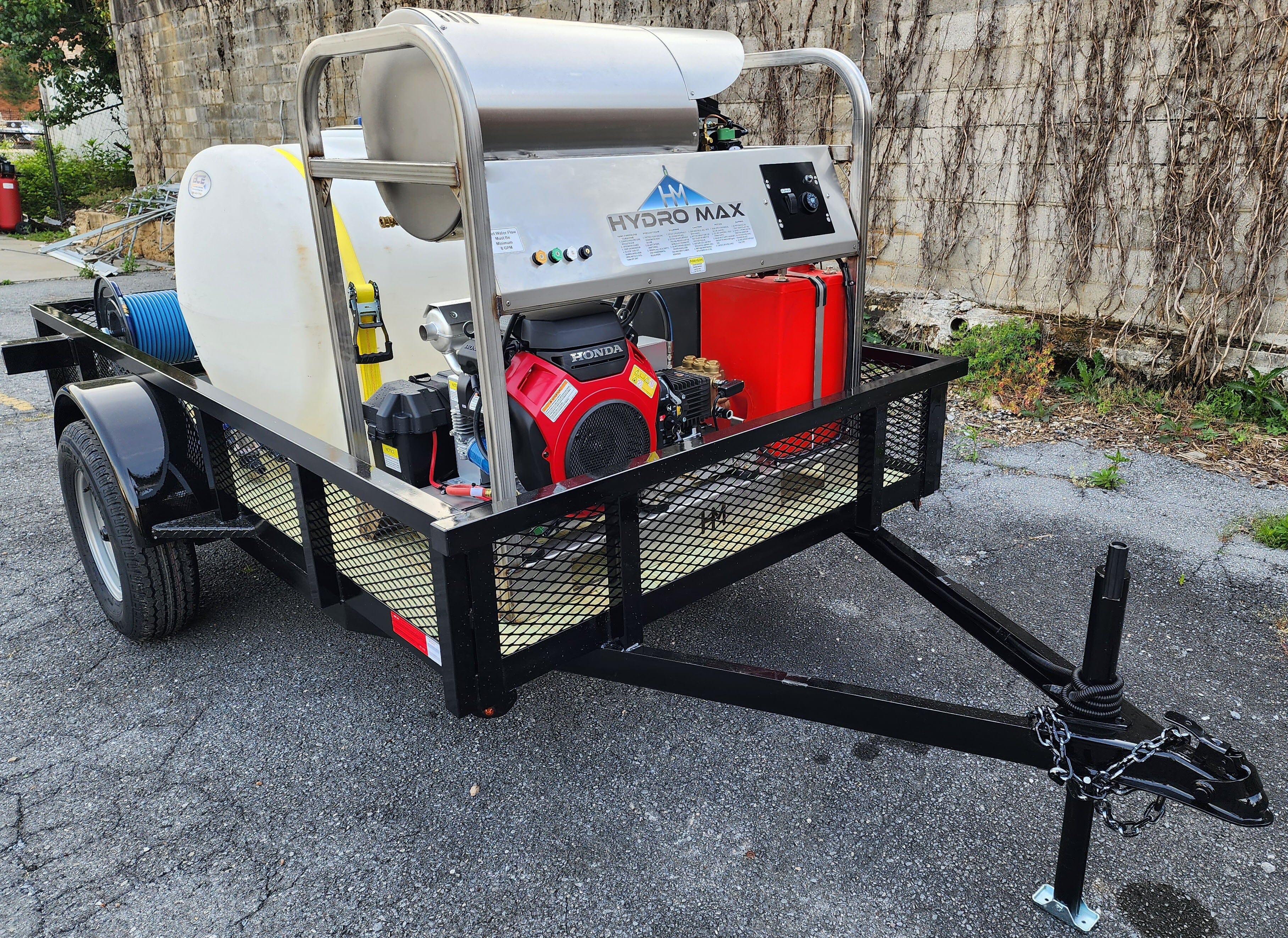

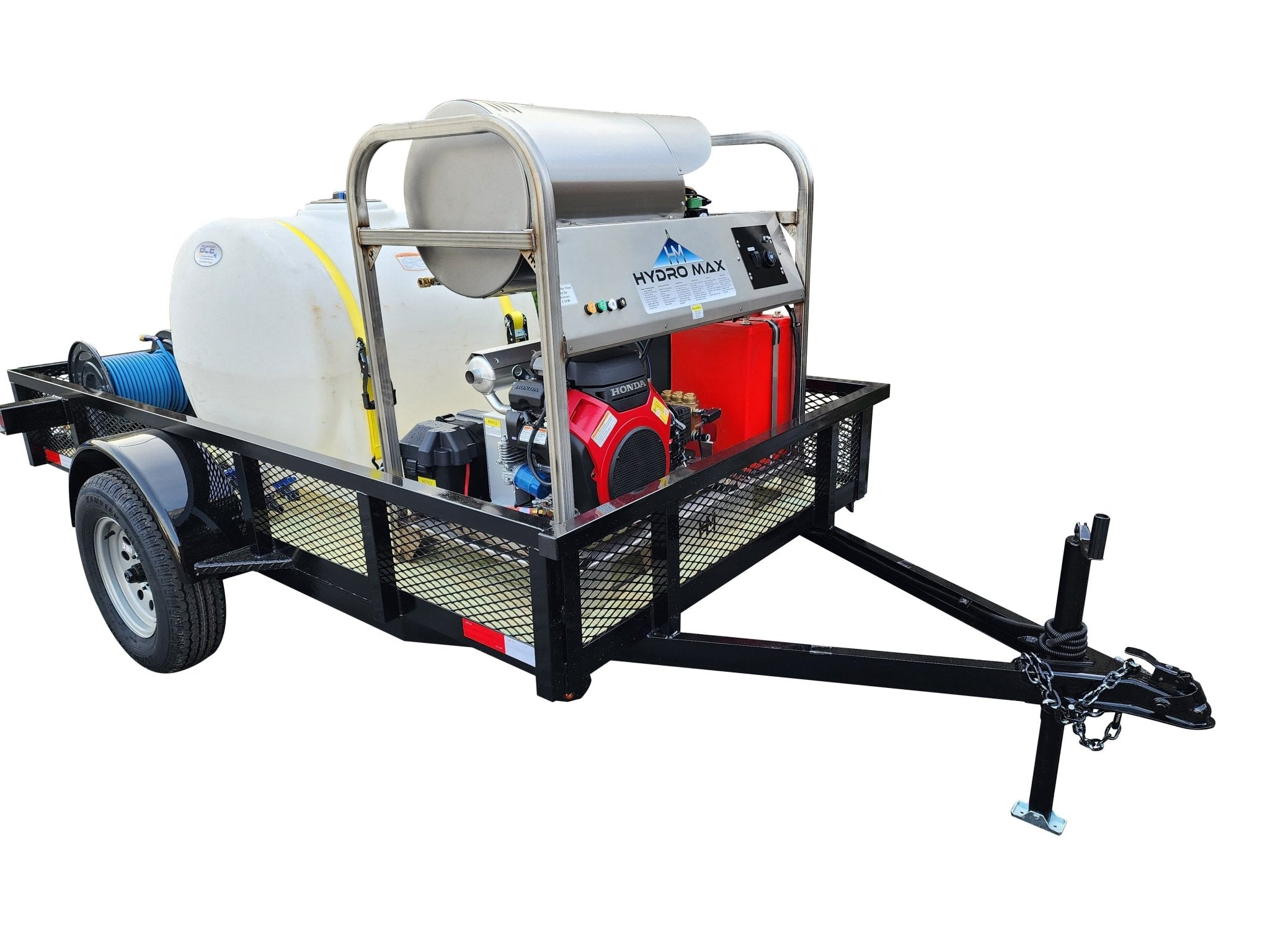

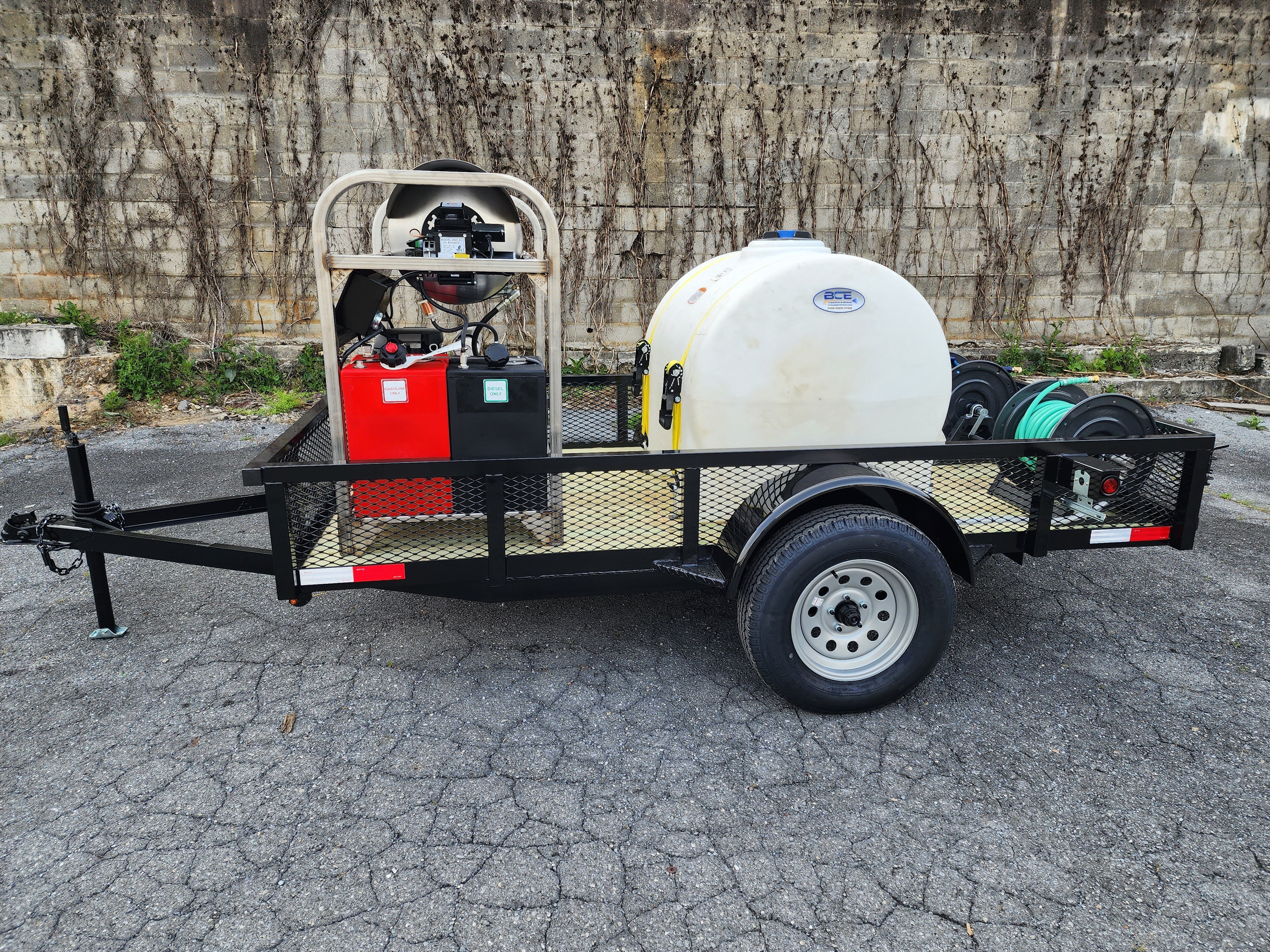

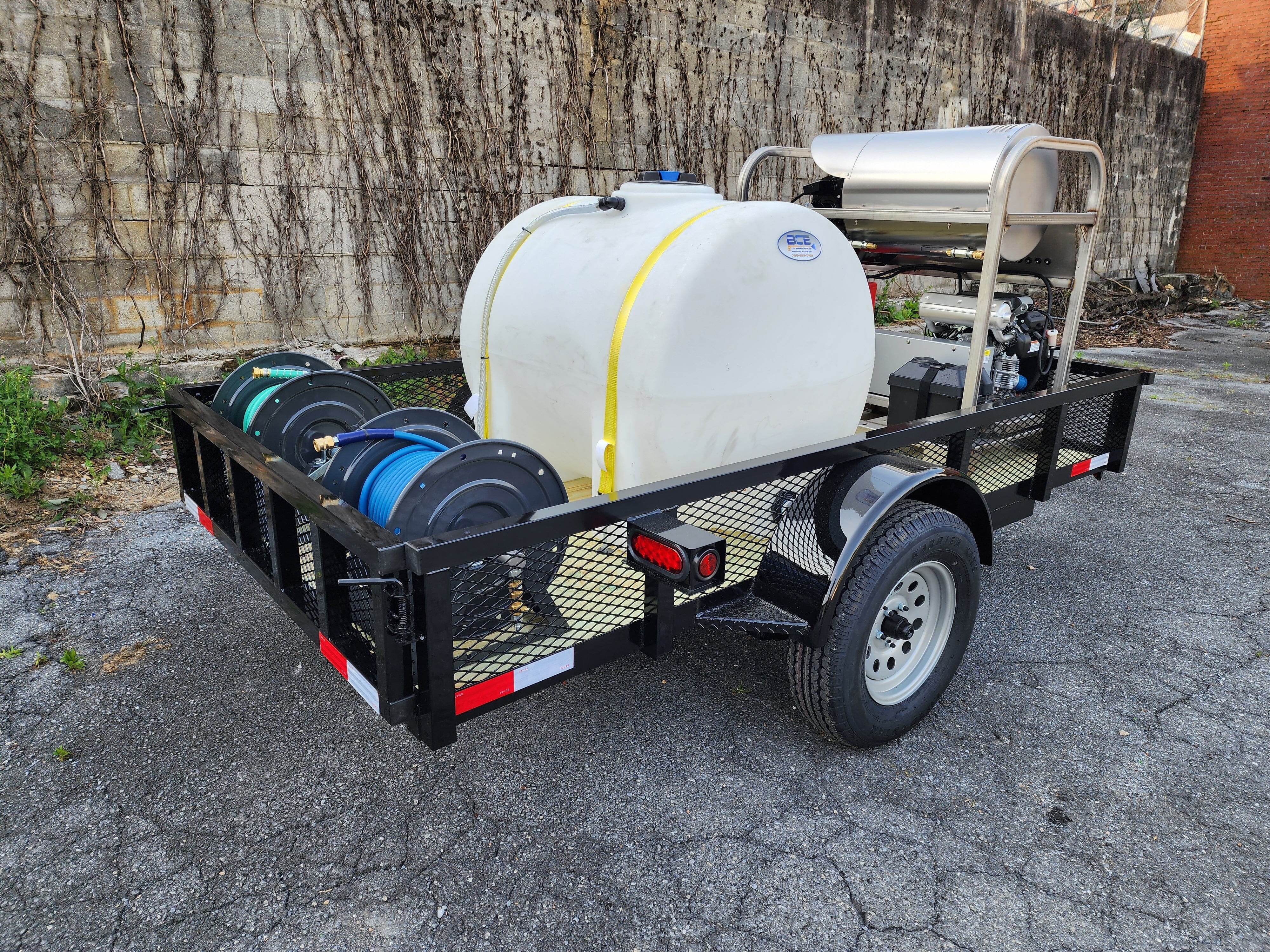

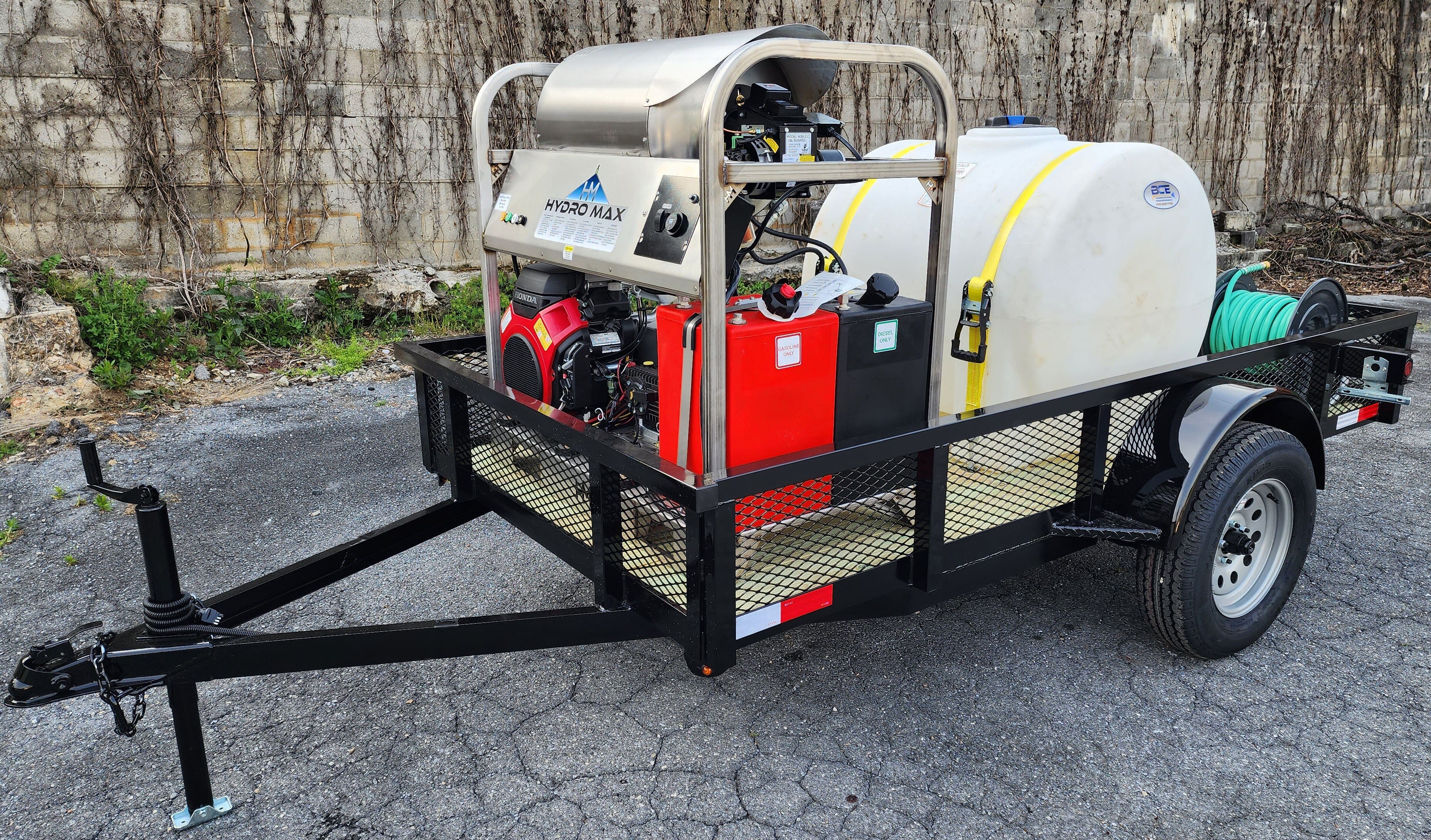

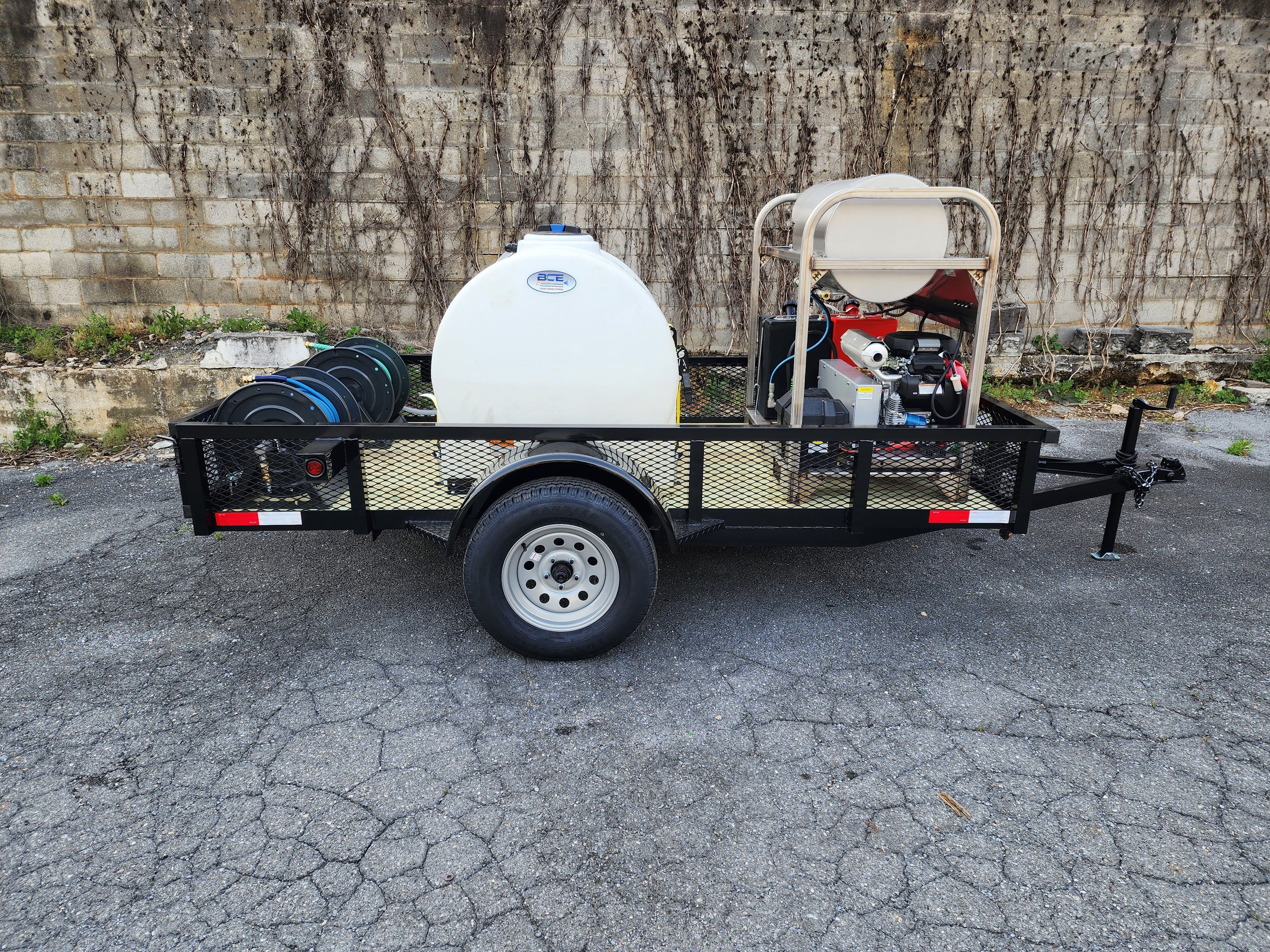

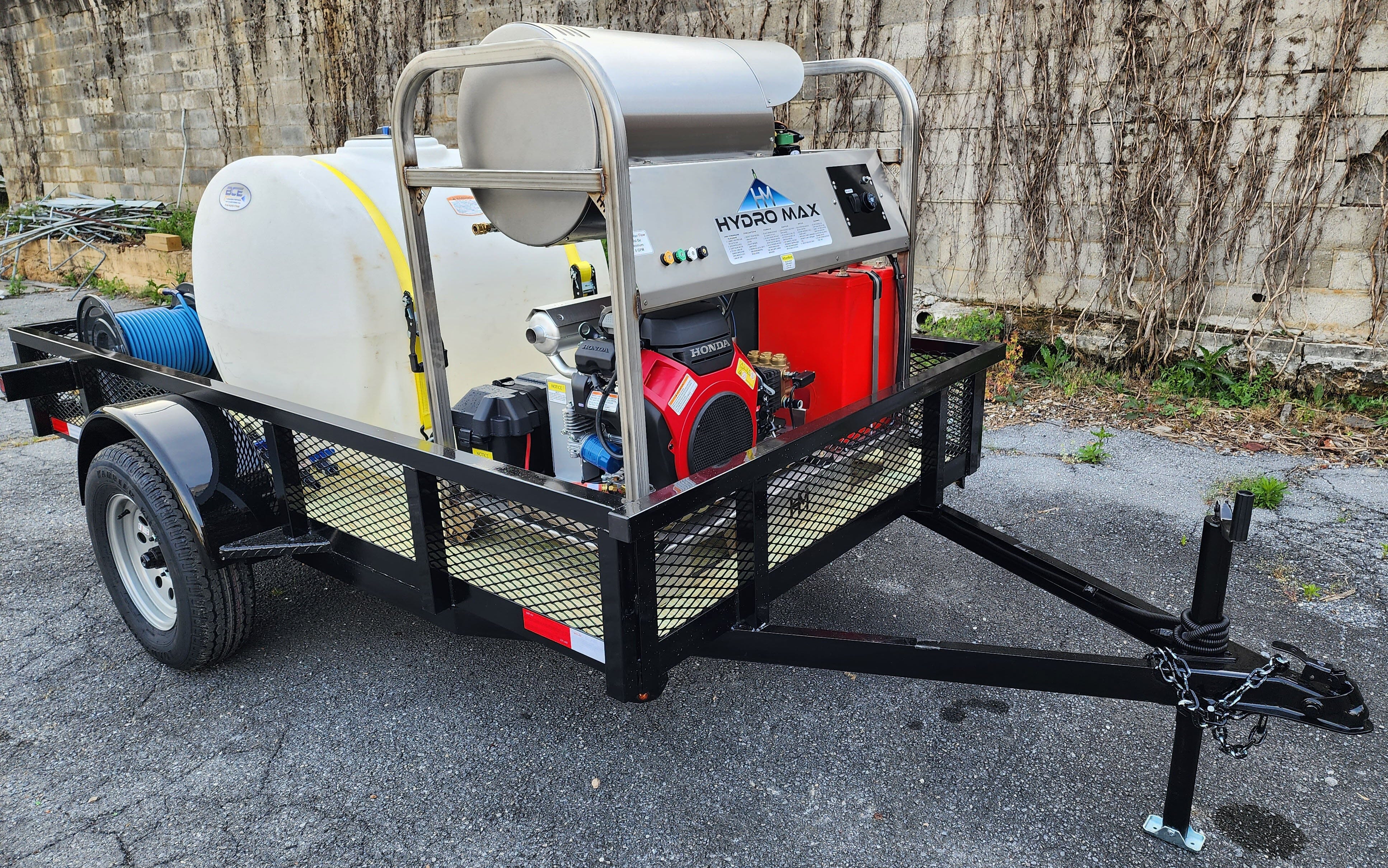

Hydro Max - 8gpm @ 3000psi Hot Water Trailer Package - Single Axle
Complete trailer package setup with a Hydro Max DC8030HG pressure washer unit and a 225Gal water tank, fully plumbed and tested, ready to go.
Performance Specification
| Metric | Specification |
| Flow Rate | 8 GPM |
| Pressure | 3000 PSI |
| Dimensions | 46" L x 48" H x 28" D |
| Weight | Approx. 600 lbs |
Technical Specifications
| Component | Details |
| Engine | Honda GX630 17A Commercial-Grade Engine |
| Pump | General Pump |
| Burner | DC-12V Burner |
| Coil | High-Efficiency Heat Coil |
| Fuel System | 11 Gal Diesel Tank, 11 Gal Gas EPA- Compliant XLPE Tank |
| Drive System | Belt Drive with High HP Belts |
| Frame & Housing | Extreme Duty Stainless Steel Frame |
| Electrical | 12VDC Lighted Indicator Panel |
| Temperature Control | Adjustable Thermostat |
Trailer Specifications
- 5'x10' Single axle trailer- New tires/wheels, 3500lb axles, 2" treated wood floor, heavy duty frame construction
- 225 gallon water tank- with float valve installed, prevents overfill- bypass returned to tank
Accessories included
- ✅ 1" plumbing with water filter between tank and pressure washer
- ✅ 100' 4000psi rated Non-Marking Pressure Hose
- ✅ 100' 5/8" Water Hose

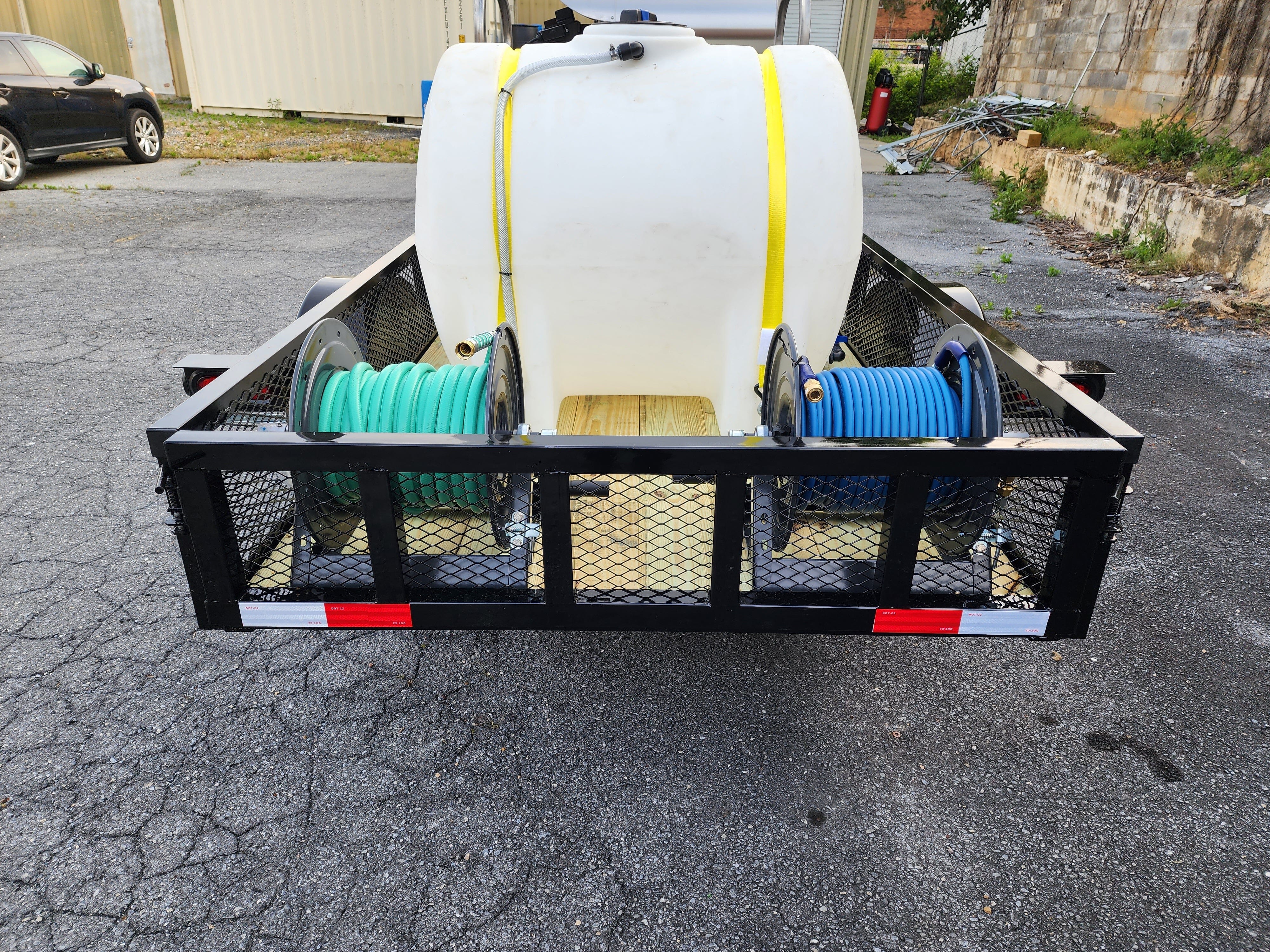

- ✅ Pressure Hose Reel
- ✅ Water Supply Hose Reel
- ✅ 48” Single Lance Wand with Trigger Gun
- ✅ Quick-Connect Nozzle Set (soap nozzle, 15°, 25°, 40°)
- ✅ Chemical Injector for downstream application
- ✅ Hour Meter for maintenance tracking
- ✅ Grommet Nozzle Holder, Thermostat
Options:
- 25 gallon Chem. tank
- Aluminum Toolbox
Specs listed are +/- 10%. Photos may not reflect the exact model. Variations may occur based on engine, pump and trailer configurations.
