Description

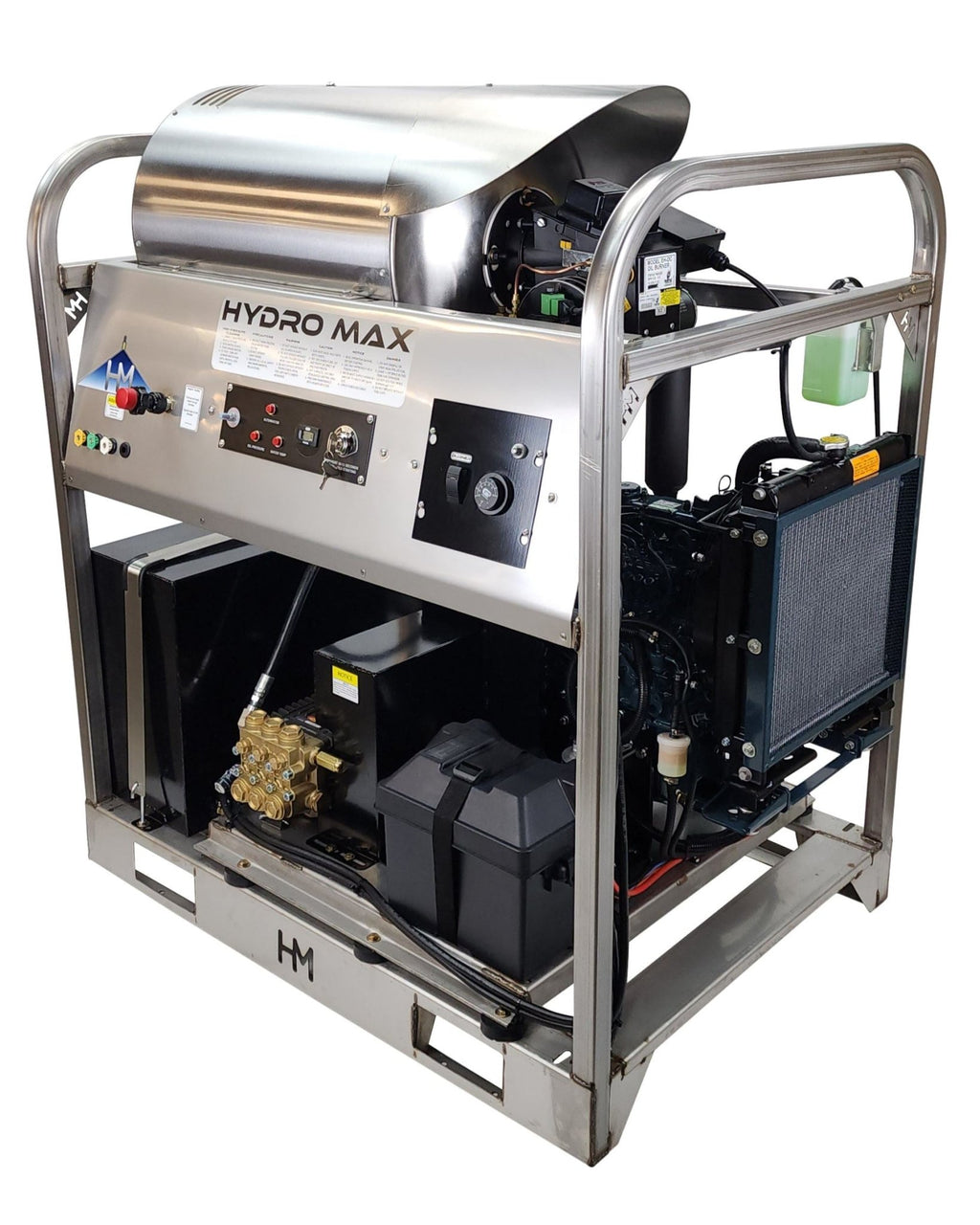

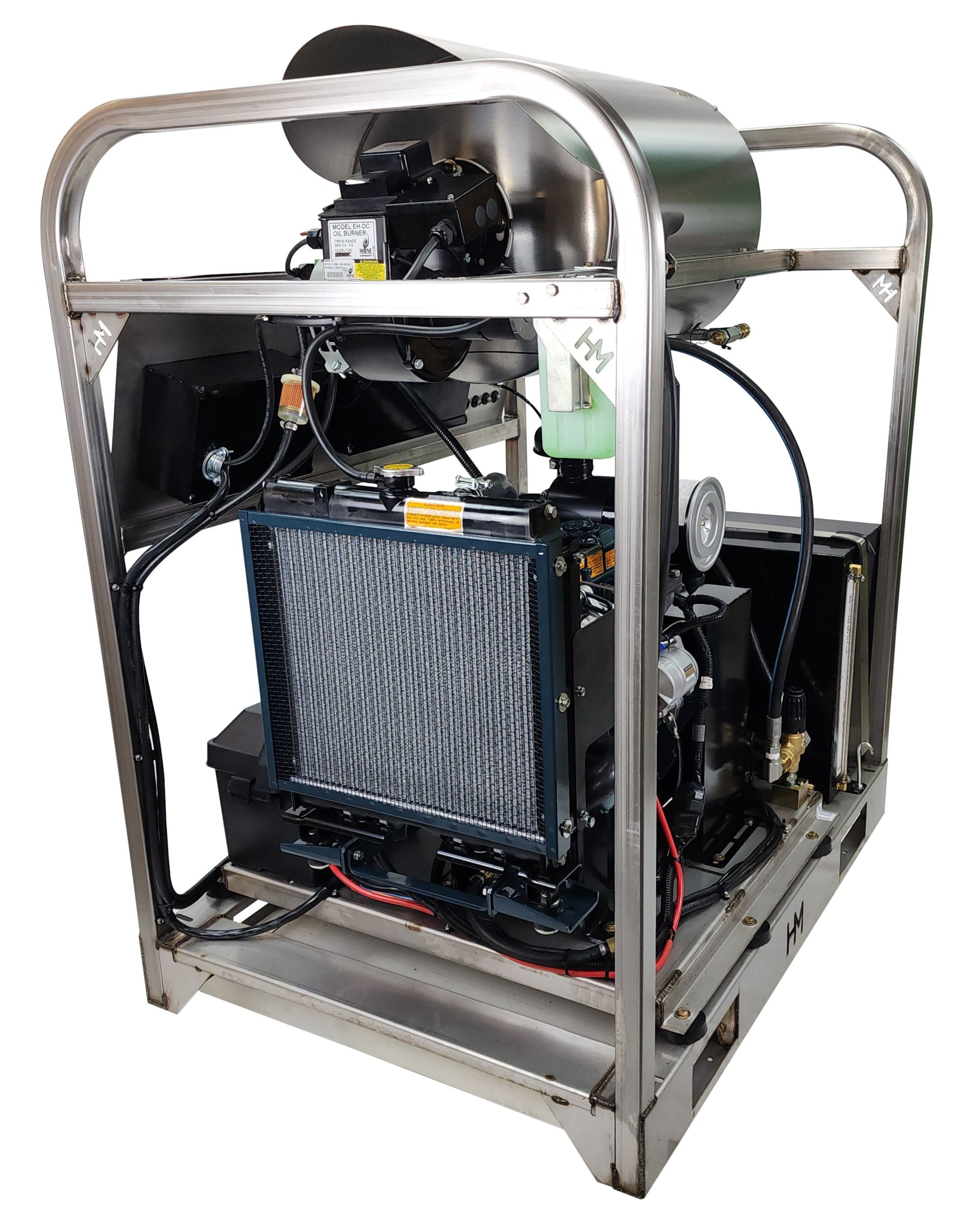

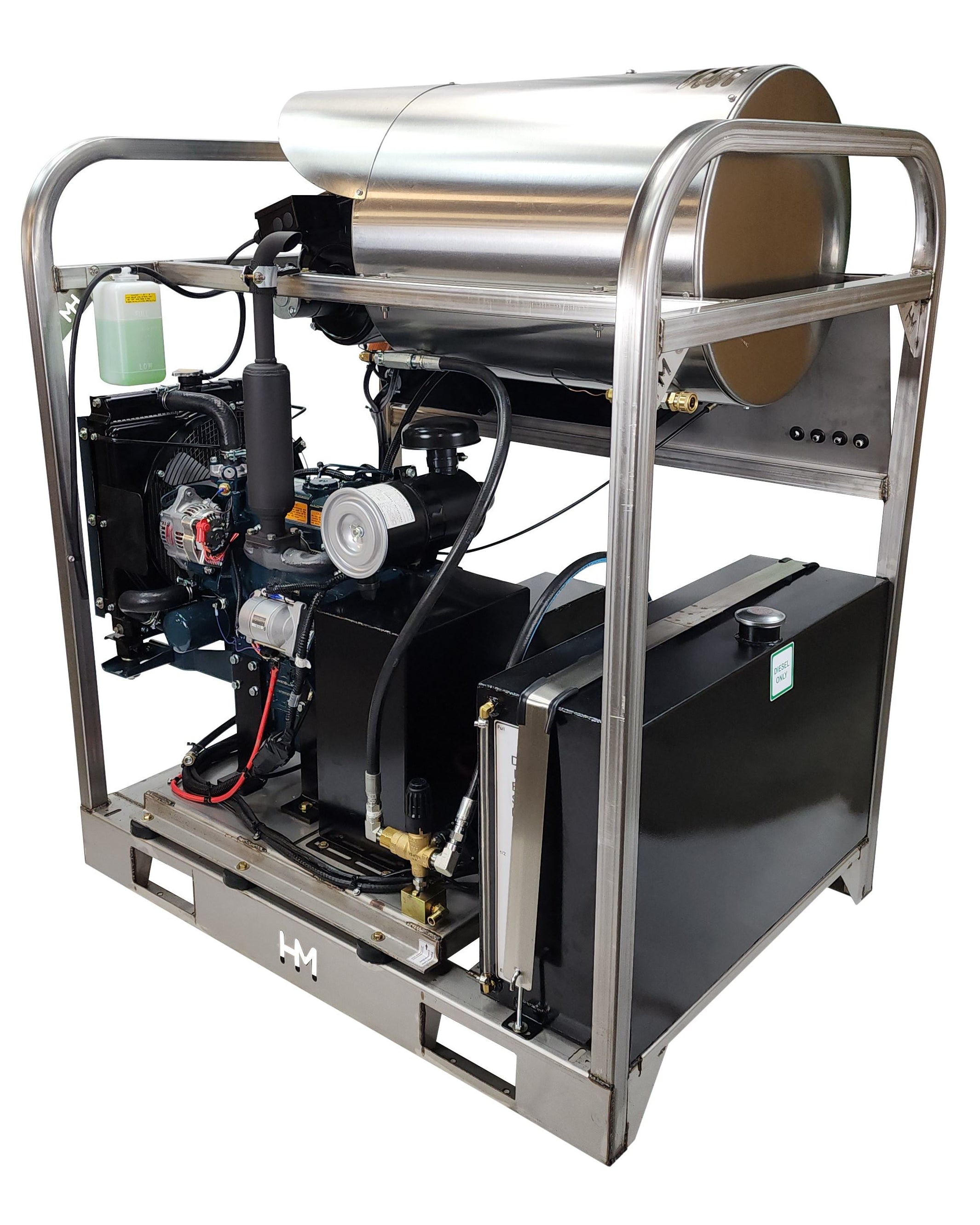

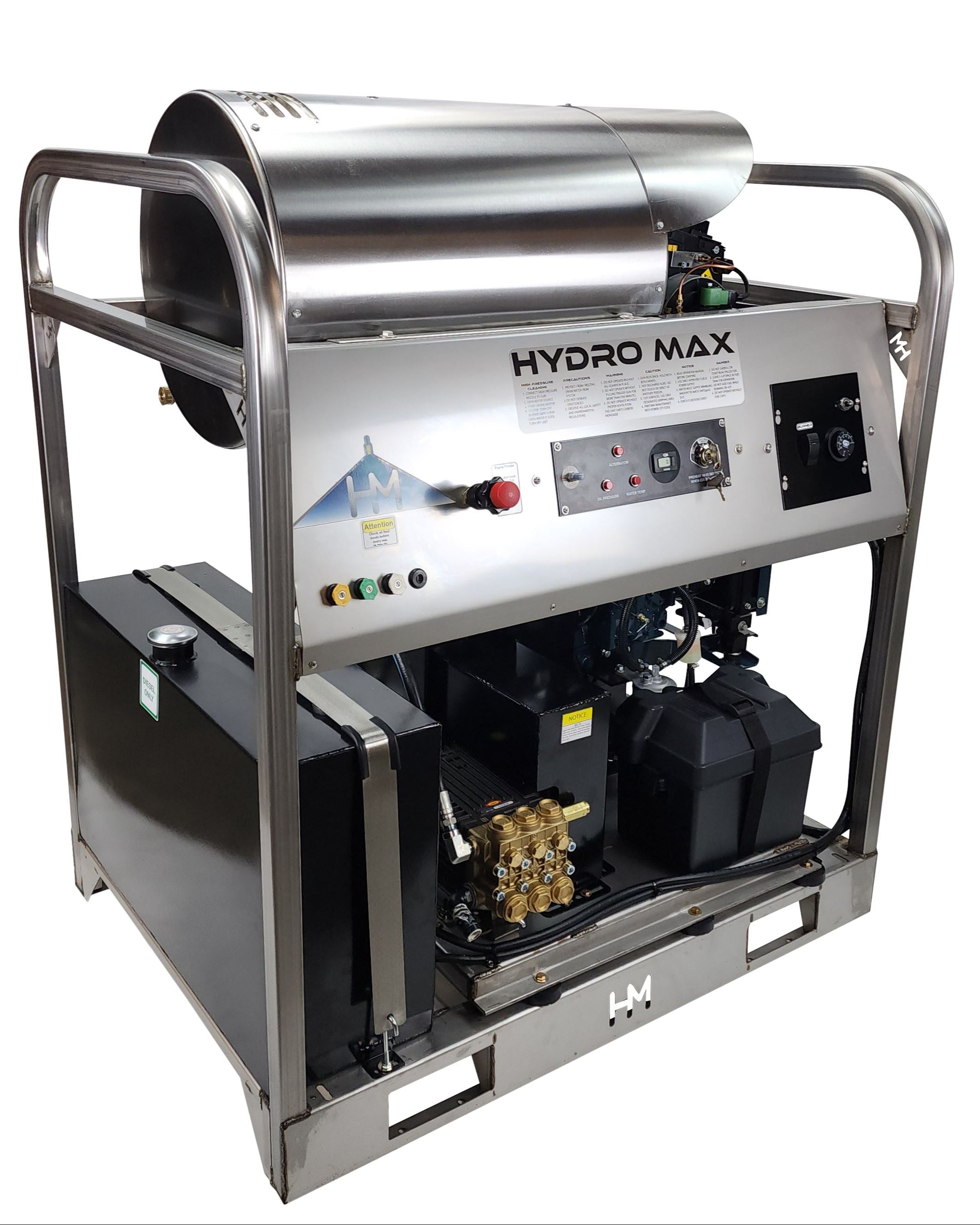

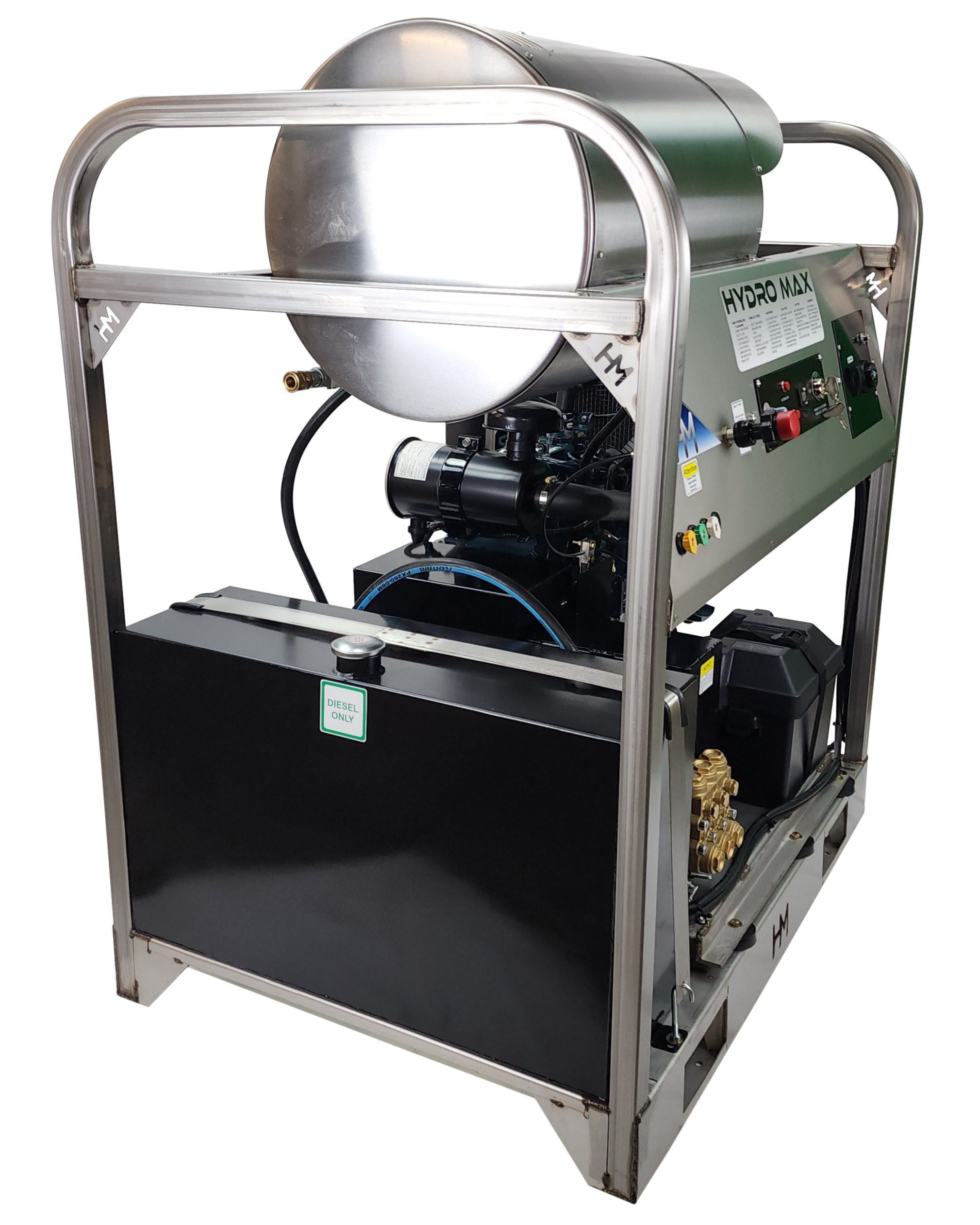

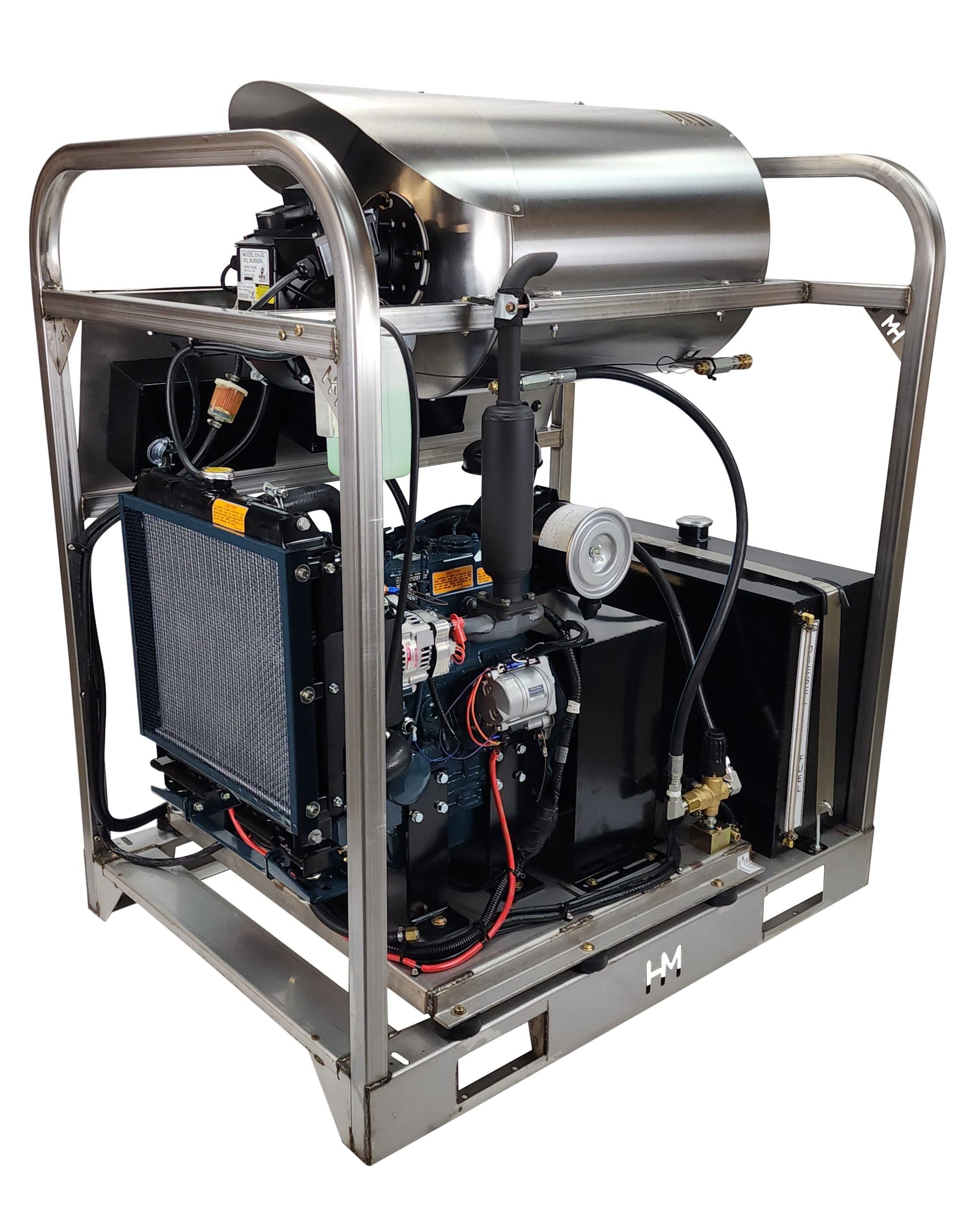

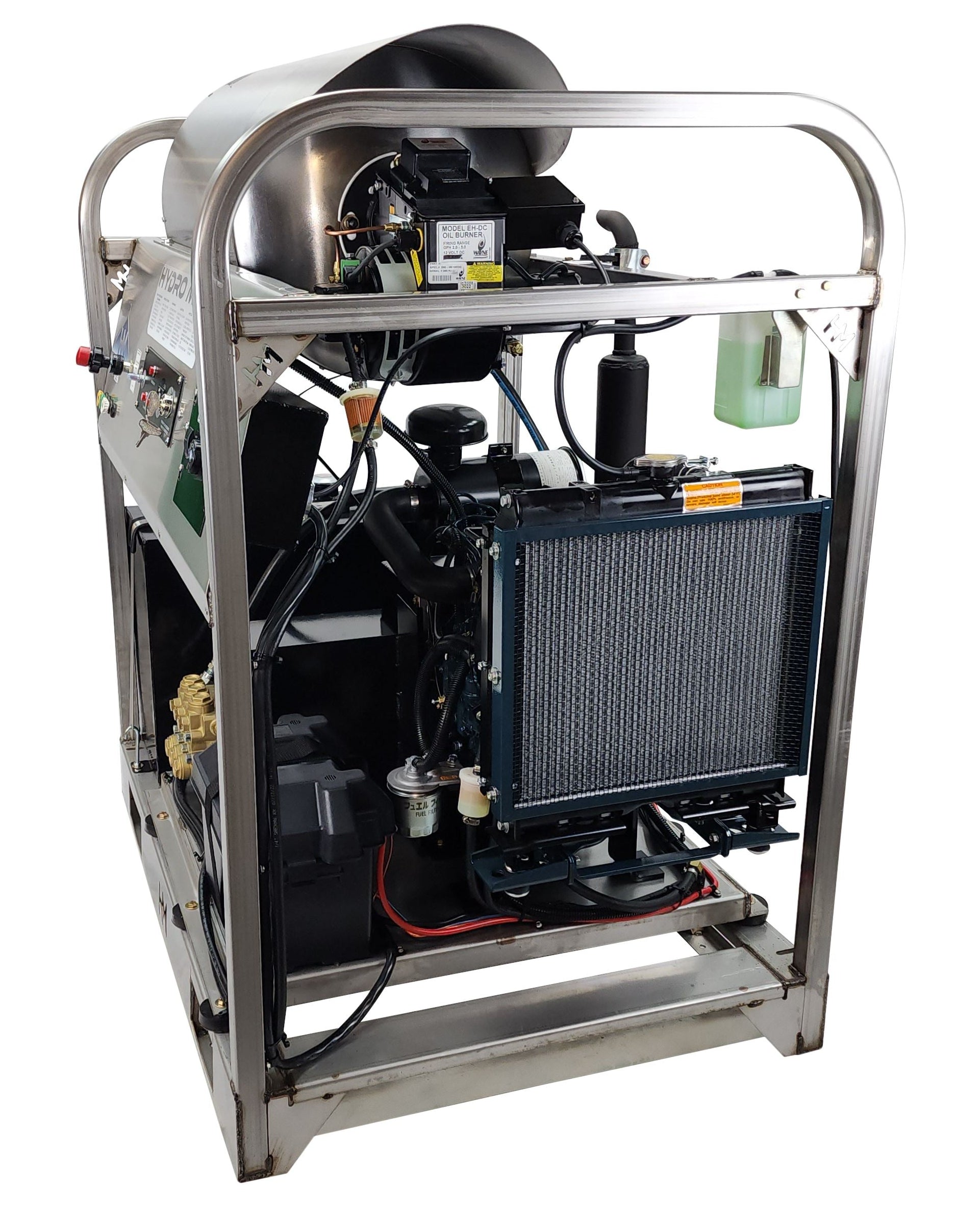

Hydro Max DCD10032KuG
Built for professional, industrial use, the Hydro Max DCD10032KuG delivers high-output cleaning performance with a Kubota D1105 Engine- Liquid Cooled and a belt‑drive General Pump.
Designed for durability and serviceability, it features efficient heat rise, an adjustable thermostat, stainless steel coil wrap/panels, and a weather‑tight electrical box. A heavy-duty stainless steel frame, easy oil drain, and included accessories enhance usability and simplify on-site operation, ensuring high productivity across construction, agriculture, manufacturing, and commercial cleaning applications.
Performance Specifications
|
Metric |
Specification |
|
Flow Rate |
10 GPM |
|
Pressure |
3200 PSI |
|
Temperature Control |
Adjustable Thermostat |
|
Dimensions |
46" L x 50" H x 34" D |
|
Weight |
Approx. 850 lbs |
Technical Product Specifications
| Component | Details |
|
Engine |
Kubota D1105B4 Diesel Engine |
|
Pump |
TSF2221 General Pump |
|
Burner |
DC-12V Burner |
|
Coil |
High-Efficiency Large Heater Coil |
|
Fuel System |
25 Gal Tank |
| Drive System |
High HP triple BX Belts |
|
Frame & Housing |
Extreme Duty Stainless Steel Frame |
|
Electrical |
12VDC Lighted Indicator Panel |
| Specs listed are +/- 10% |
Included Accessories
- ✅ 50 ft. 5000psi rated 1/2" Non-Marking Hose
- ✅ 48” Single Lance Wand with Trigger Gun
- ✅ Quick-Connect Nozzle Set (soap nozzle, 15°, 25°, 40°)
- ✅ Chemical Injector for downstream application
- ✅ Hour Meter for maintenance tracking
- ✅ Grommet Nozzle Holder
- ✅ Adjustable Thermostat
Photos may not reflect the exact model. Variations may occur based on engine and pump configurations. Please refer to the description above for specific model details.
Note: This unit is standard with 1/2" Pressure Hose
