Description

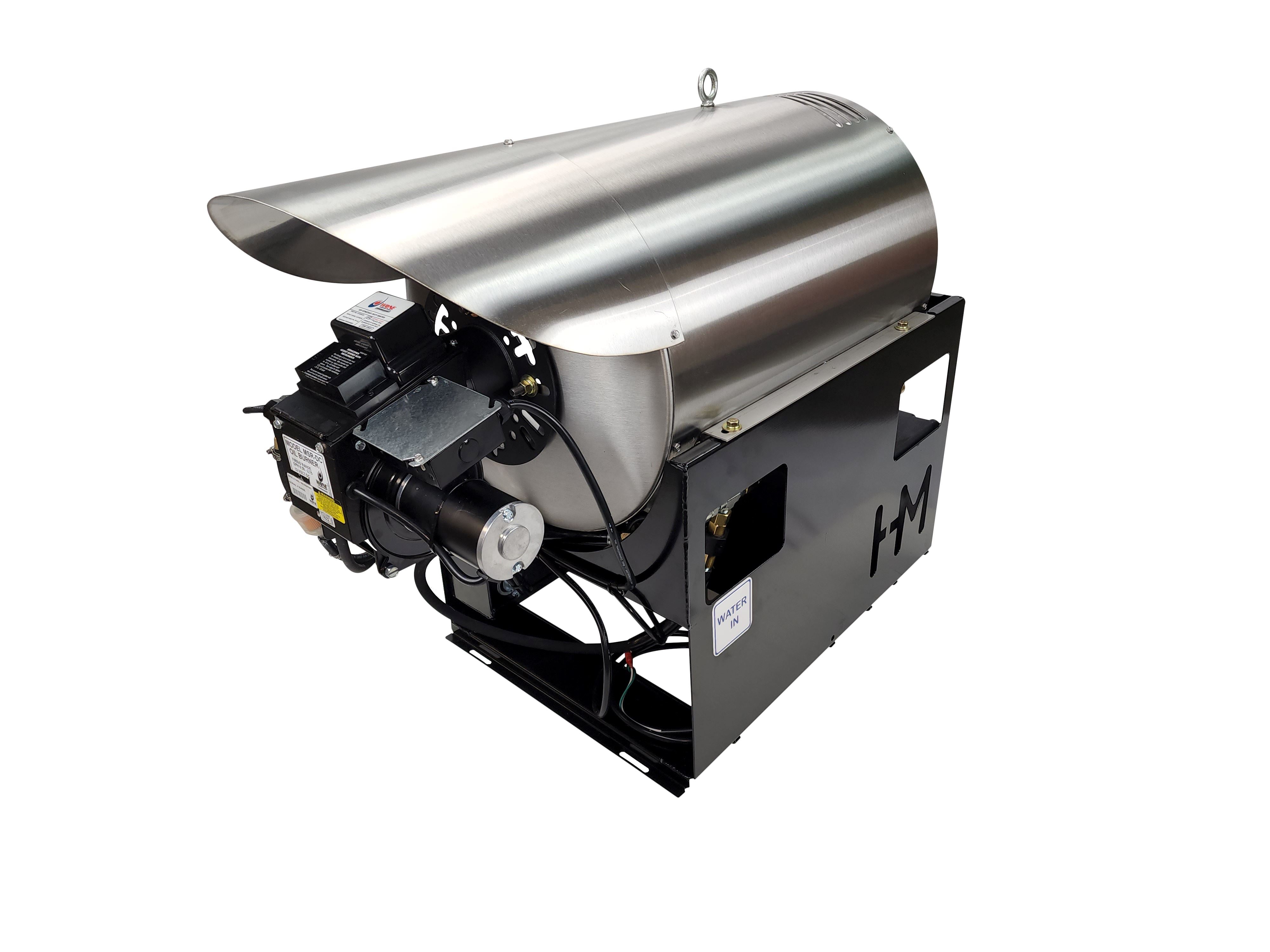

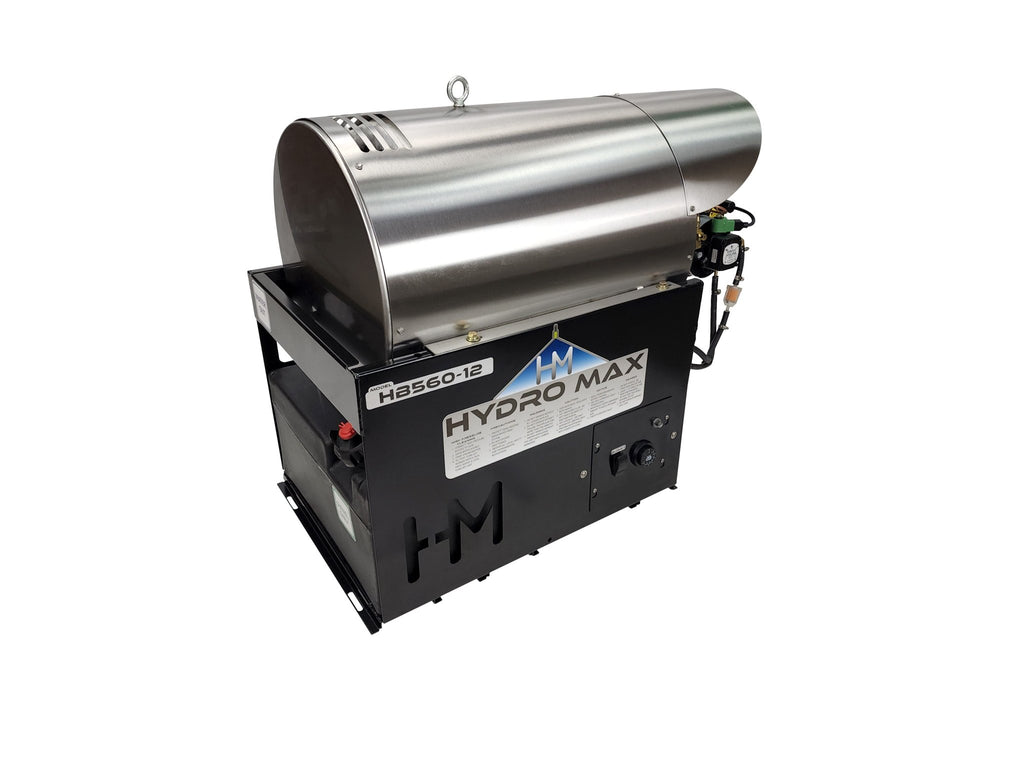

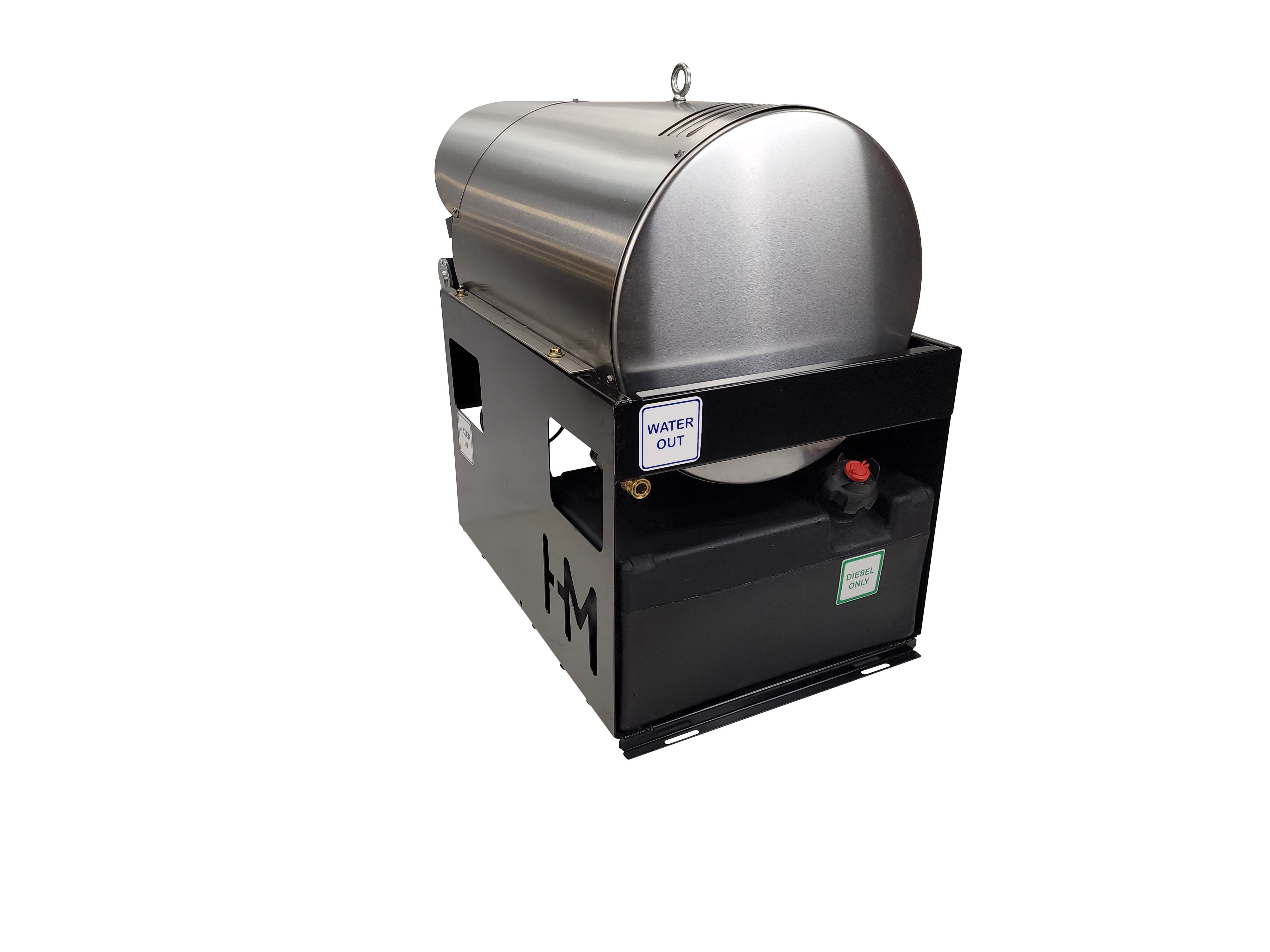

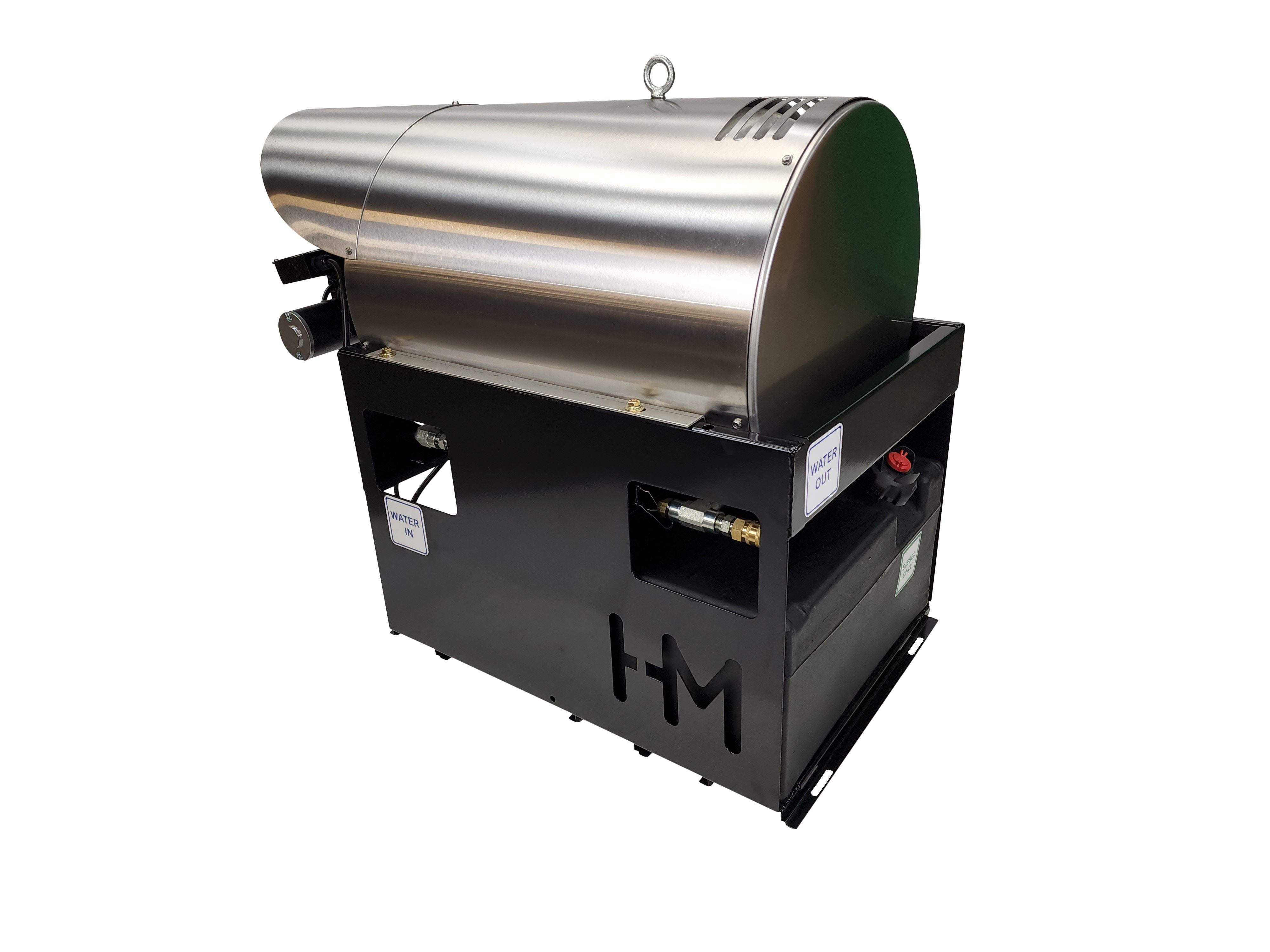

Hydro Max HB560-120 "Hot Box"
The Hydro Max HB560-120 is designed to connect to a cold water pressure washer (or any water supply) and heat the water up to 250 degrees (F) as it flows though the system. Power for the burner is supplied by either the 12v(DC) or 120v(AC). No minimum pressure is required to operate the burner. This system uses a Flow Switch to control burner operation. When water is flowing, the burner can start. If water flow stops, the burner will stop.
Performance Specifications
|
Metric |
Specification |
|
Flow Rate |
5-6 GPM |
|
Pressure |
Up to 6000 PSI |
|
Temperature Control |
Adjustable Thermostat |
|
Dimensions |
35" L x 20" W x 30" H |
The Hydro Max HB560-120 is a "Hot Box" designed to convert any cold water pressure washer into a high-performance hot water system.
Key Features
|
Compatibility |
Can be added to any water source to generate hot water- no pressure needed-works off of flow |
|
Fuel Tank |
5 Gallon |
|
Coil |
High-Efficiency Heat Coil Stainless Steel coil wrap |
|
Burner |
120V burner |
|
Included Accessories |
Standard w/ 36in connector Hose- connect to your pressure washer Rupture Disc- safety |
Note: Requires an engine with a minimum 17amp charge system for the 12V burner
Photos may not reflect the exact model. Variations may occur based on engine and pump configurations. Please refer to the description above for specific model details.
