Description

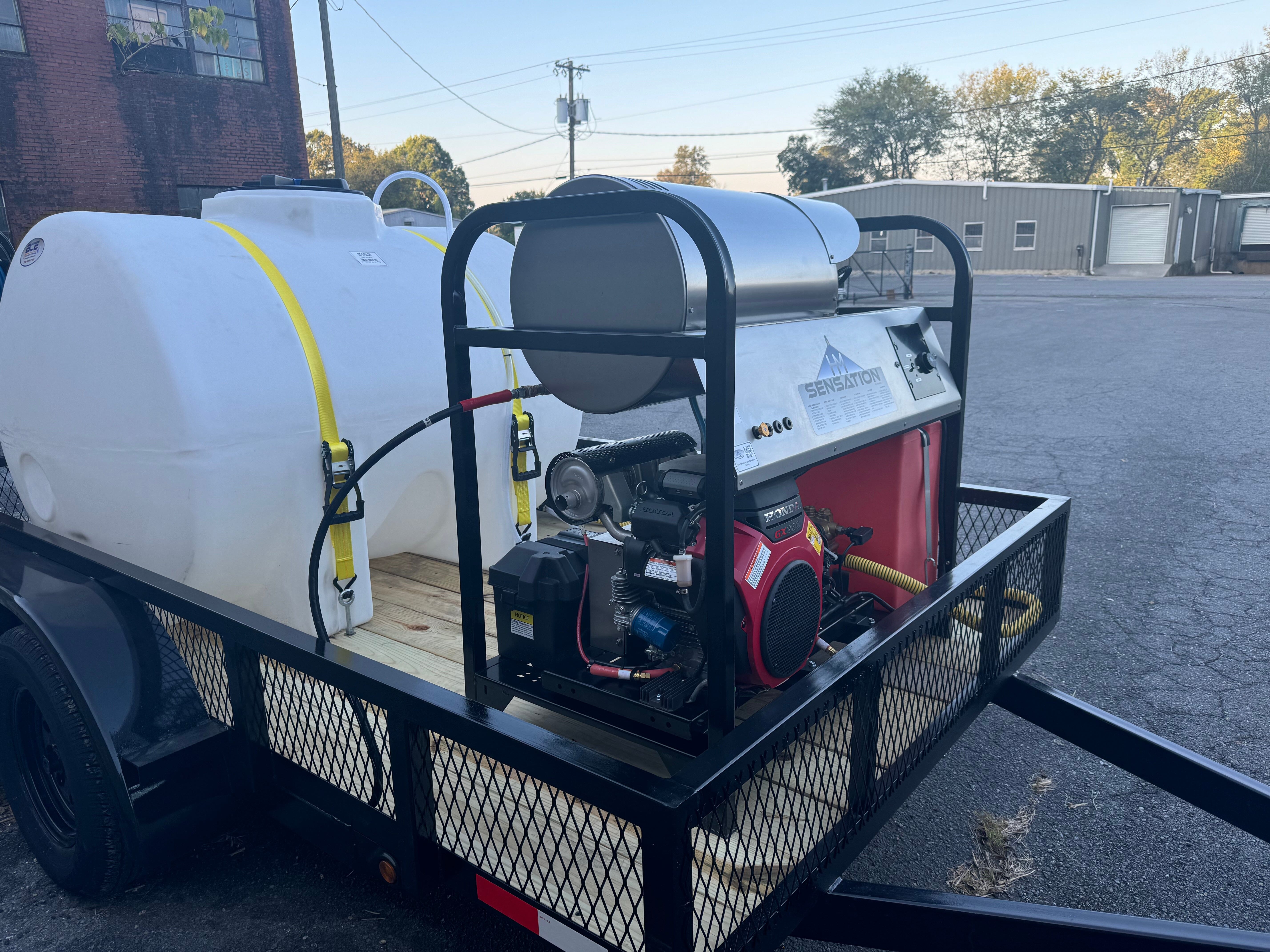

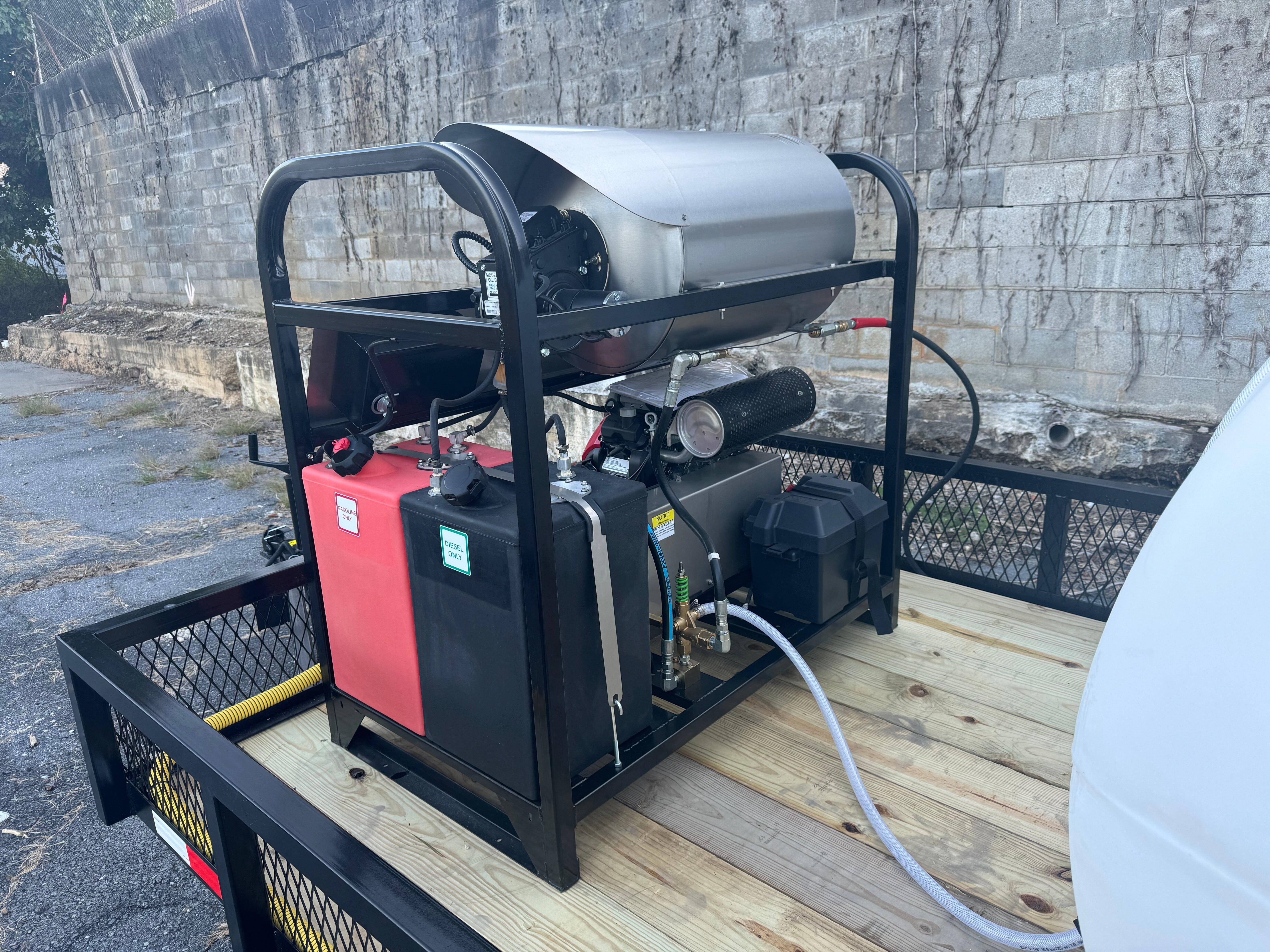

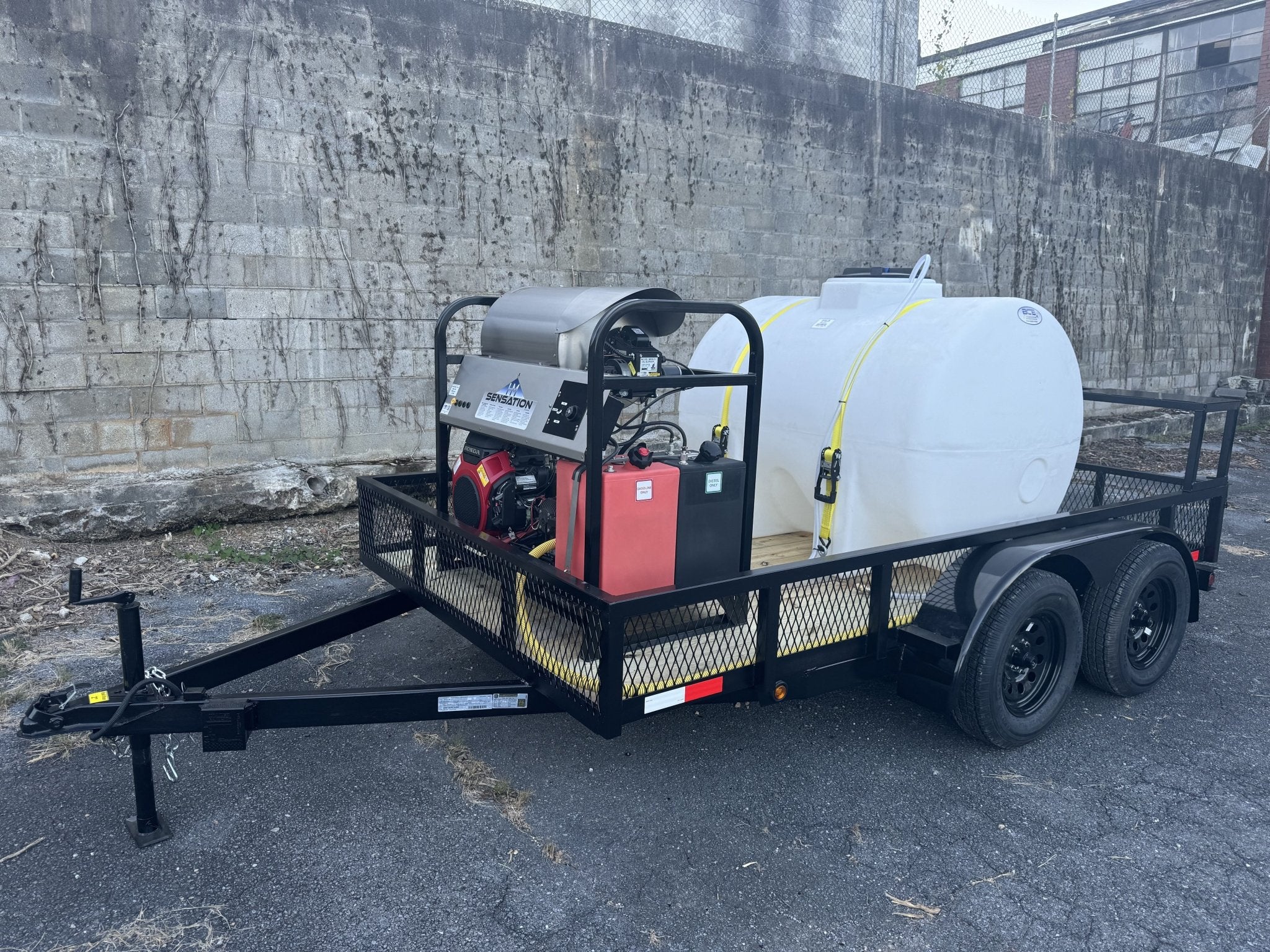

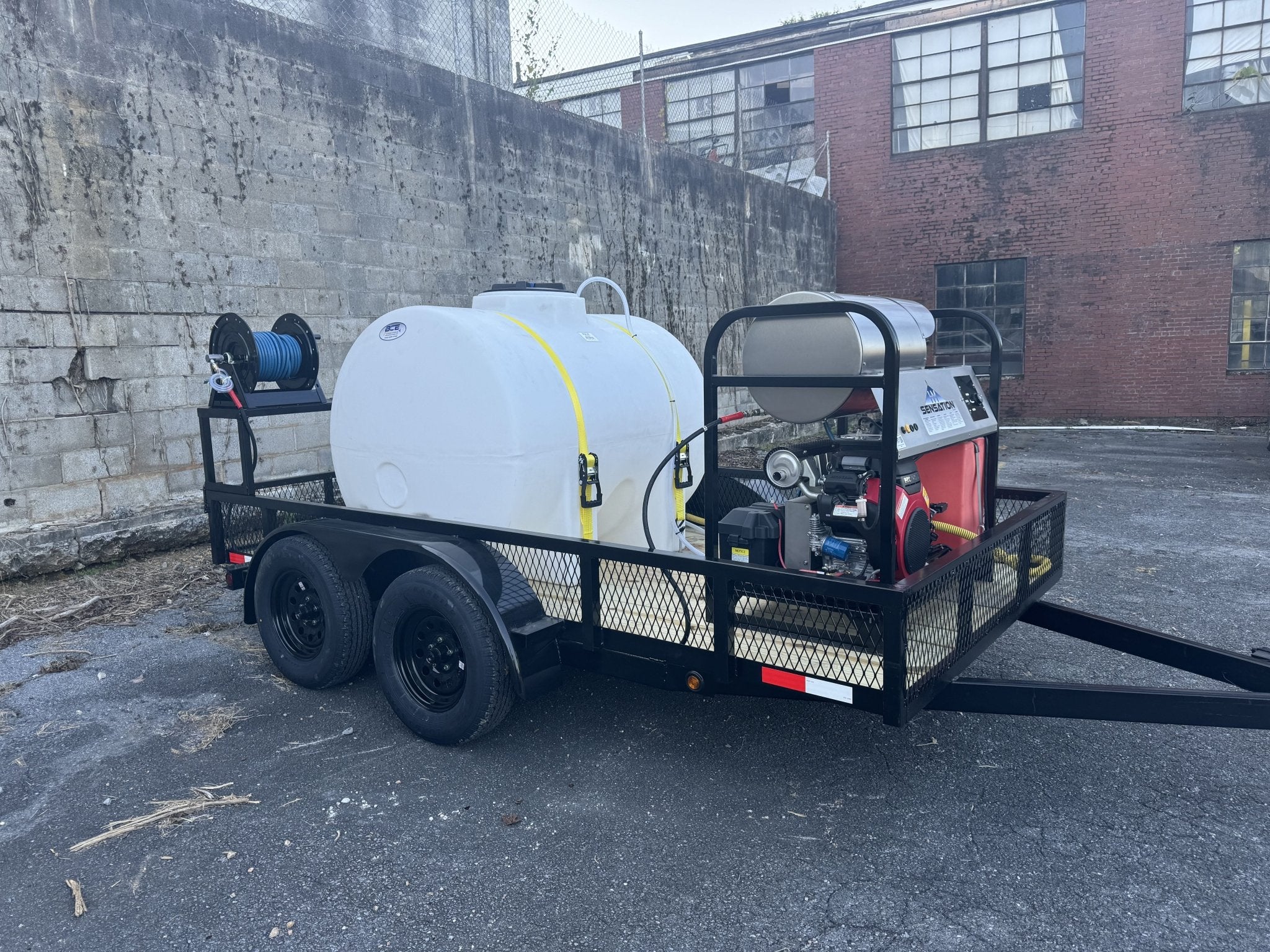

Sensation - 8gpm @ 3500psi Hot Water Trailer
Complete trailer package setup with a SG840HA pressure washer unit and a 525Gal water tank, fully plumbed and tested, ready to go.
Performance Specification
| Metric | Specification |
| Flow Rate | 8 GPM |
| Pressure | 3500 PSI |
| Dimensions | 48" L x 50" H x 29" D |
| Weight | Approx. 600 lbs |
Technical Specifications
| Component | Details |
| Engine | Honda GX690 17A Commercial-Grade Engine |
| Pump | AR Pump |
| Burner | DC-12V Burner |
| Coil | High-Efficiency Heat Coil |
| Fuel System | 11 Gal Diesel Tank, 11 Gal Gas EPA- Compliant XLPE Tank |
| Drive System | Belt Drive with High HP Belts |
| Frame & Housing | Welded 14GA powder-coated steel frame with stainless steel coil wrap and access panels |
| Electrical | 12VDC Lighted Indicator Panel |
| Temperature Control | Adjustable Thermostat |
Trailer Specifications
- 6.5'x12' Tandem axle trailer- Electric brake, new tires/wheels, 3500lb axles (7000 lb trailer rating), 2" treated wood floor, heavy duty tube frame construction
- 525 gallon water tank- with float valve installed, prevents overfill- bypass returned to tank
- Raised Reel Platform to allow more storage area
Accessories included
- ✅ 1" plumbing with water filter between tank and pressure washer
- ✅ 100' 4000psi rated Non-Marking Pressure Hose
- ✅ Pressure Hose Reel
- ✅ 48” Single Lance Wand with Trigger Gun
- ✅ Quick-Connect Nozzle Set (soap nozzle, 15°, 25°, 40°)
- ✅ Chemical Injector for downstream application
- ✅ Hour Meter for maintenance tracking
- ✅ Grommet Nozzle Holder, Thermostat
Options:
- 25 gallon Chem. tank
- Tongue Toolbox
- Water Supply Reel
Specs listed are +/- 10%. Photos may not reflect the exact model. Variations may occur based on engine, pump and trailer configurations.
