Description
Hydro Max CWD Series

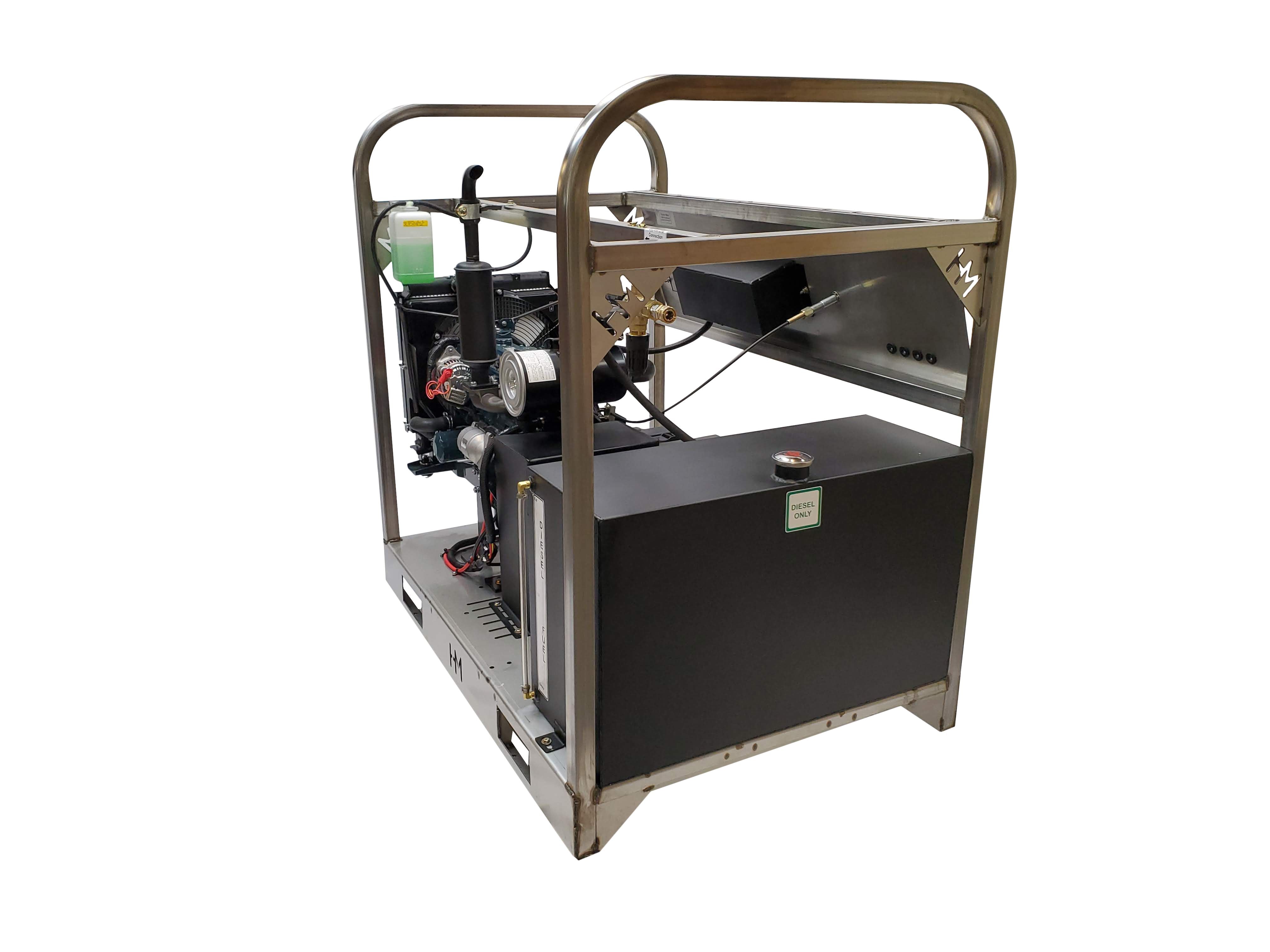

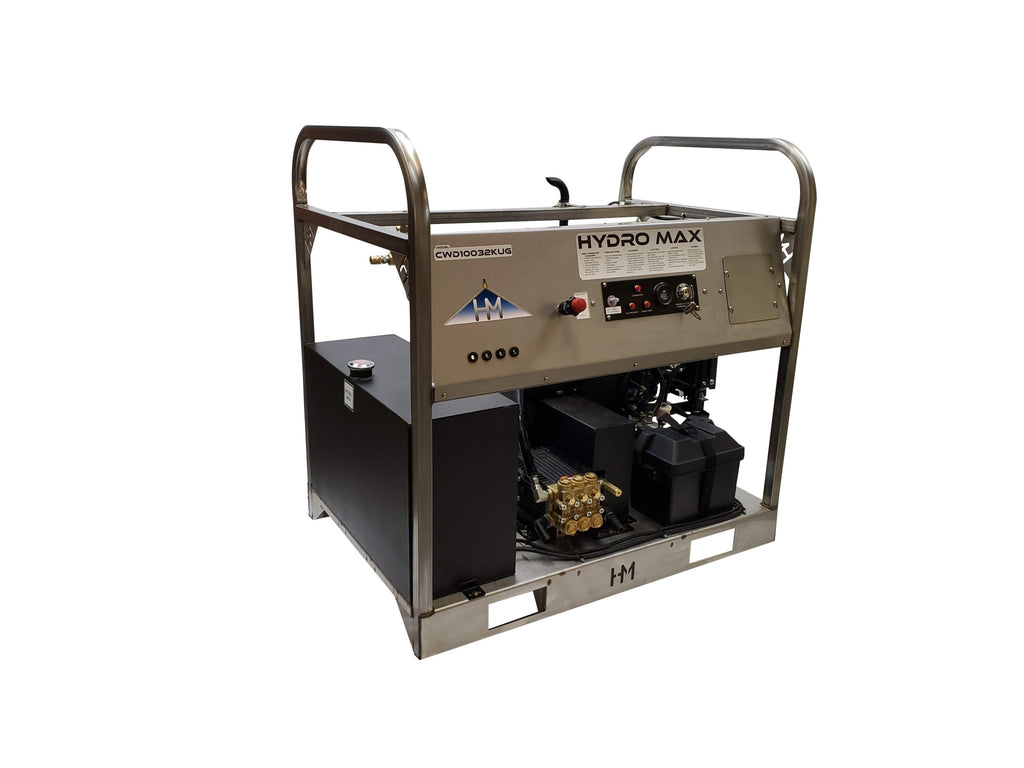

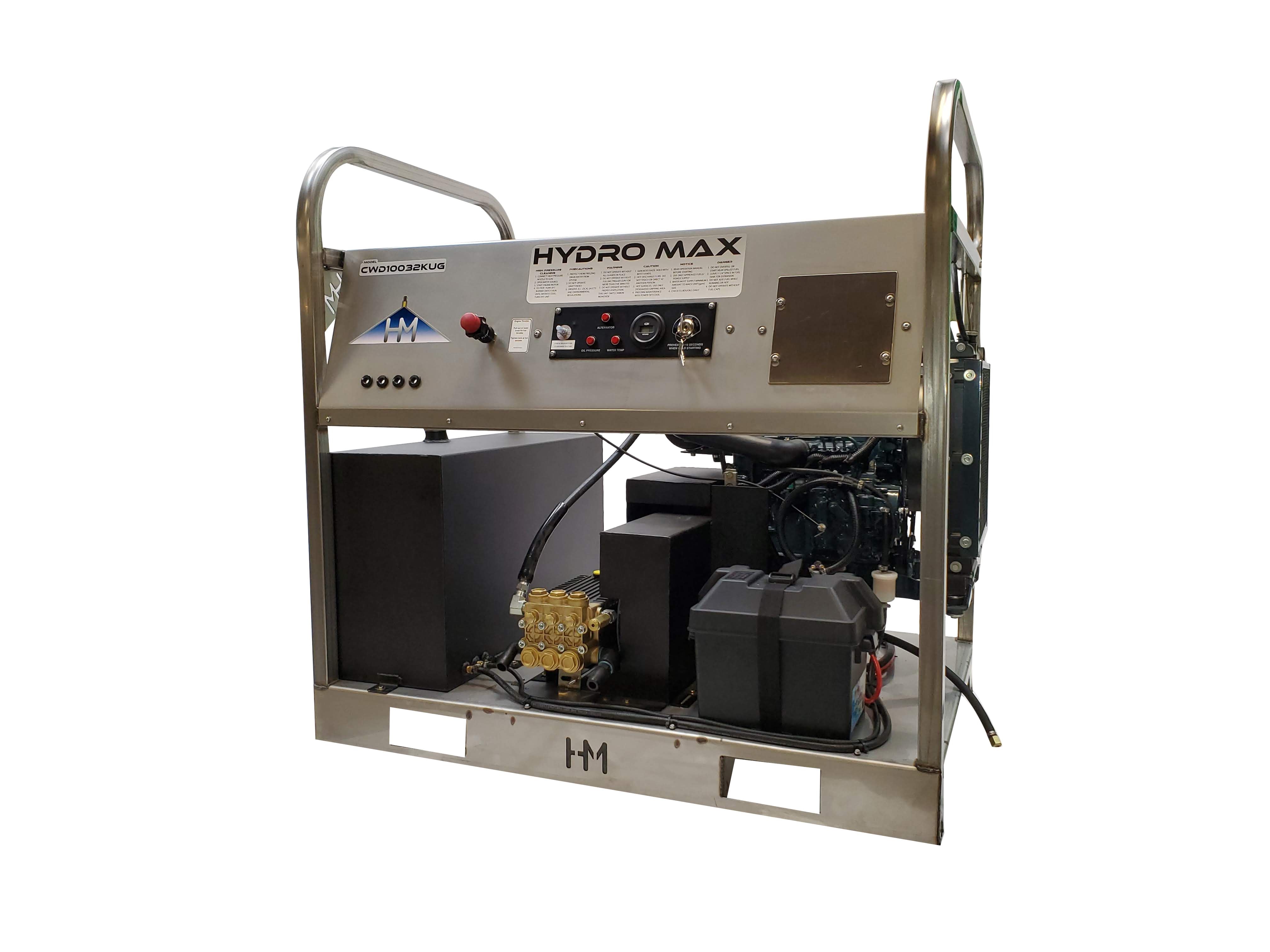

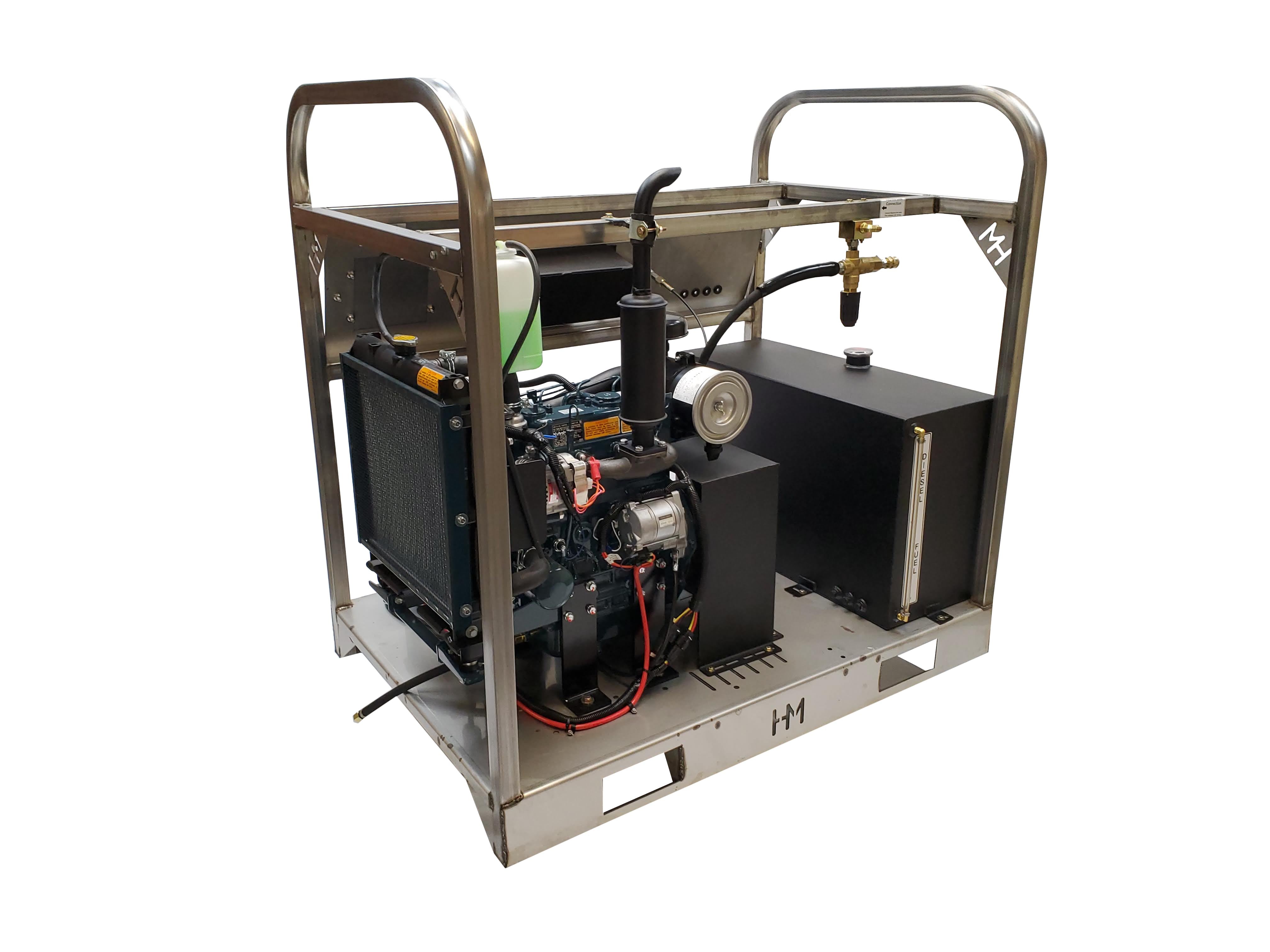

The Hydro-Max CWD10035KuG is a professional-grade, high-performance cold pressure washer engineered for contractors who demand reliability and power. Delivering a potent 10 GPM at 3500 PSI, this unit is purpose-built to tackle the most demanding commercial cleaning tasks—from heavy equipment and large-scale concrete cleaning to industrial facility maintenance.
At its core, the CWD10035KuG features the industry-standard Kubota D1105 Diesel Commercial Series Engine, paired with a premium belt-drive General Pump. The unit is housed in an extreme-duty stainless steel frame, offering superior corrosion resistance and a rugged footprint that fits easily into trucks or trailers.
Performance Specifications
|
Metric |
Specification |
|
Flow Rate |
10 GPM max |
|
Pressure |
3500 PSI |
|
Dimensions |
50"L x 34"W x 50"H |
|
Weight |
Approx. 650 lbs |
Technical Product Specifications
|
Component |
Details |
|
Engine |
Kubota D1105 Diesel Engine |
|
Pump |
General Pump Assembly |
|
Frame & Housing |
Extreme Duty Stainless Steel Frame |
|
Tank |
24 gallon fuel tank |
Specs listed are +/- 10%
Included:
· ✅ 50 ft. 5000psi rated 1/2" Hose
· ✅ 48” Single Lance Wand with Trigger Gun
· ✅ Quick-Connect Nozzle Set (soap nozzle, 15°, 25°, 40°)
· ✅ Chemical Injector for downstream application
· ✅ Hour Meter
· ✅ High HP BX Belts
· ✅ Easy Oil Drain
Photos may not reflect the exact model. Variations may occur based on engine and pump configurations. Please refer to the description above for specific model details.
Compare our cold water pressure washers by GPM, PSI and engine.
