Description

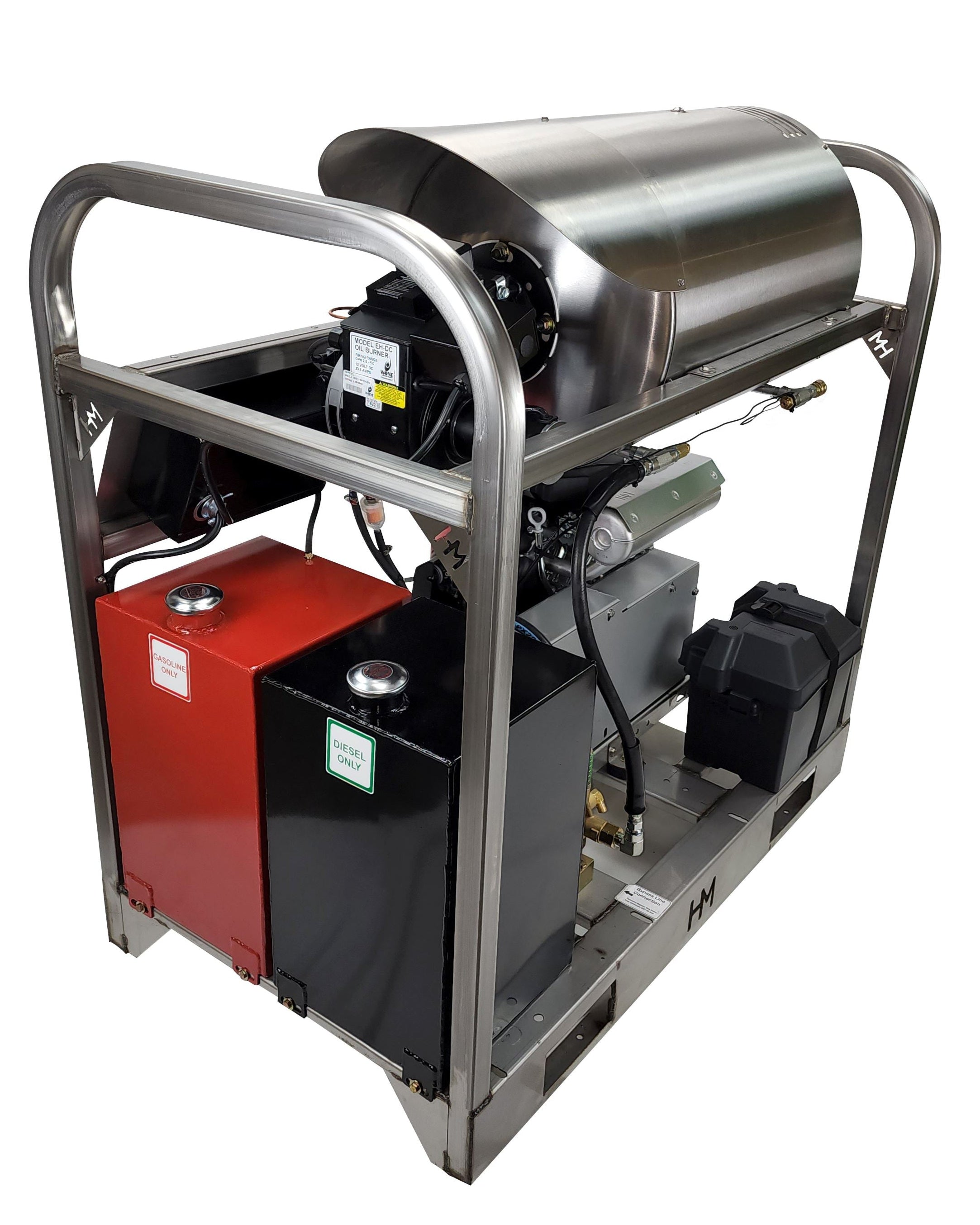

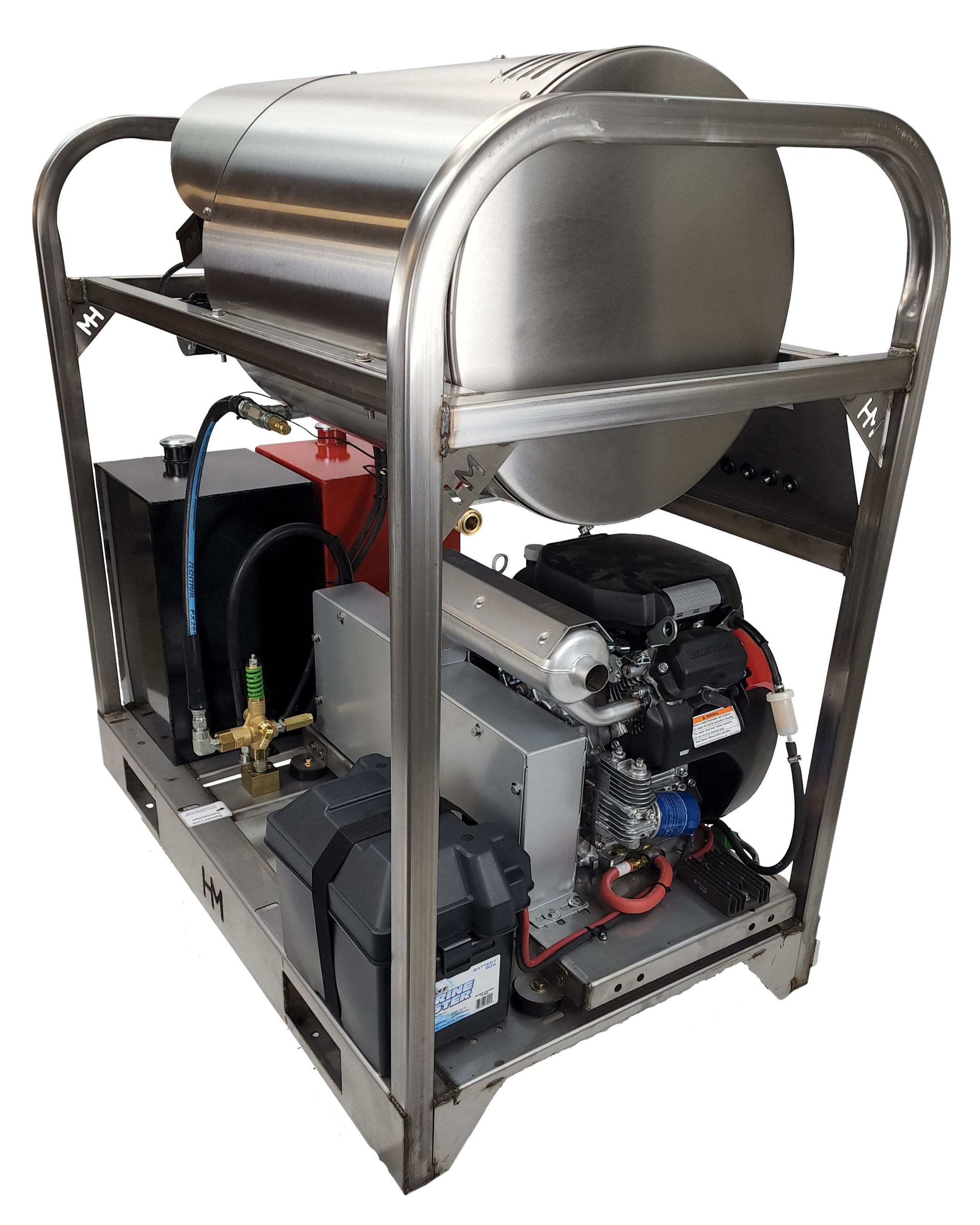

Hydro Max DC8540HCi
Built for professional, industrial use, the Hydro Max DC8540HCi delivers high-output cleaning performance with a Honda iGX800 Series Engine (Fuel Injected) and a belt‑drive pump.
Designed for durability and serviceability, it features efficient heat rise, an adjustable thermostat, stainless steel coil wrap/panels, and a weather‑tight electrical box. A heavy-duty stainless steel frame, easy oil drain, and included accessories enhance usability and simplify on-site operation, ensuring high productivity across construction, agriculture, manufacturing, and commercial cleaning applications.
Performance Specifications
|
Metric |
Specification |
|
Flow Rate |
8 GPM |
|
Pressure |
4000 PSI |
|
Temperature Control |
Adjustable Thermostat |
|
Dimensions |
46" L x 48" H x 28" D |
|
Weight |
Approx. 600 lbs |
Technical Product Specifications
| Component | Details |
|
Engine |
Honda iGX800 17A Commercial-Grade Engine |
|
Pump |
Comet Pump Assembly |
|
Burner |
DC-12V Burner |
|
Coil |
High-Efficiency Heat Coil |
|
Fuel System |
11 Gal Diesel Tank, 11 Gal Gas EPA- Compliant XLPE Tank |
|
Drive System |
Belt Drive with High HP Belts |
|
Frame & Housing |
Extreme Duty Stainless Steel Frame |
|
Electrical |
12VDC Lighted Indicator Panel |
|
|
Specs listed are +/- 10% Maximum 4200psi including spike pressure |
Included Accessories
- ✅ 50 ft. 4200psi rated Non-Marking Hose
- ✅ 48” Single Lance Wand with Trigger Gun
- ✅ Quick-Connect Nozzle Set (soap nozzle, 15°, 25°, 40°)
- ✅ Chemical Injector for downstream application
- ✅ Hour Meter for maintenance tracking
- ✅ Thermostat
- ✅ Grommet Nozzle Holder
Photos may not reflect the exact model. Variations may occur based on engine and pump configurations. Please refer to the description above for specific model details. Pressure/volume are maximum including spike.
