Description

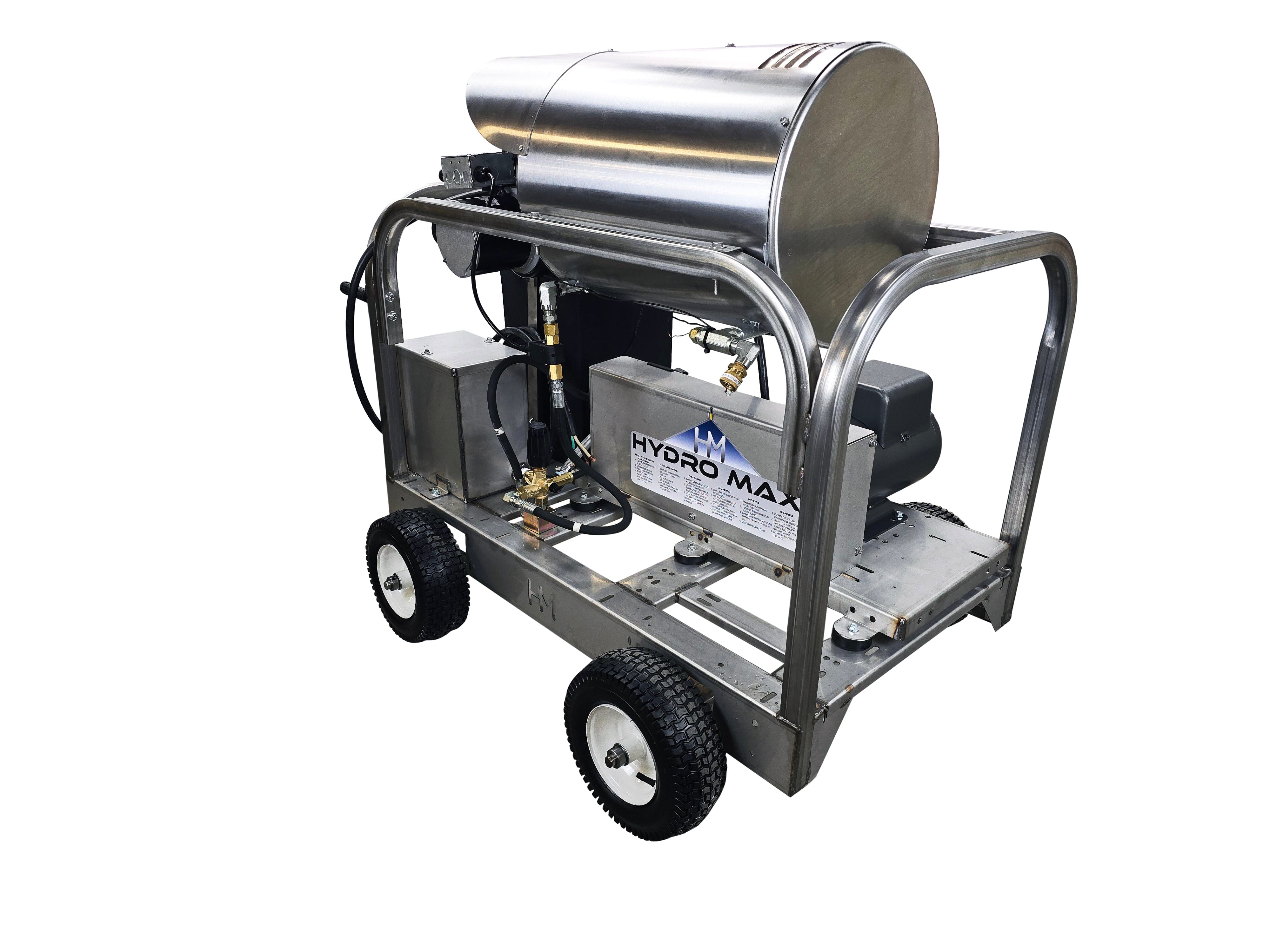

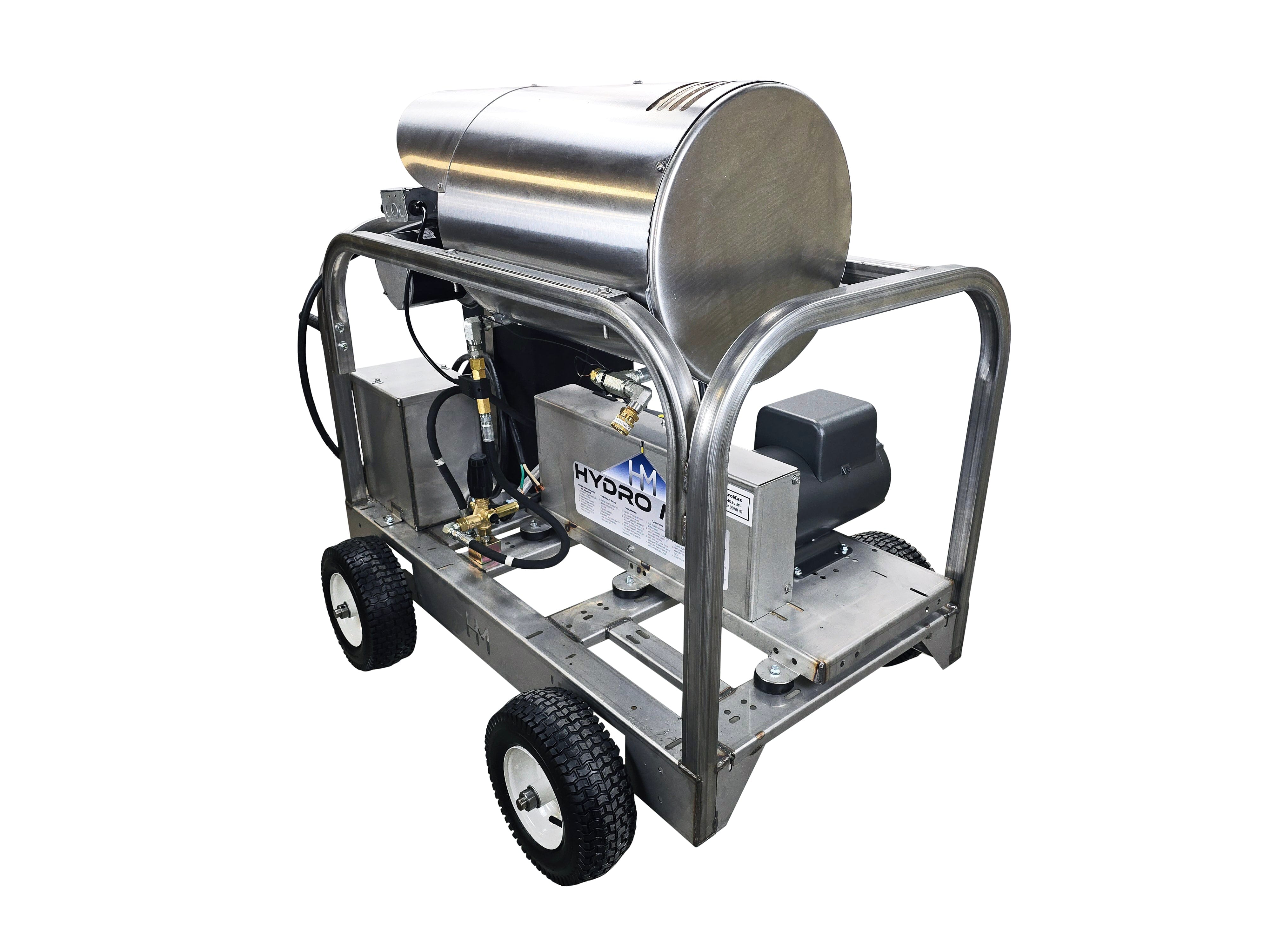

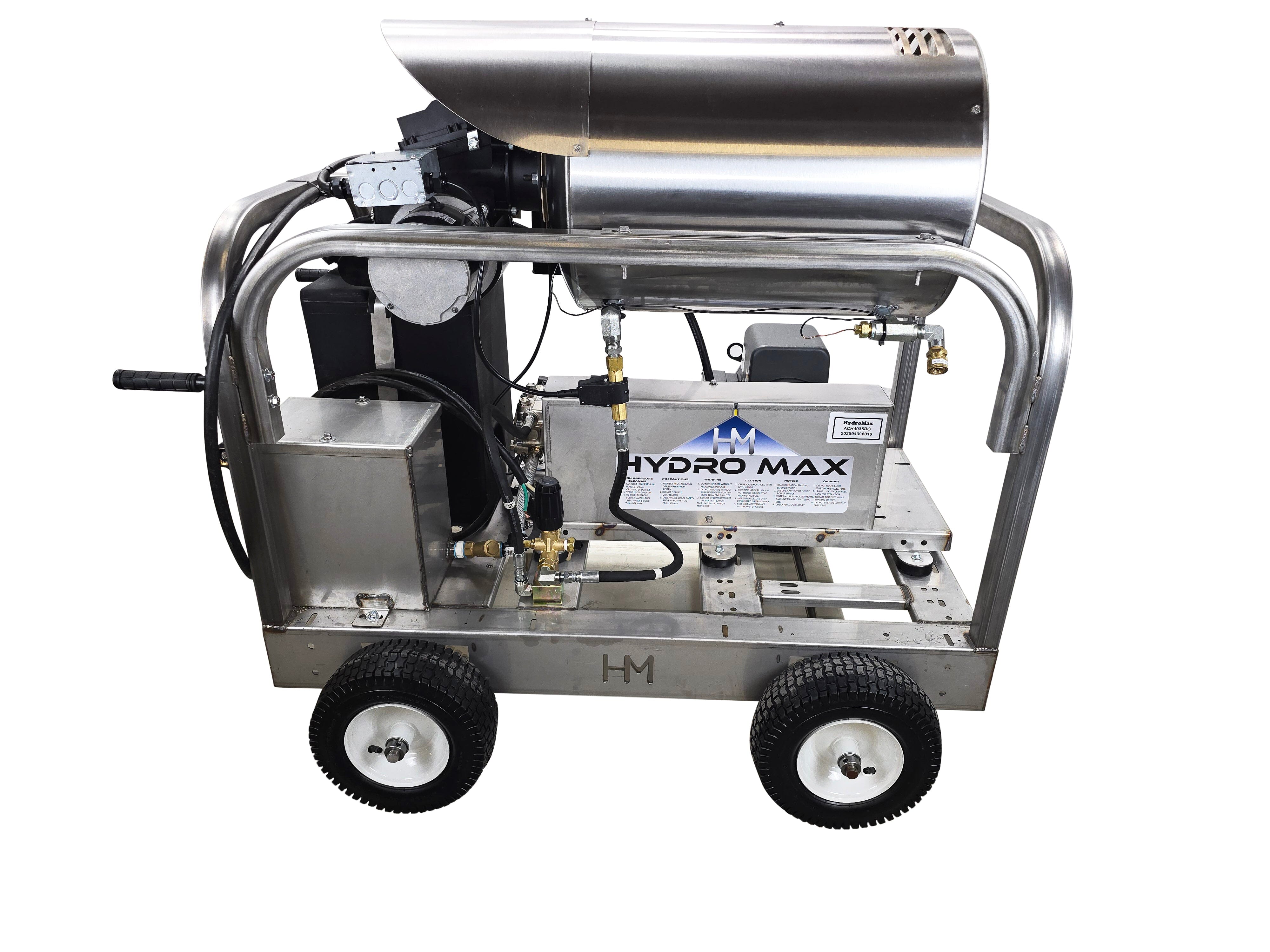

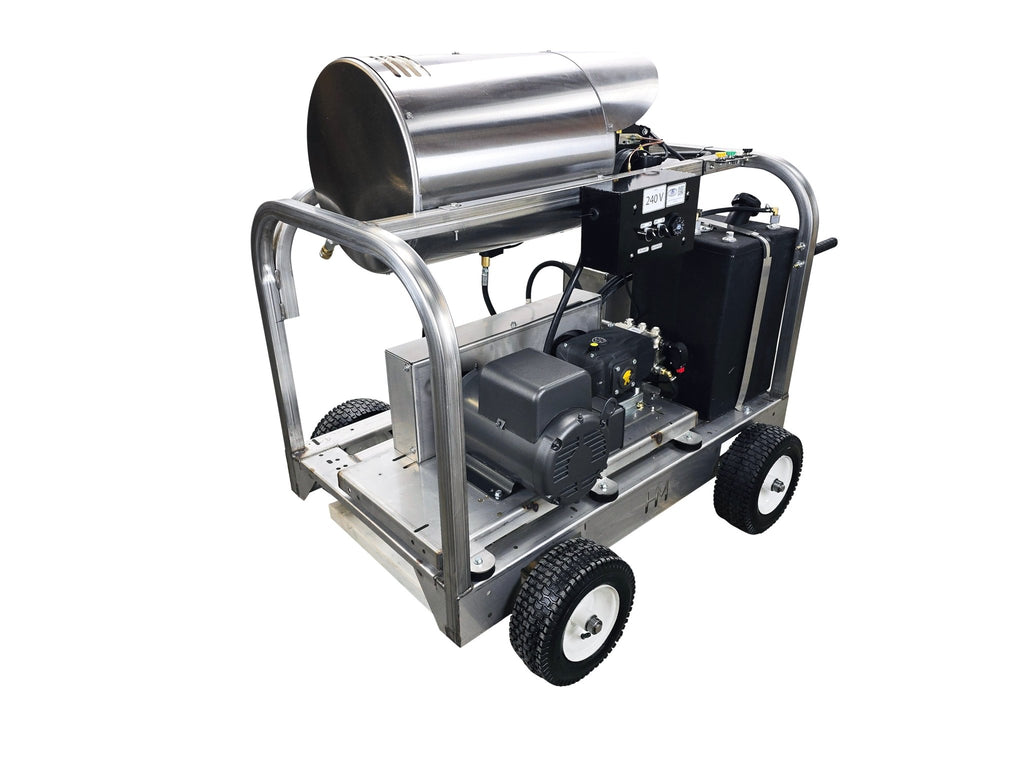

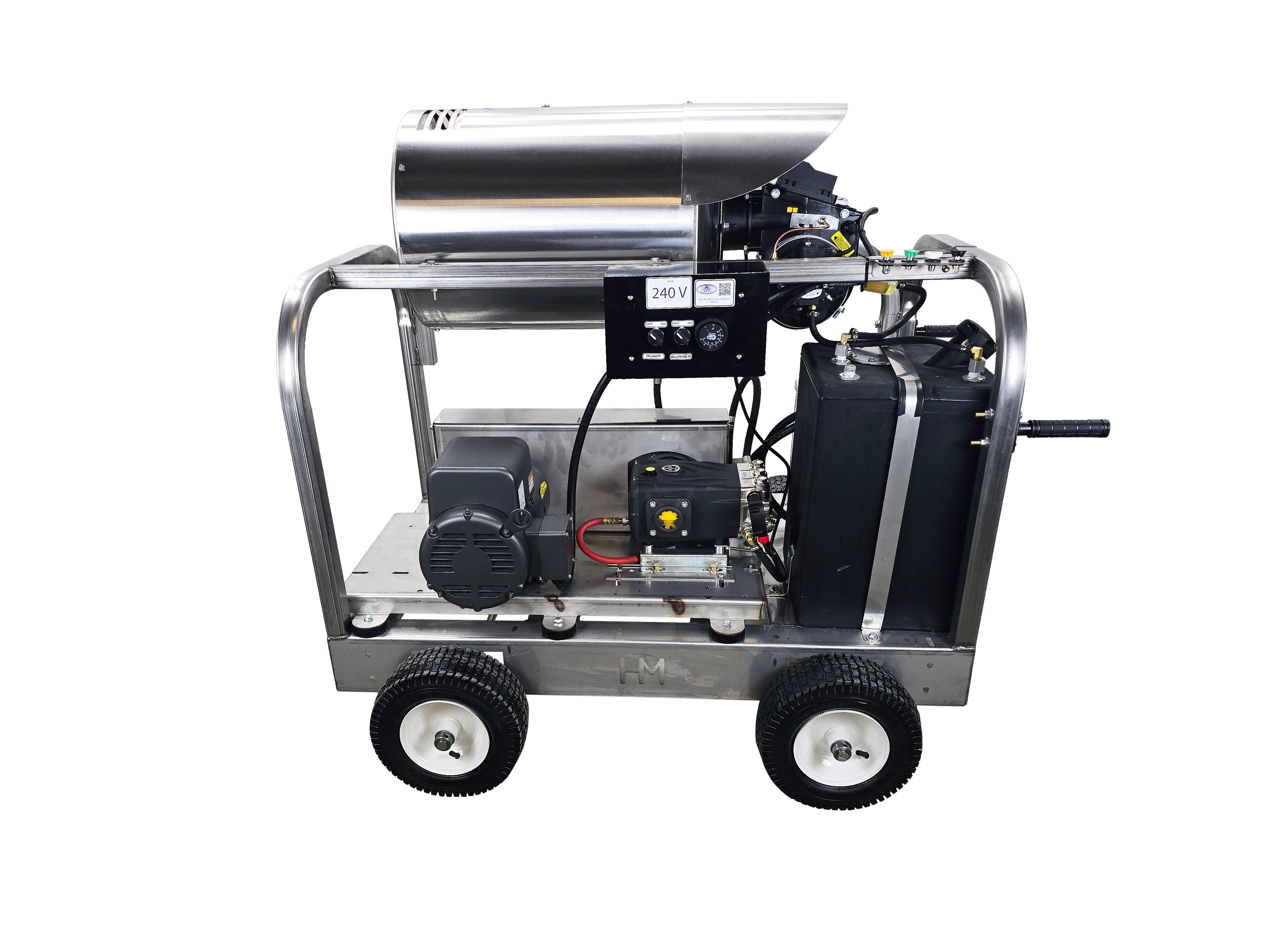

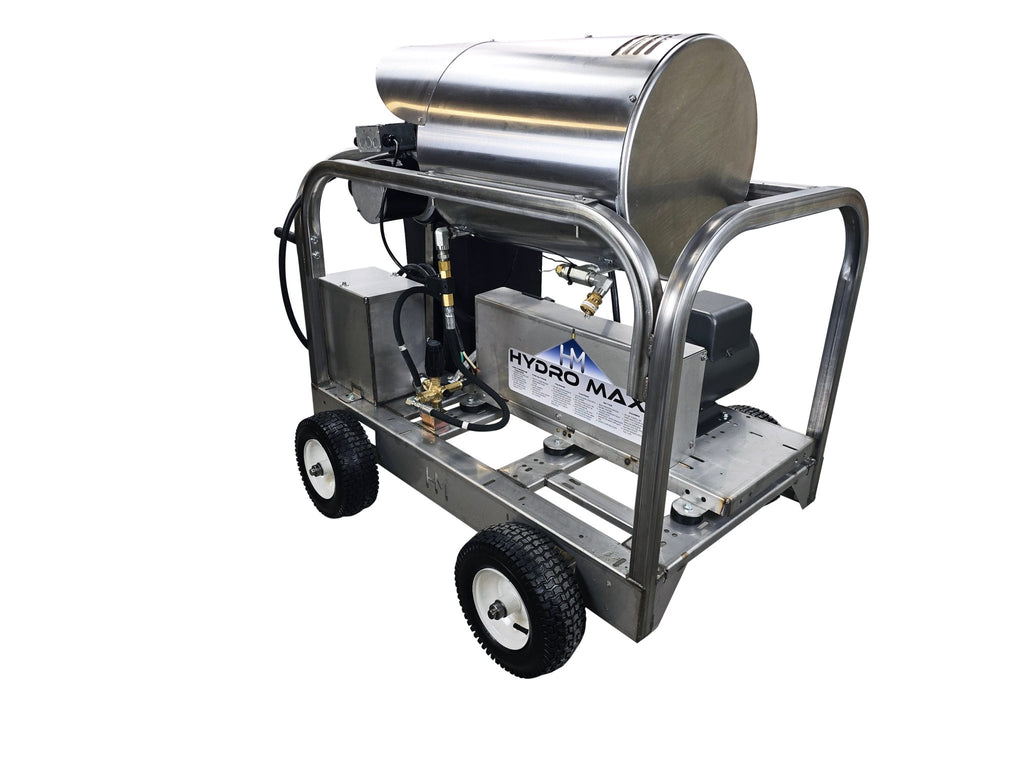

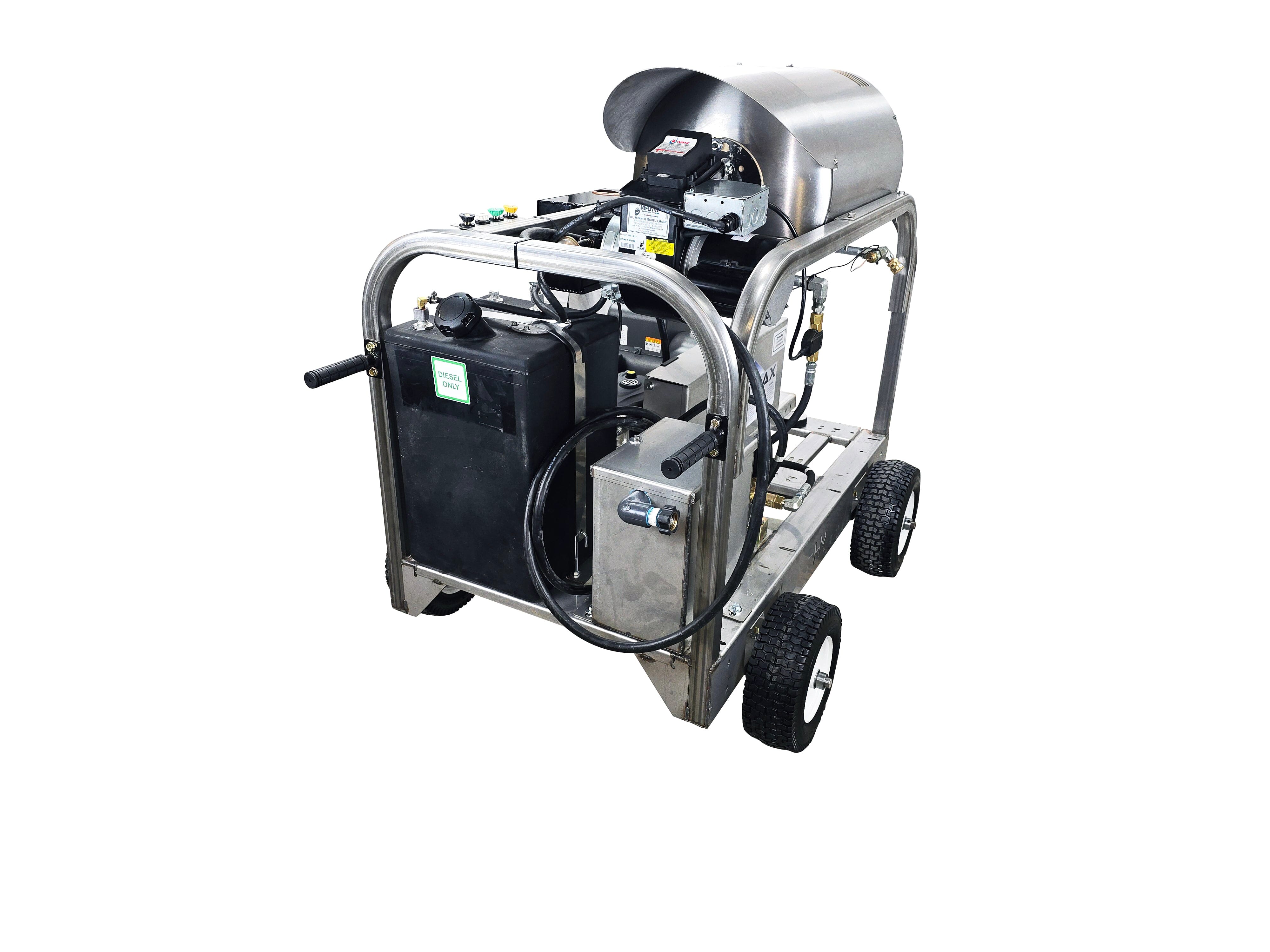

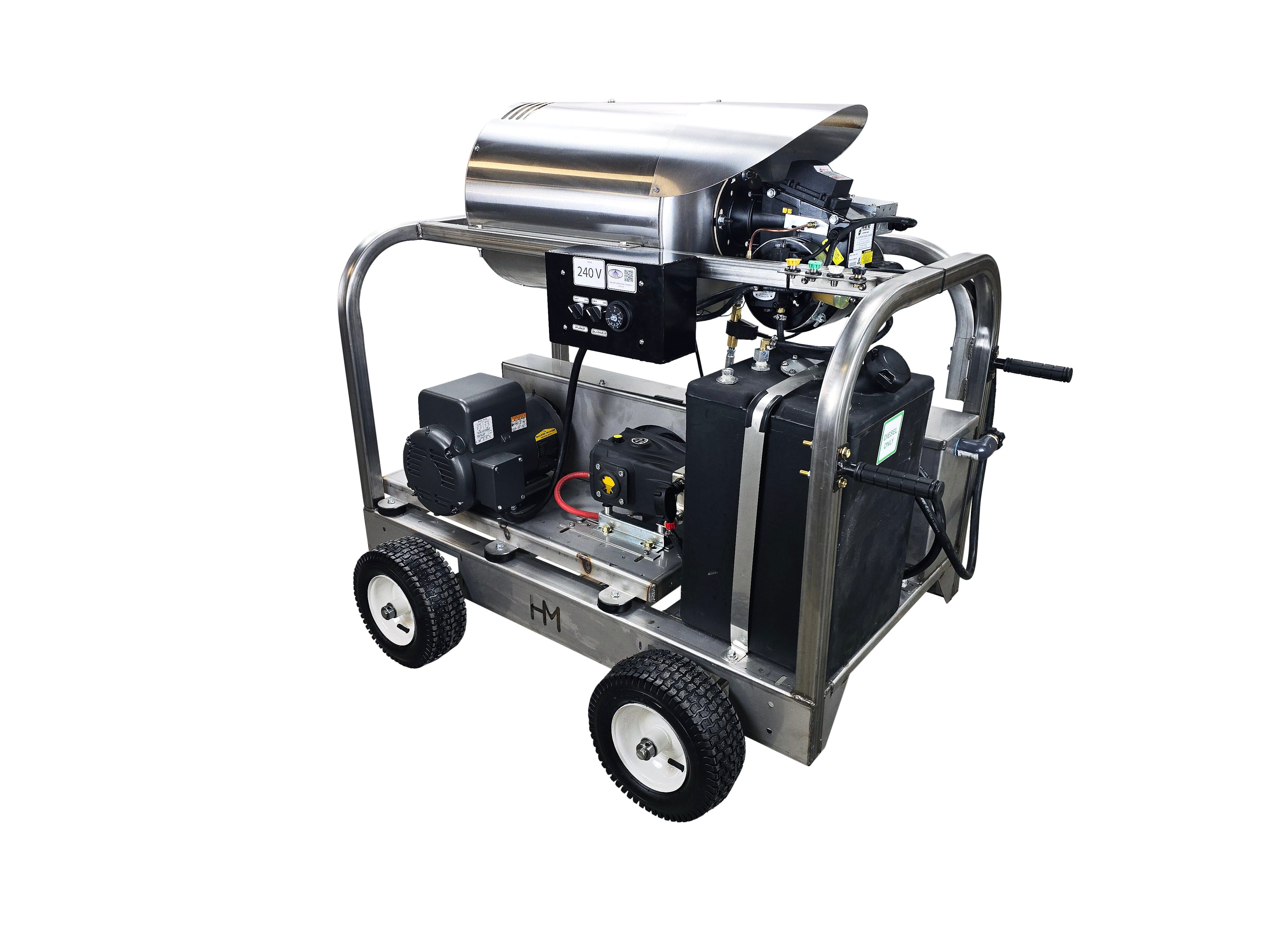

Hydro Max HMVE4020BG
The Hydro Max HMVE4020BG is a commercial-grade hot water pressure washer designed for industrial applications where electric power is preferred over gas. The units run on 240V single phase power and are also available with 3ph motors (special order). These units are built with heavy duty square tube frames, combining long-lasting durability with the high-heat performance needed to cut through grease, oil, and heavy grime.
Performance Specifications
|
Metric |
Specification |
|
Flow Rate |
3.7 GPM |
|
Pressure |
2000 PSI |
|
Temperature Control |
Adjustable Thermostat |
|
Dimensions |
46" L x 33" H x 48" H |
|
Weight |
Approx. 600 lbs |
Technical Product Specifications
| Component | Details |
|
Engine |
5HP Electric Motor-240V/1ph |
| Pump |
Belt Drive Pump |
|
Coil |
High-Efficiency Heat Coil |
|
Fuel System |
5 Gal Diesel Tank |
|
Frame & Housing |
Extreme Duty Stainless Steel Frame |
|
Stainless Steel Package |
The coil wrap/panels/frame are stainless steel |
|
Tires |
Large 13" Tires |
|
|
Specs listed are +/- 10% |
Included Accessories
- ✅ 50 ft. 3/8” Non-Marking Pressure Hose (rated to 4200 PSI)
- ✅ 48” Single Lance Wand with Trigger Gun
- ✅ Quick-Connect Nozzle Set (soap nozzle, 15°, 25°, 40°)
- ✅ Chemical Injector for downstream application
Photos may not reflect the exact model. Variations may occur based on engine and pump configurations. Please refer to the description above for specific model details.
