Hydro Max Tank Skid-TSCW10030HGi-200 (200gallon) 10gpm@3000psi

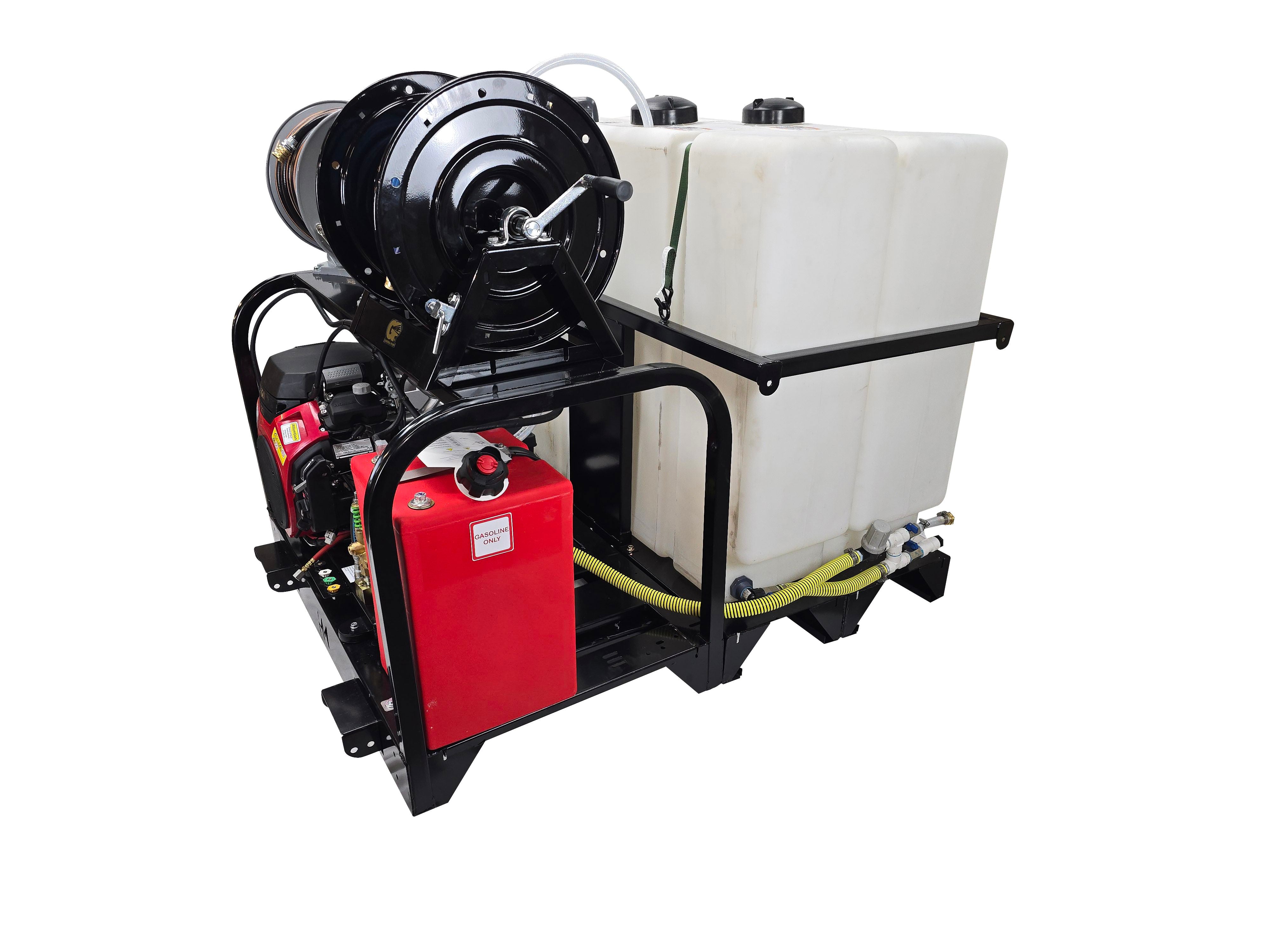

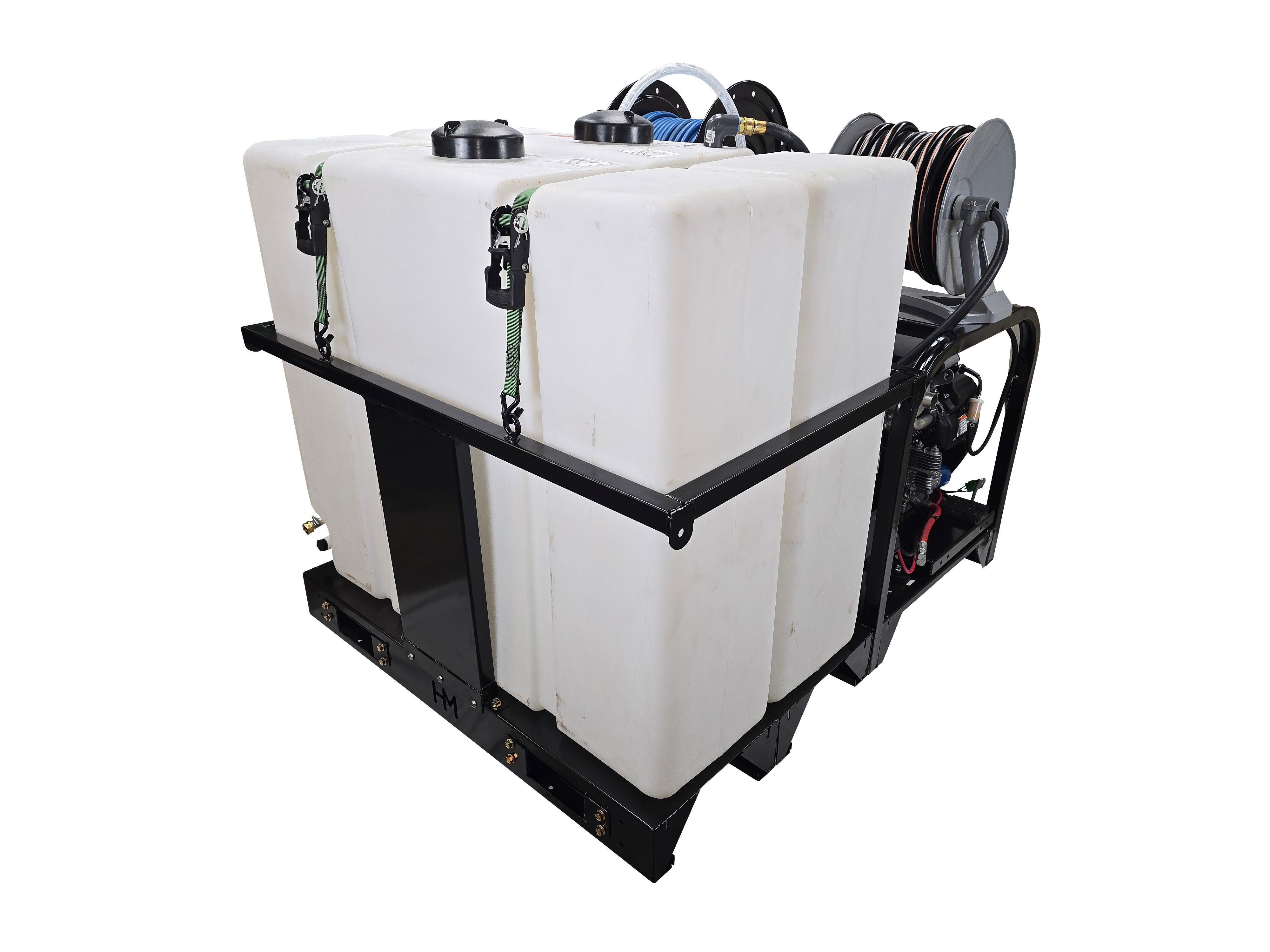

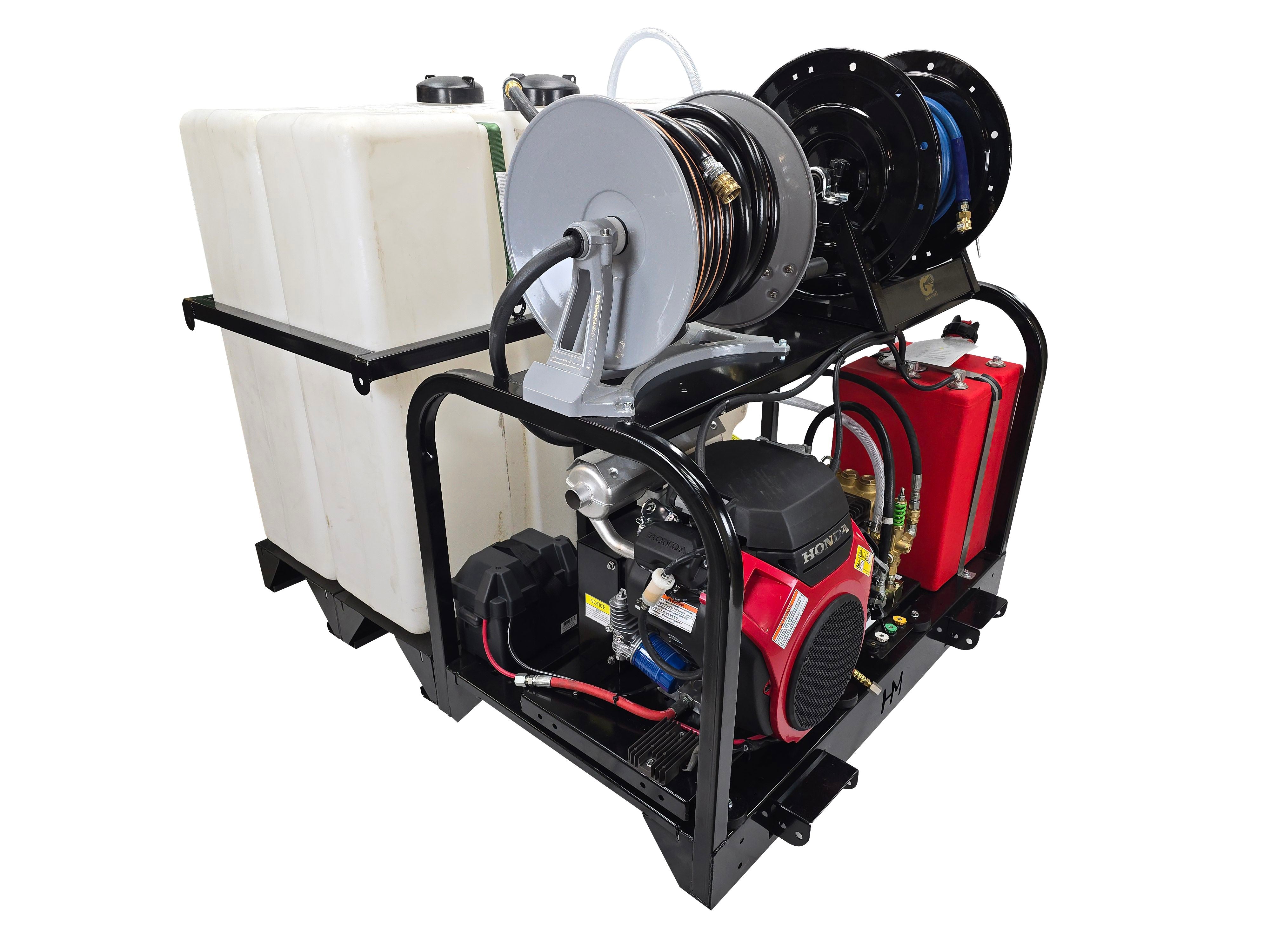

Hydro Max Tank Skid

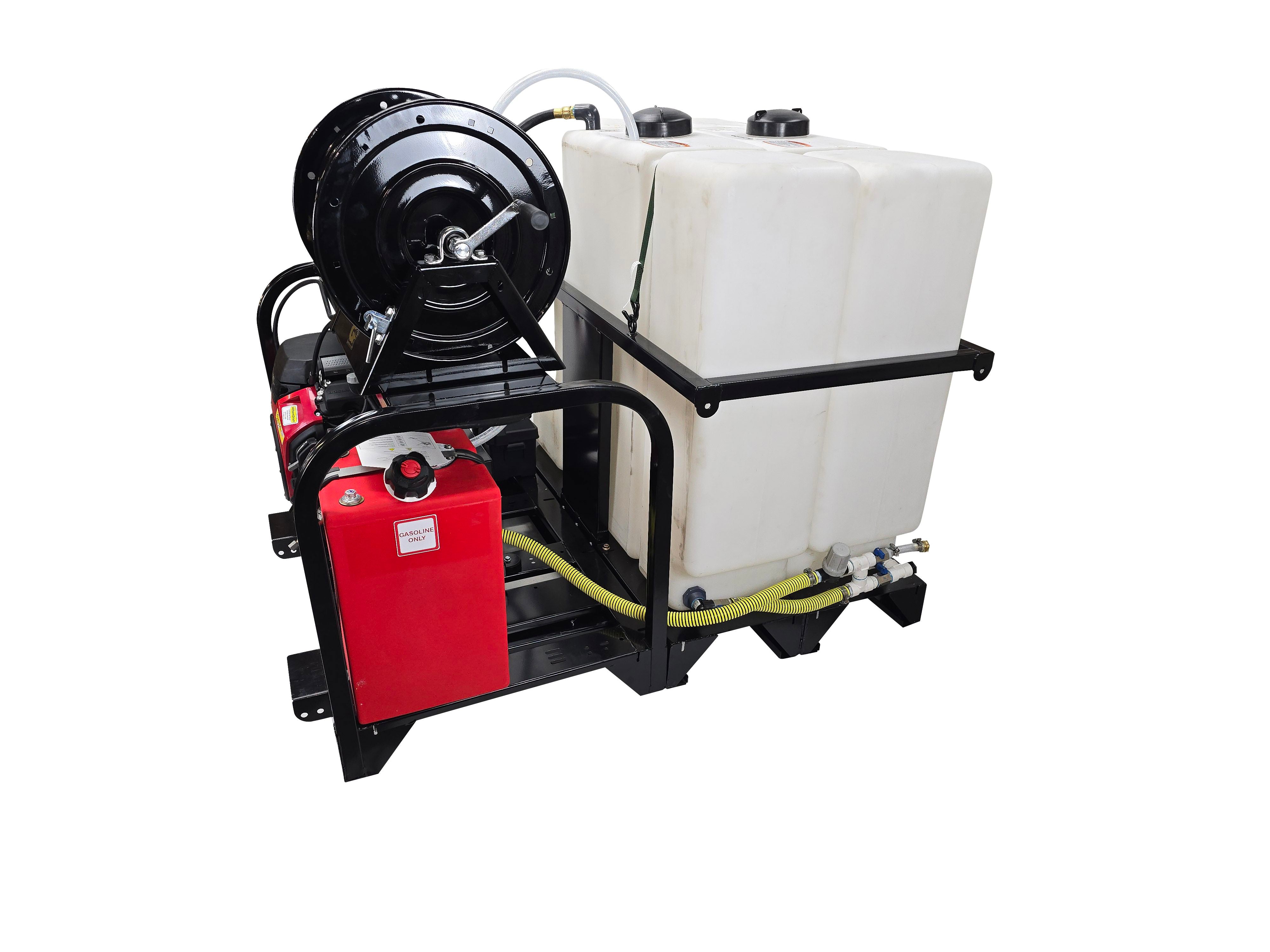

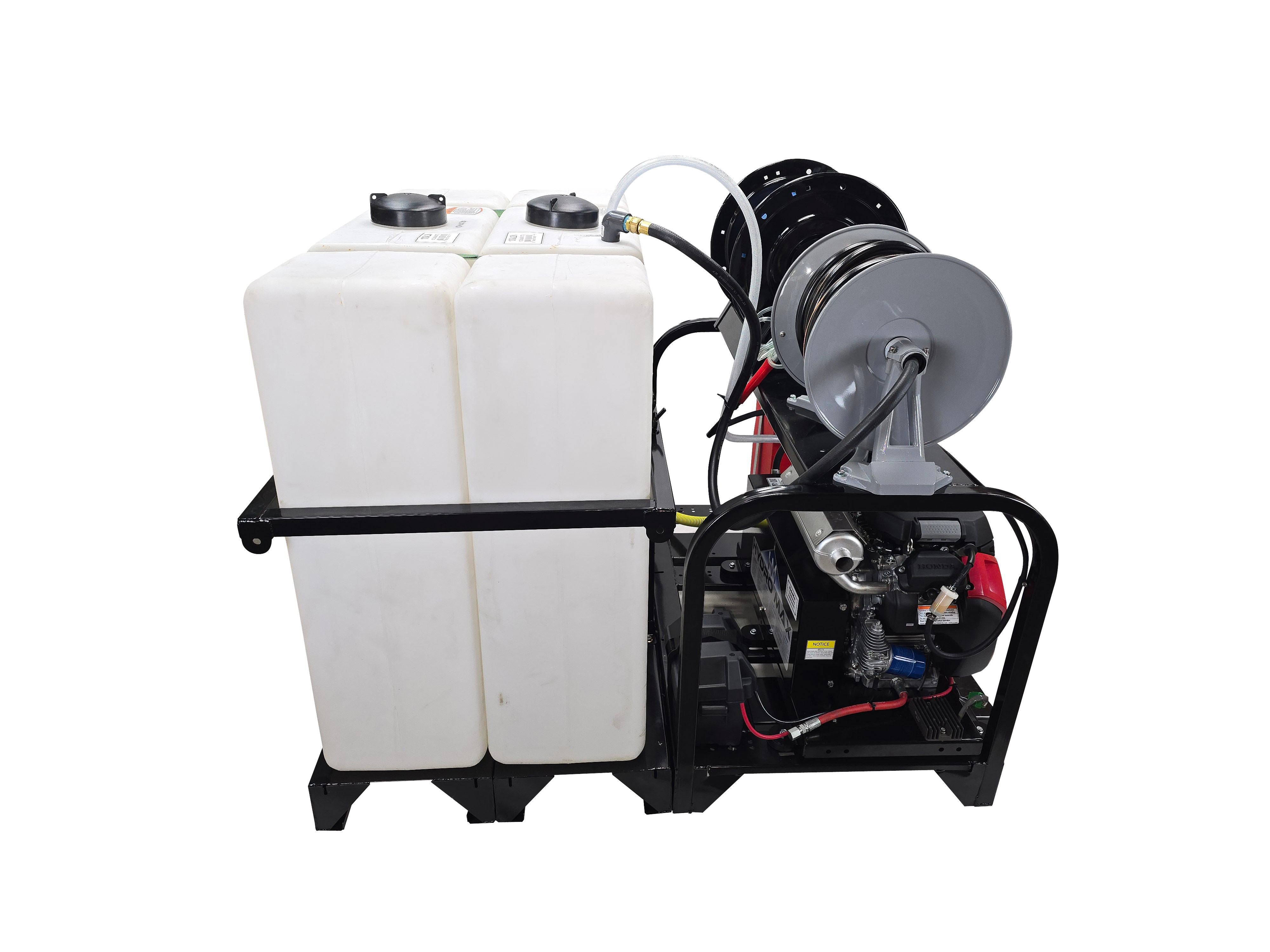

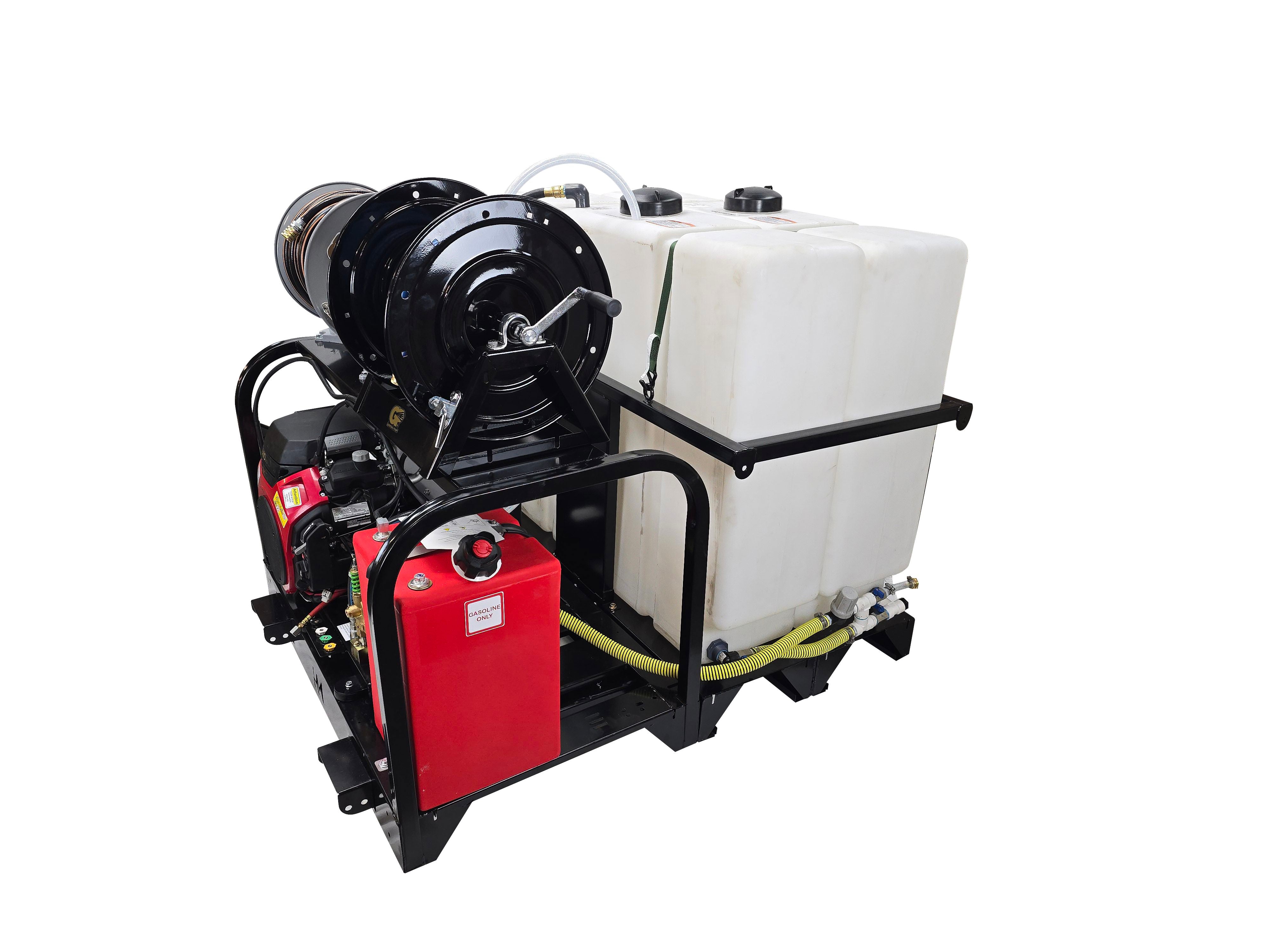

Hydro Max tank skids are complete pressure washer packages built into a compact frame.  Tank skids can be lifted using the integrated fork slots.  Fork slots go through the entire unit so they can be safely lifted using a forklift with standard length forks.

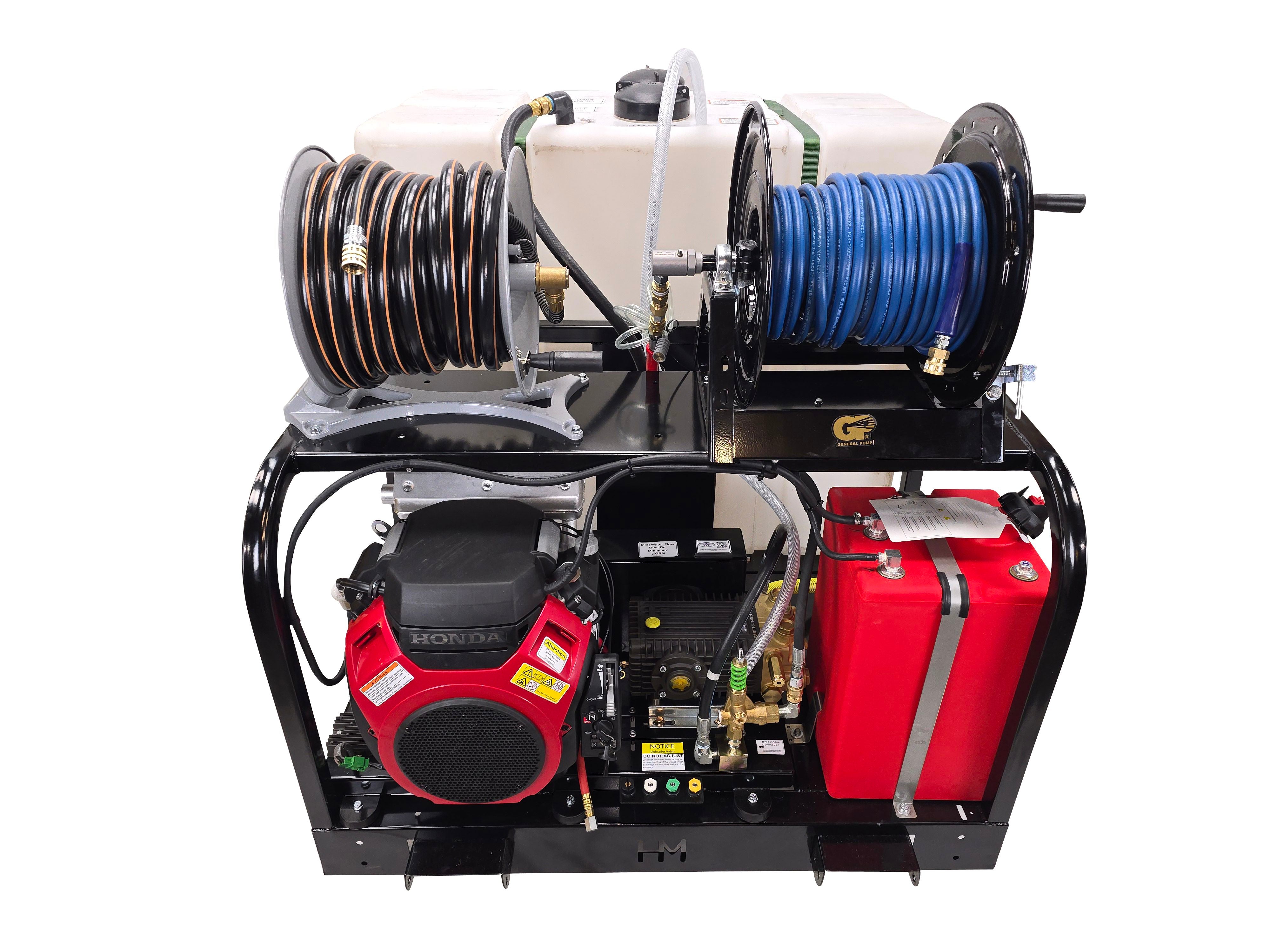

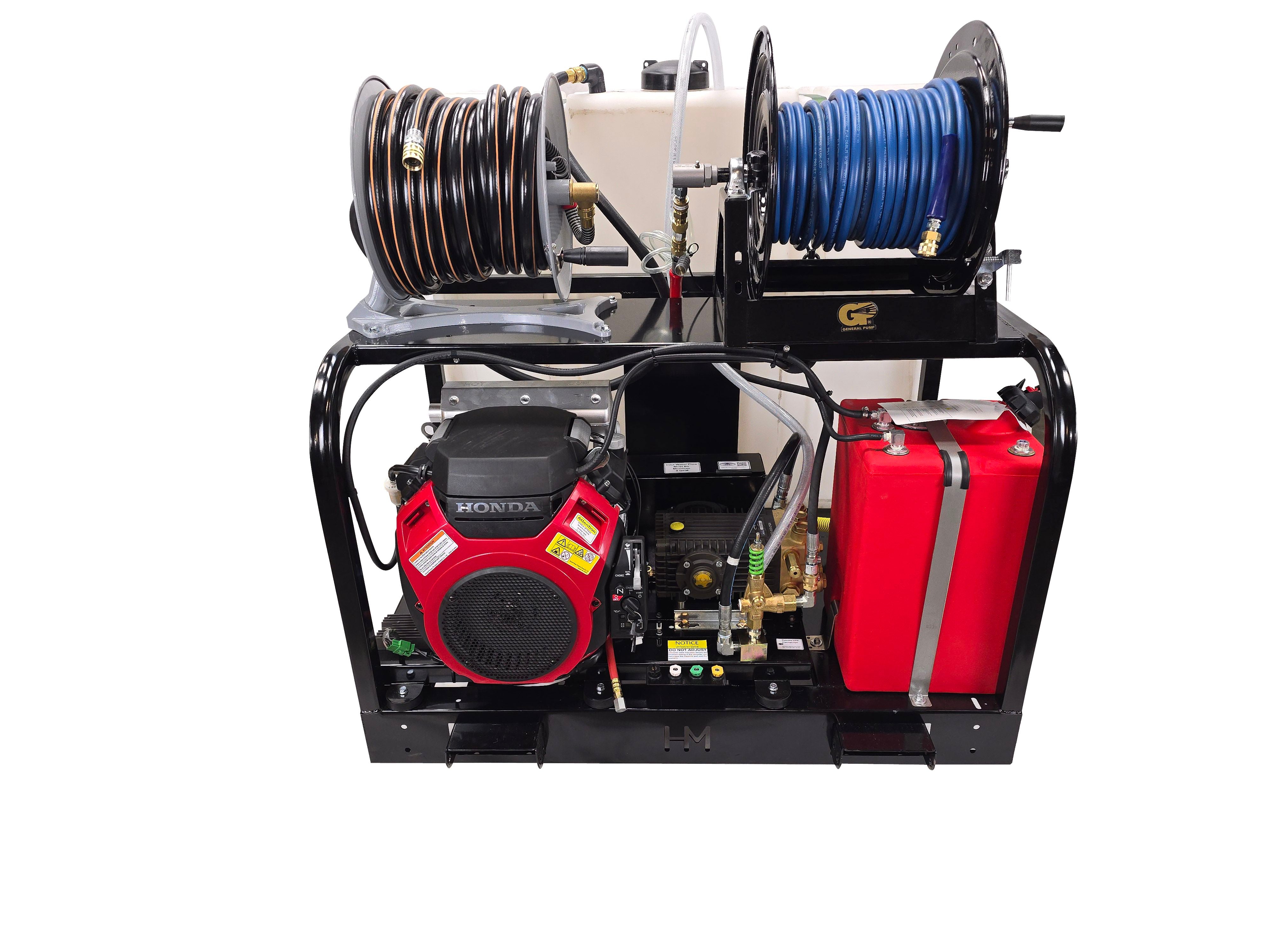

Built for professional, industrial use, the Hydro Max Tank Skid TSCW10030HGi-200 delivers high-output cleaning performance with a Honda iGX800 series engine and a belt‑drive General pump.

Delivering a potent 10 GPM at 3000 PSI, this cold water unit is purpose-built to tackle the most demanding commercial cleaning tasks—from heavy equipment and large-scale concrete cleaning to industrial facility maintenance.

Performance Specifications

Metric	Specification
Flow Rate	10 GPM
Pressure	3000 PSI
Dimensions	72"L x 49"W x 50"H
Weight	Approx. 865 lbs



Technical Product Specifications

Component	Details
Engine	Honda iGX800 Electric Start Engine
Pump	General Pump Assembly
Frame & Housing	Powder-Coated Steel Frame

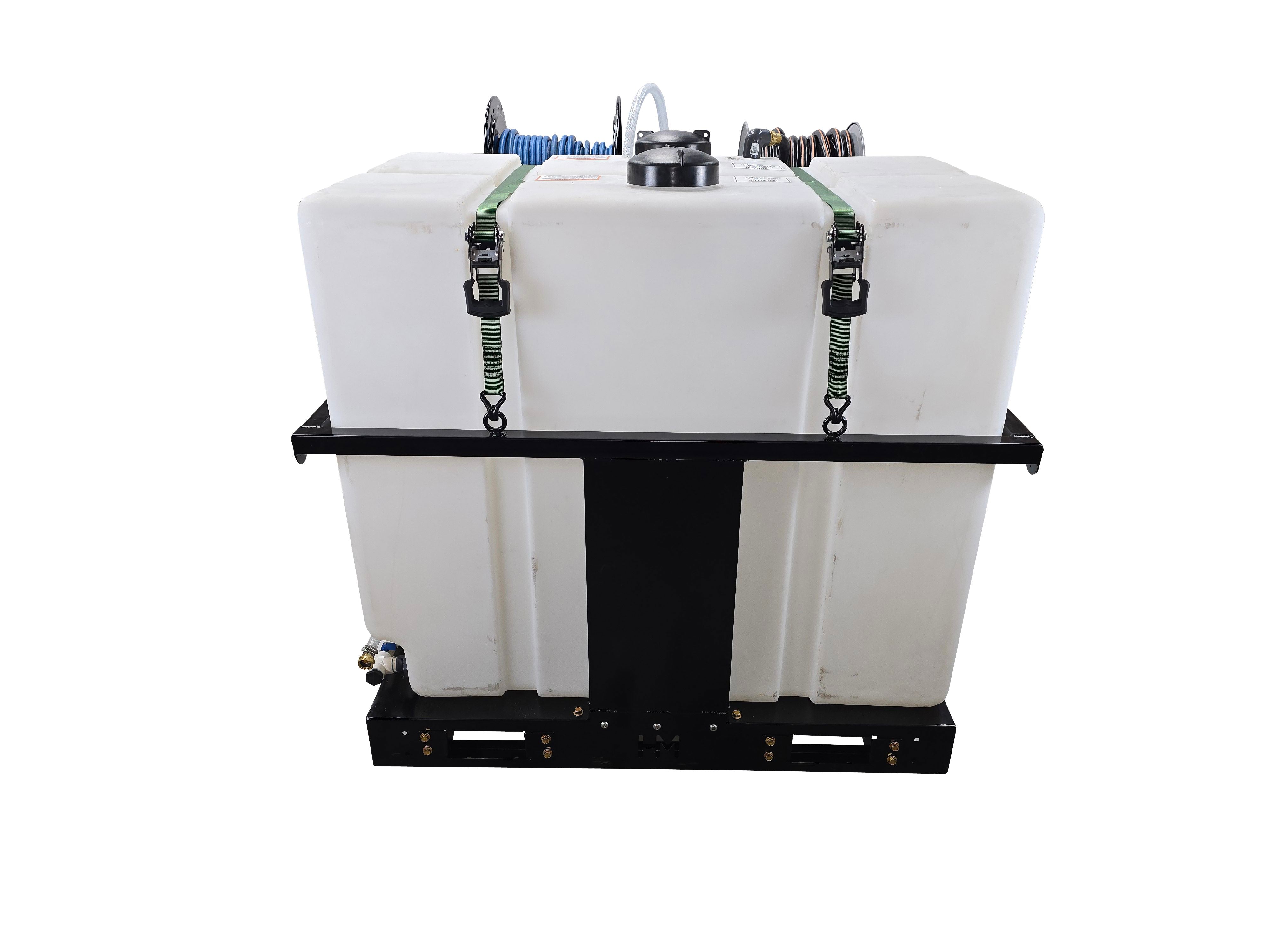

Tank	200gal Water  w/ Float valve Twin 100 gallon tanks Tanks can be separated for individual use(chem tank, etc.) Plumbed Standard as water- Please add note to order, for tank separation
Fuel System	11 Gal Fuel Tank

Specs listed are +/- 10%

Included:

·        ✅ 100' 4200psi Rated Pressure Hose

·        ✅ 100' 5/8" Water Hose

·        ✅ GP 300' Capacity Pressure Hose Reel

·        ✅ GP 150' Capacity Water Hose Reel

·        ✅ Quick-Connect Nozzle Set (soap nozzle, 15°, 25°, 40°)

·        ✅ Chemical Injector for downstream application

·        ✅ QC Fittings on Hose

·        ✅ By-pass plumbed back to water tank

·        ✅ Inlet water filter

·        ✅ Fully plumbed and self contained



Photos may not reflect the exact model. Variations may occur based on engine and pump configurations. Please refer to the description above for specific model details.  Pressure/Volumes are maximum (including spike).
