Hydro Max Tank Skid
Hydro Max tank skids are complete pressure washer packages built into a compact frame. The units are like full trailer packages without the wheels and axles. Tank skids can be lifted from the top or lifted using the integrated fork slots. Fork slots go through the entire unit so they can be safely lifted using a forklift with standard length forks.

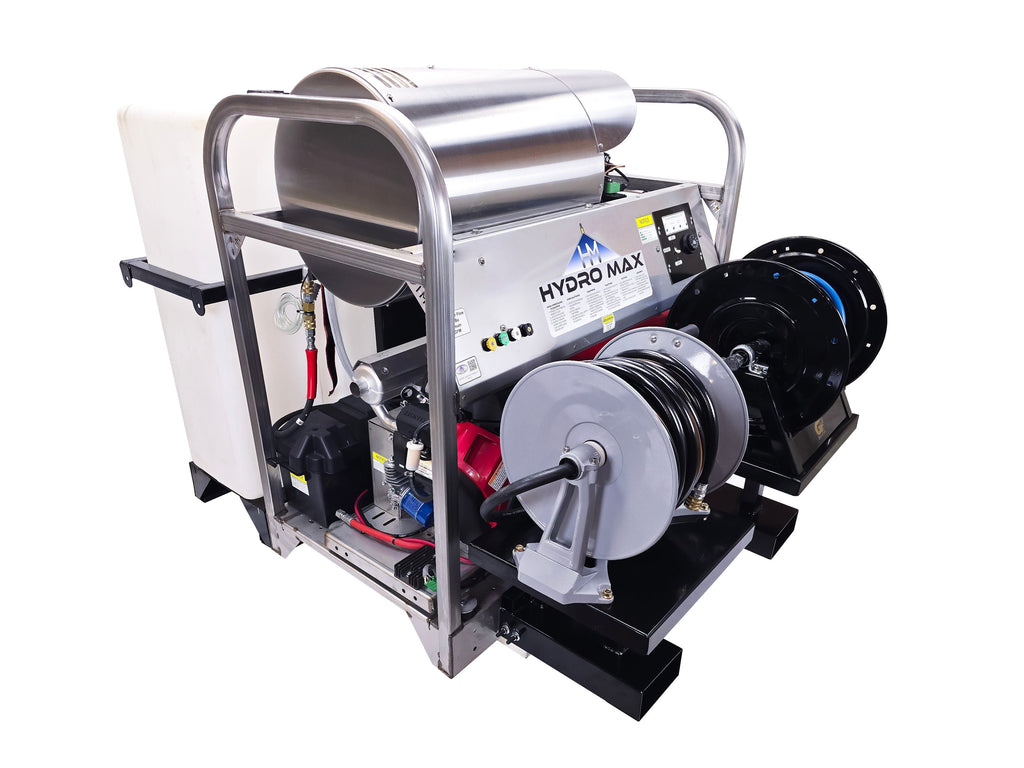

Hydro Max Tank Skid TS-DC6040HG-100
- 5.6gpm@4000psi-Hot Water(DC6040HG Unit)
- Adjustable Thermostat
- Belt Drive Pump
- Honda GX630 Engine- Electric Start
-

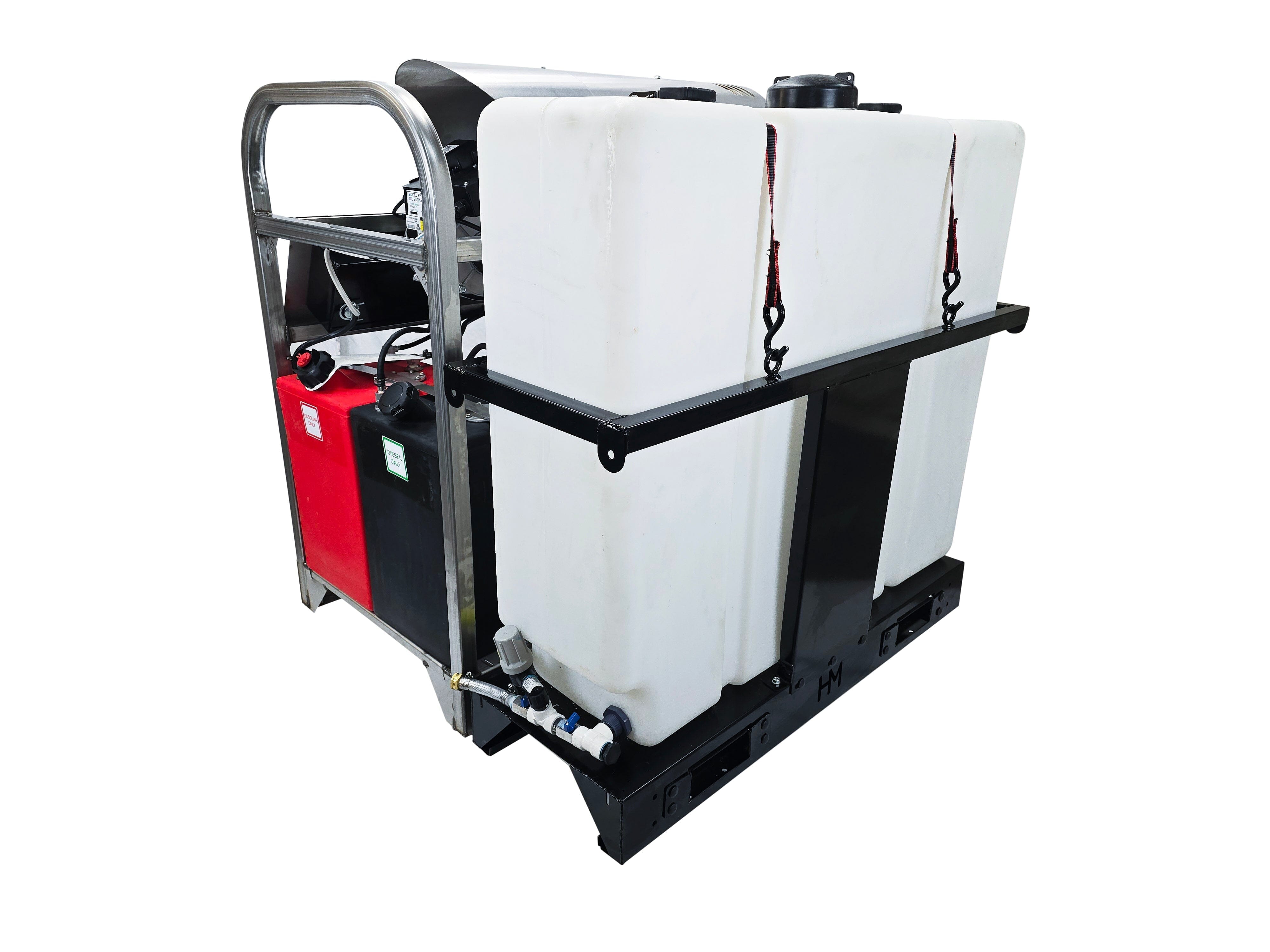

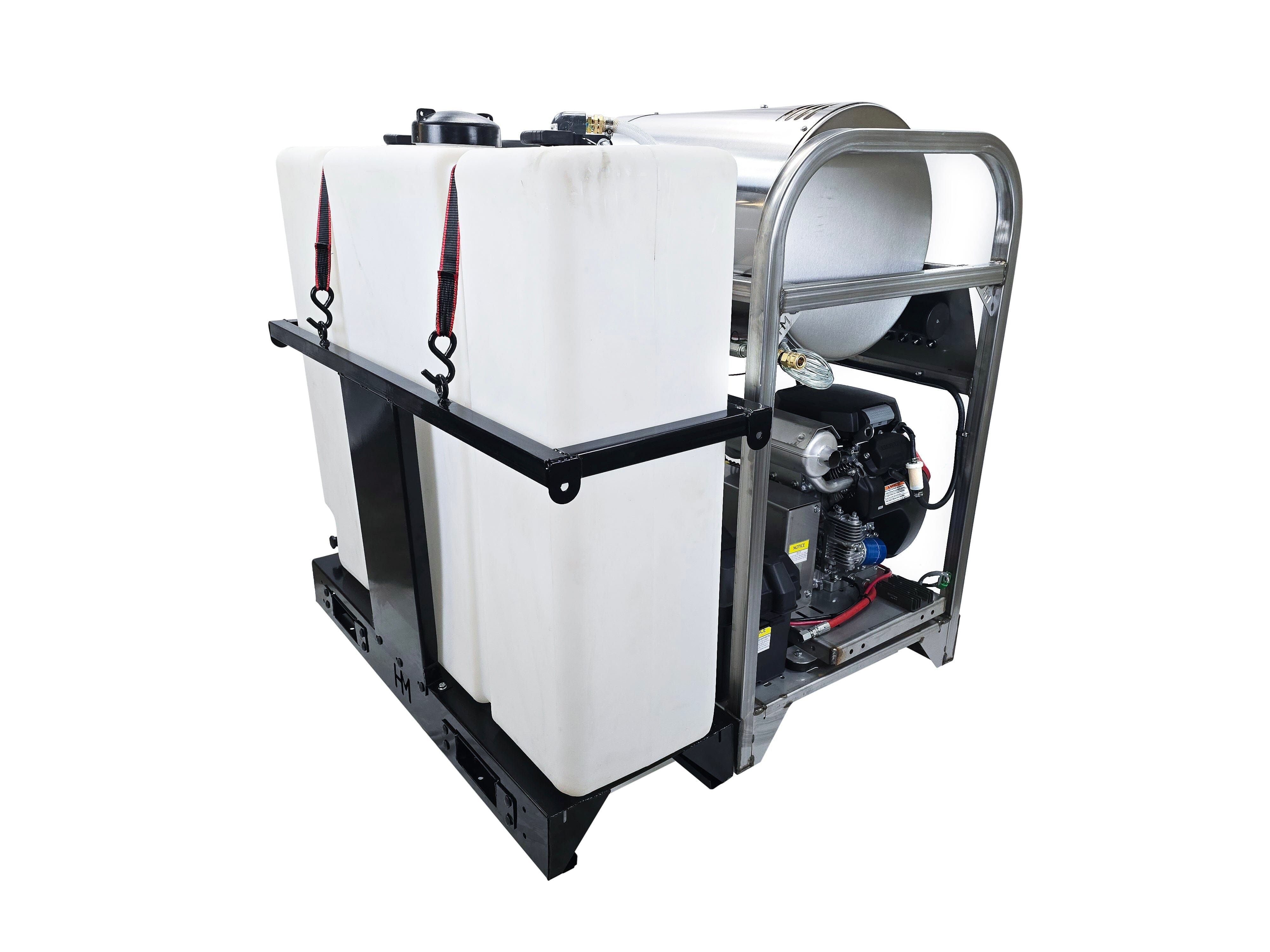

100gal Water Tank w/ Float valve
- 100' 4200psi Rated Pressure Hose
- 100' 5/8" Water Hose

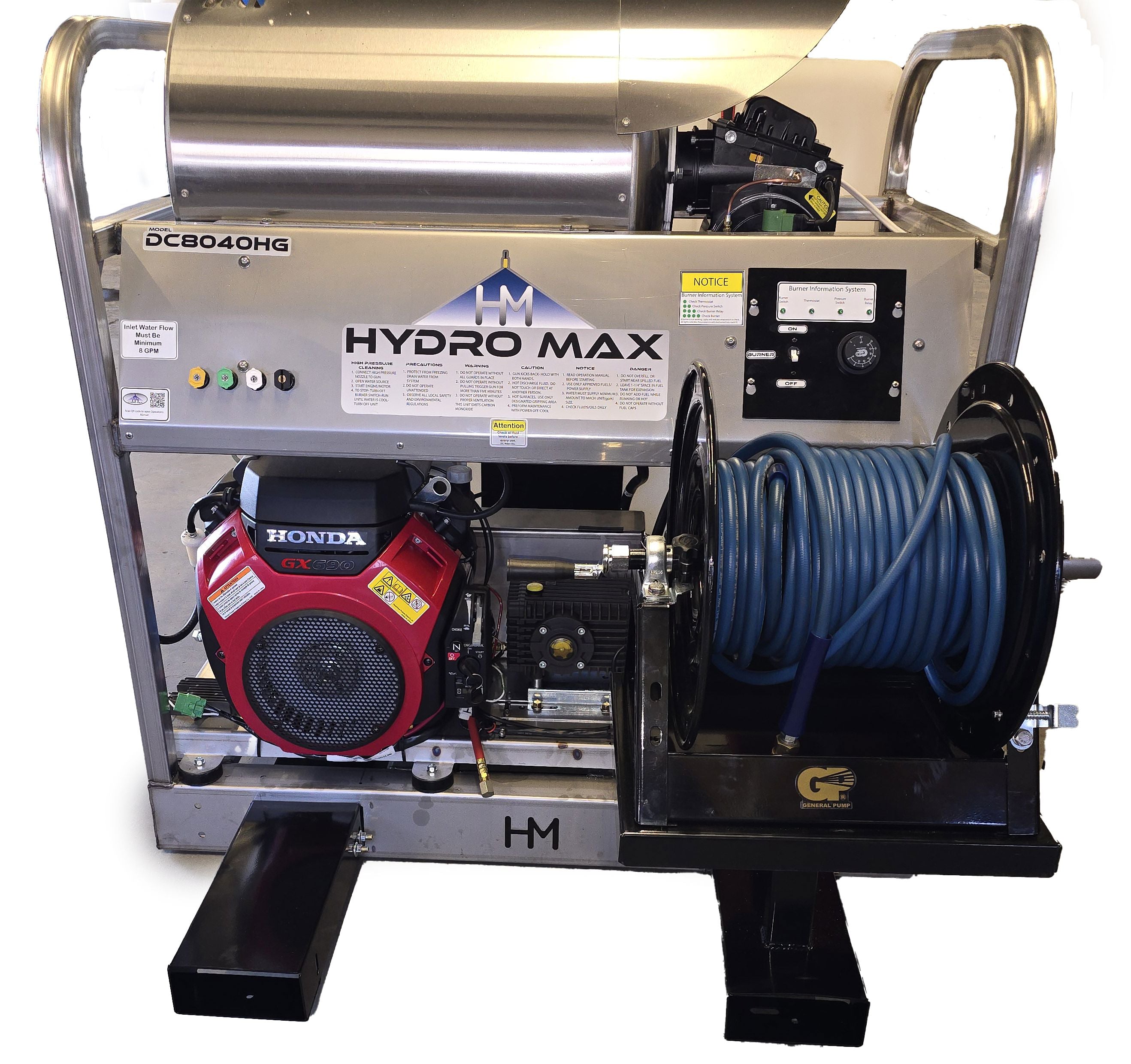

- 1ea-GP DHRA300 Reel(300' Capacity/5000psi rated)-pressure reel
-
1ea-GP DHRGH150 Reel(150' Capacity Water Hose Reel)
- Chemical Injector
- Nozzle Set
- QC Fittings on Hose
- By-pass plumbed back to water tank
- GP Inlet water filter
- Fully plumbed and self contained
- Dimensions 73"L x 50"W x 50"H(including reel)
- 50"Lx49"Wx50"H(with reel removed)
- 50"Lx49"Wx50"H(with reel removed)
- Options
- Reels(pressure hose and garden hose)

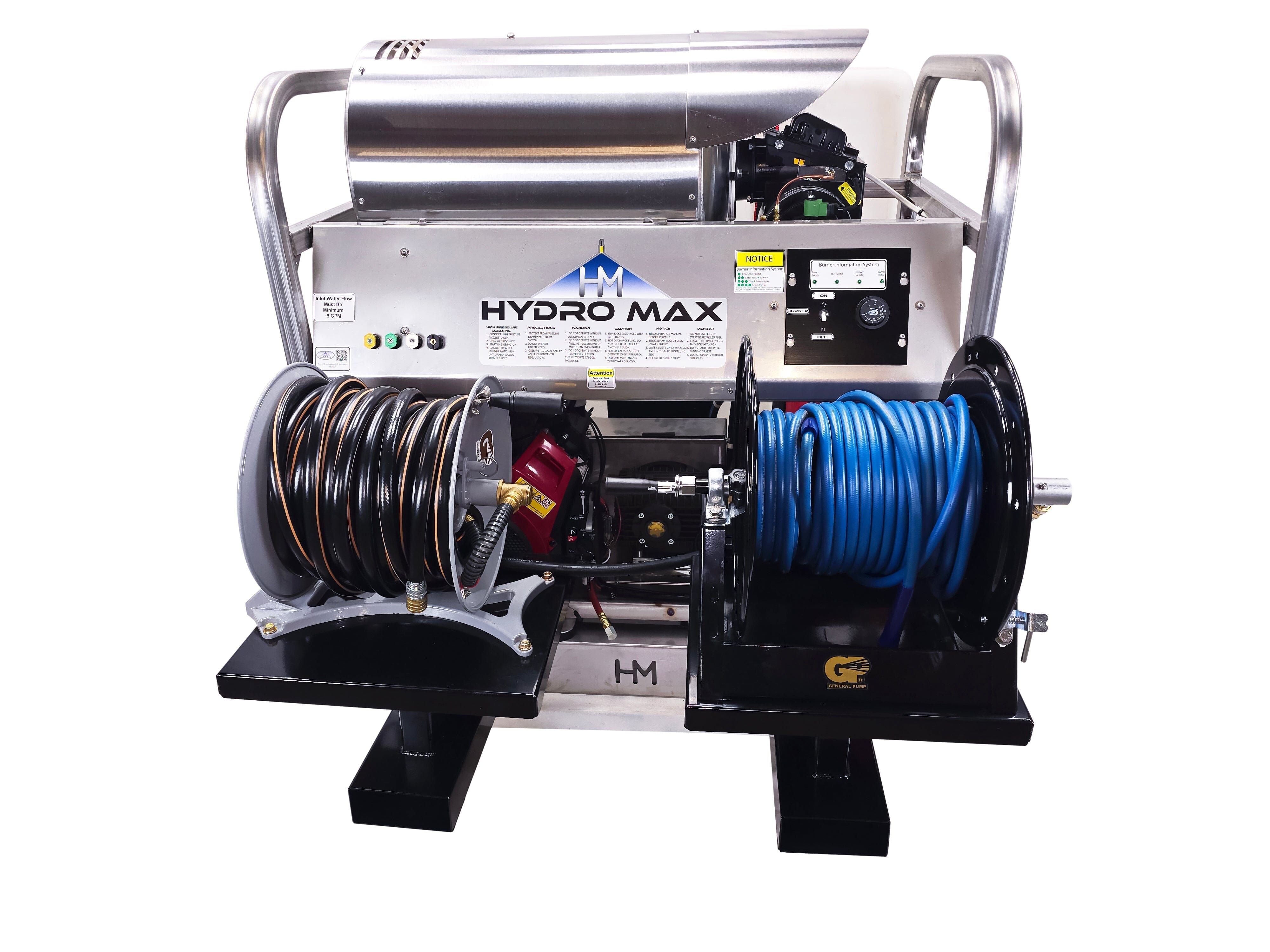

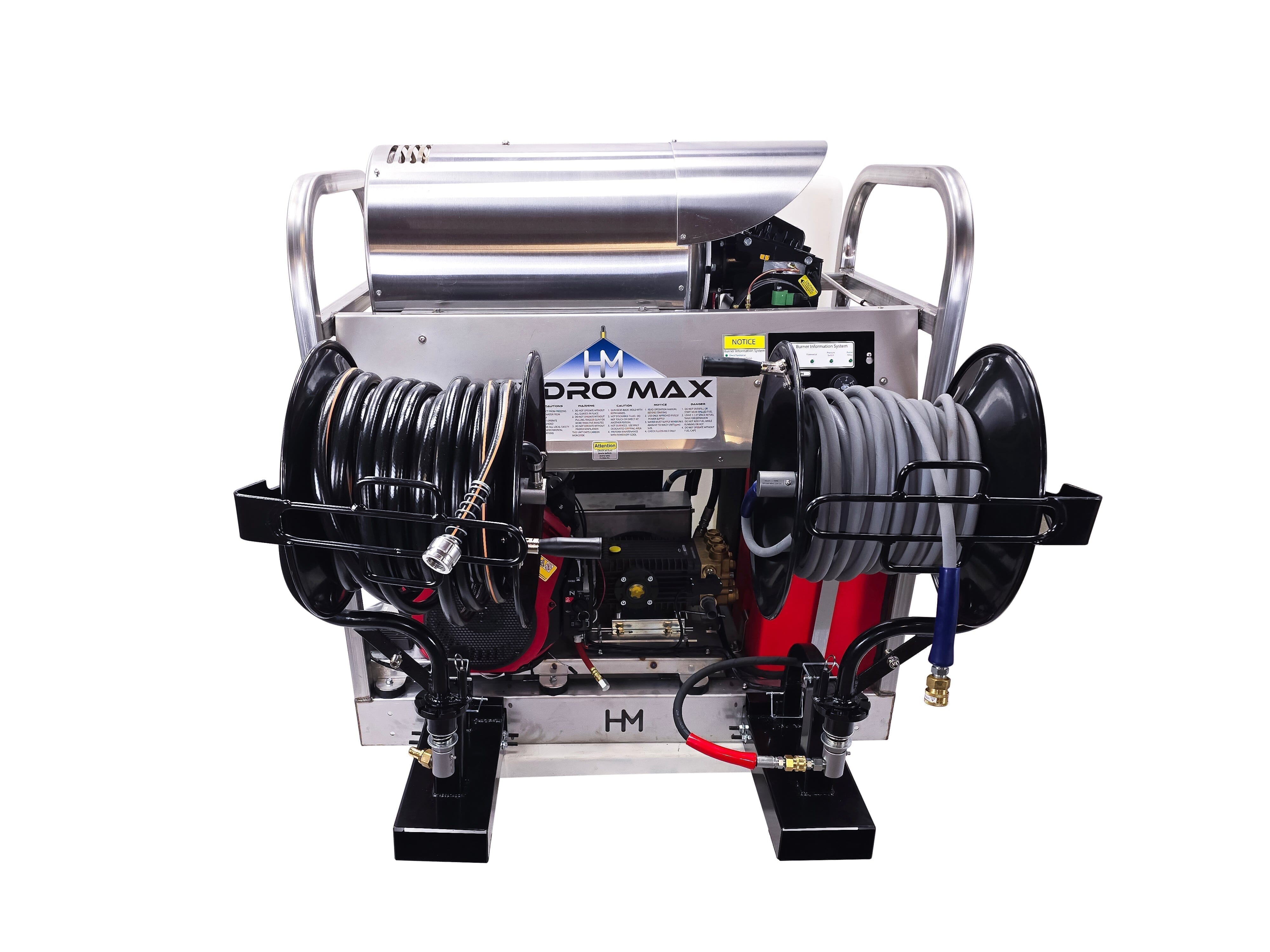

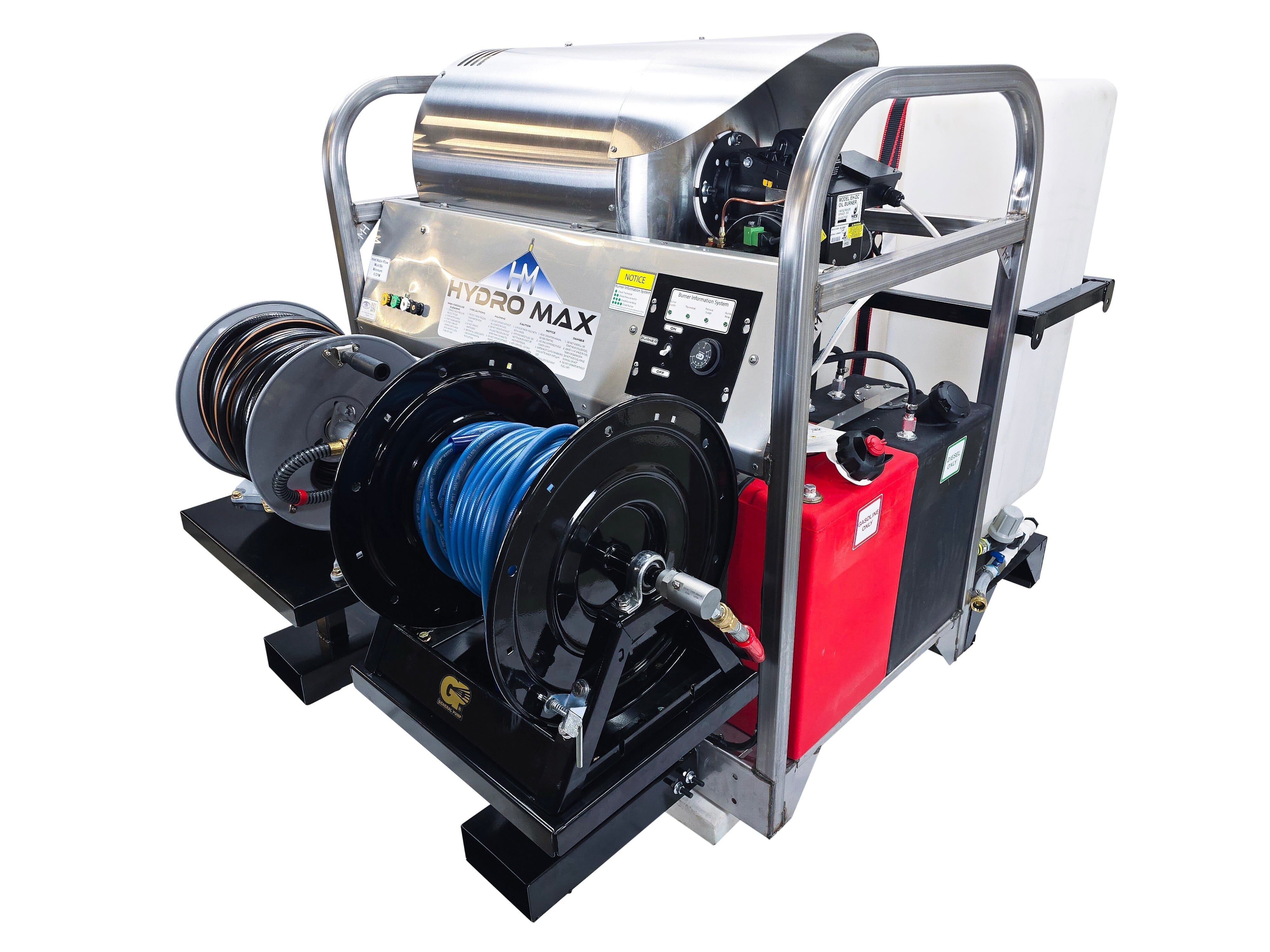

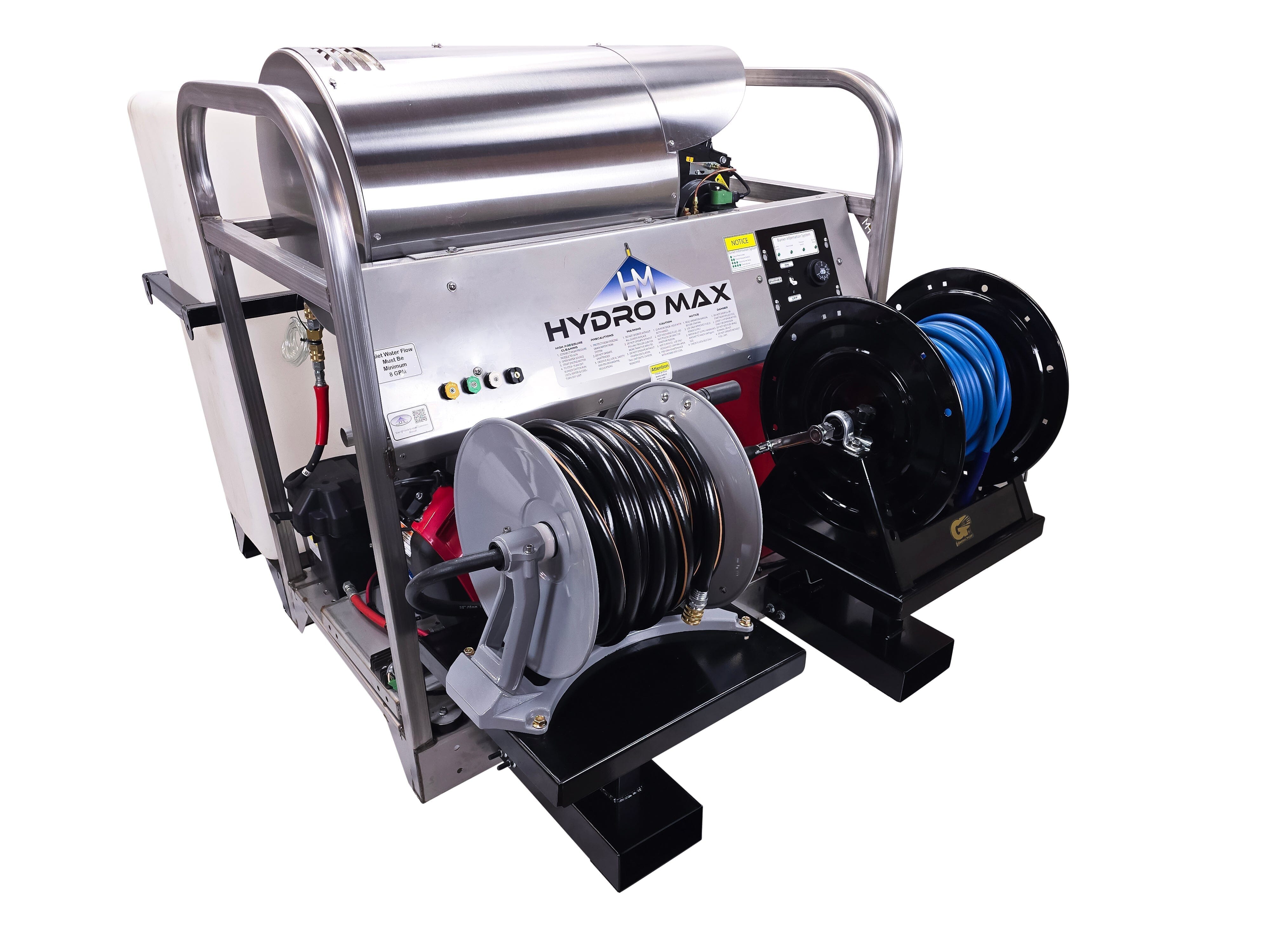

- Front mounted reels

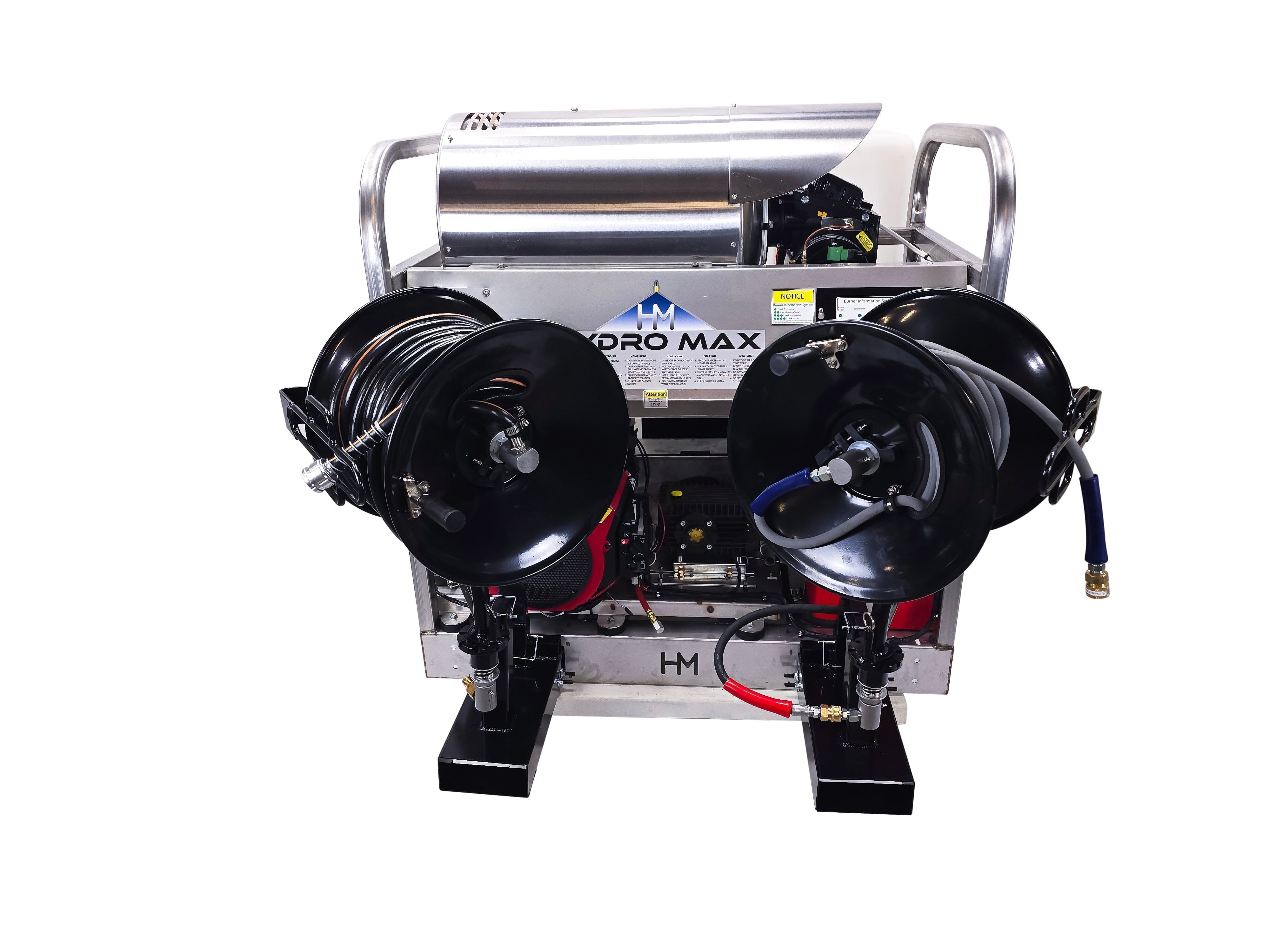

- Two Gun packages
- Please call for special request. Many options can be fitted.
Choose any options or accessories needed from the options tab. Add hose reels, water supply reels or chemical storage tank. The package can be ordered with reels that mount on the front, reels that mount on the top, or no reels.

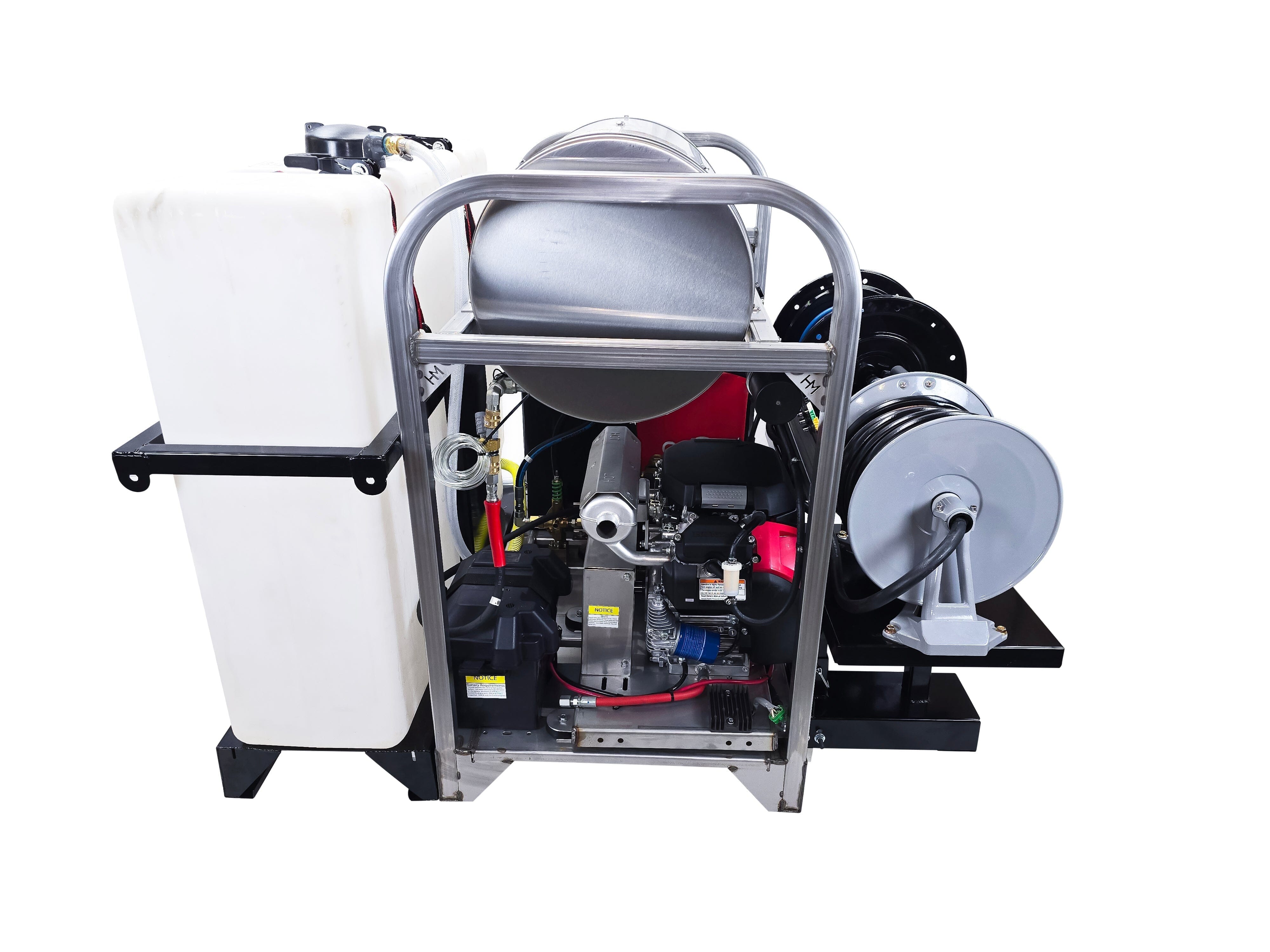

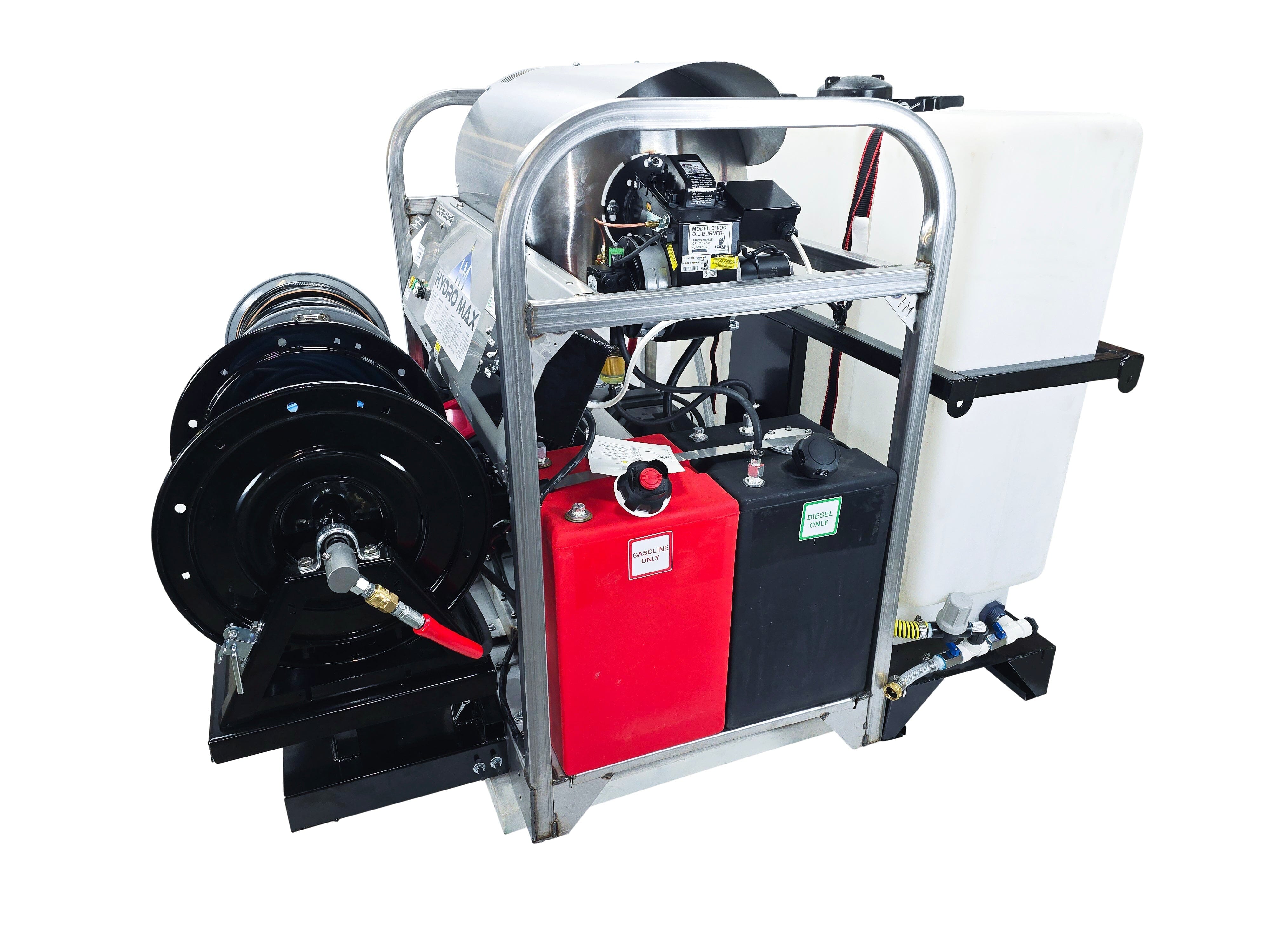

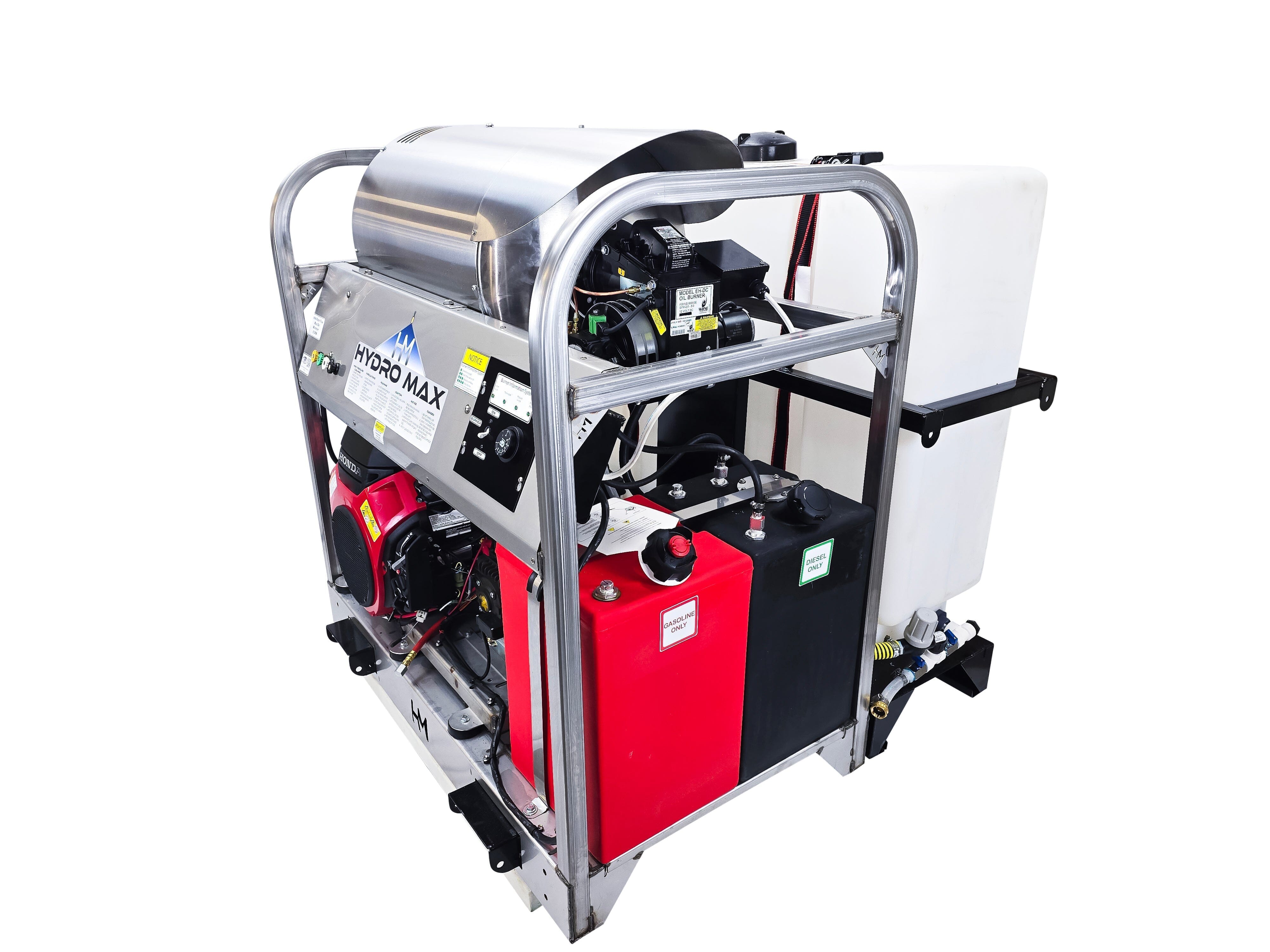

Note: Photos are stock photos for this model. Specs are as listed above. Pressure/Volumes are maximum(including spike).
