Description

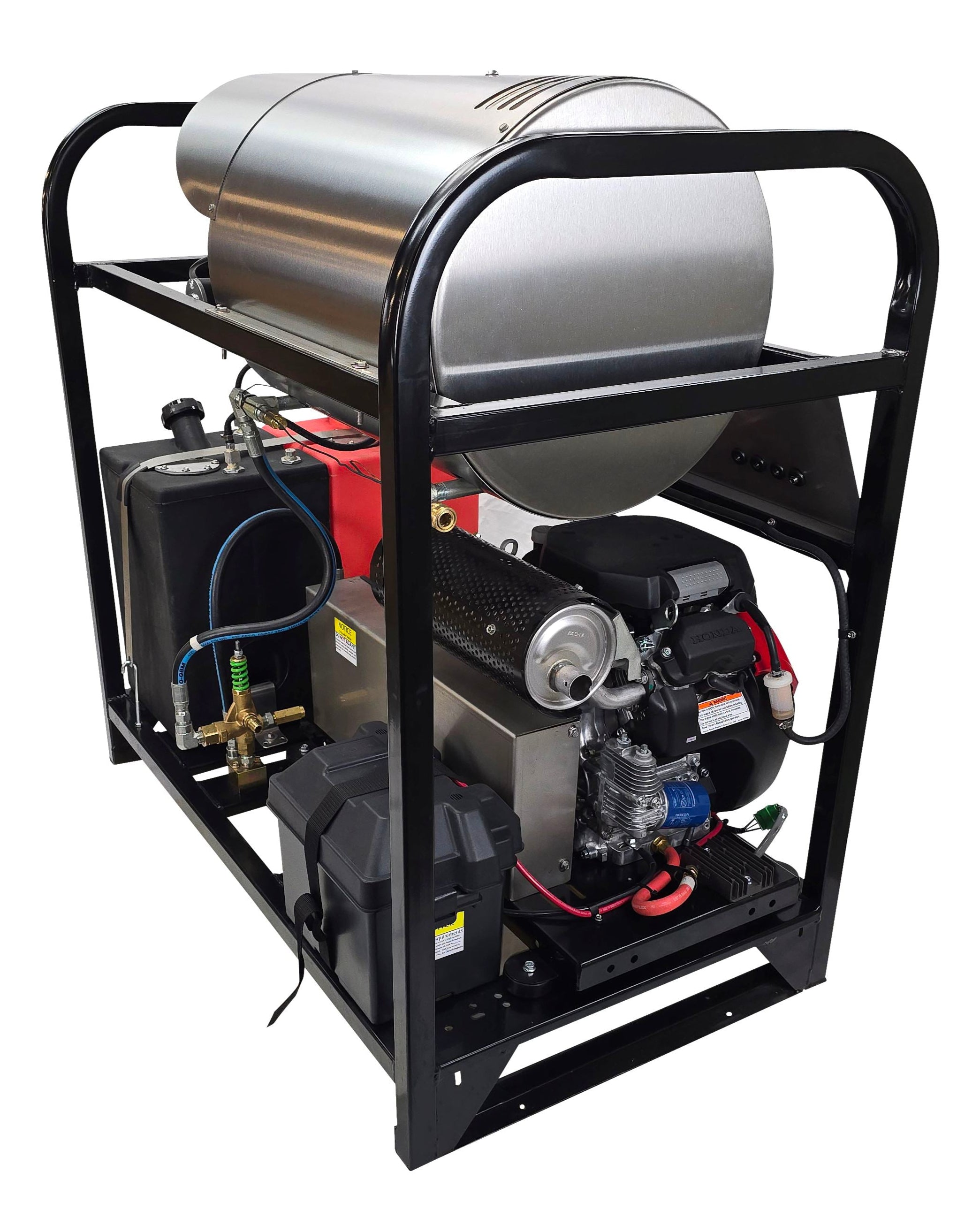

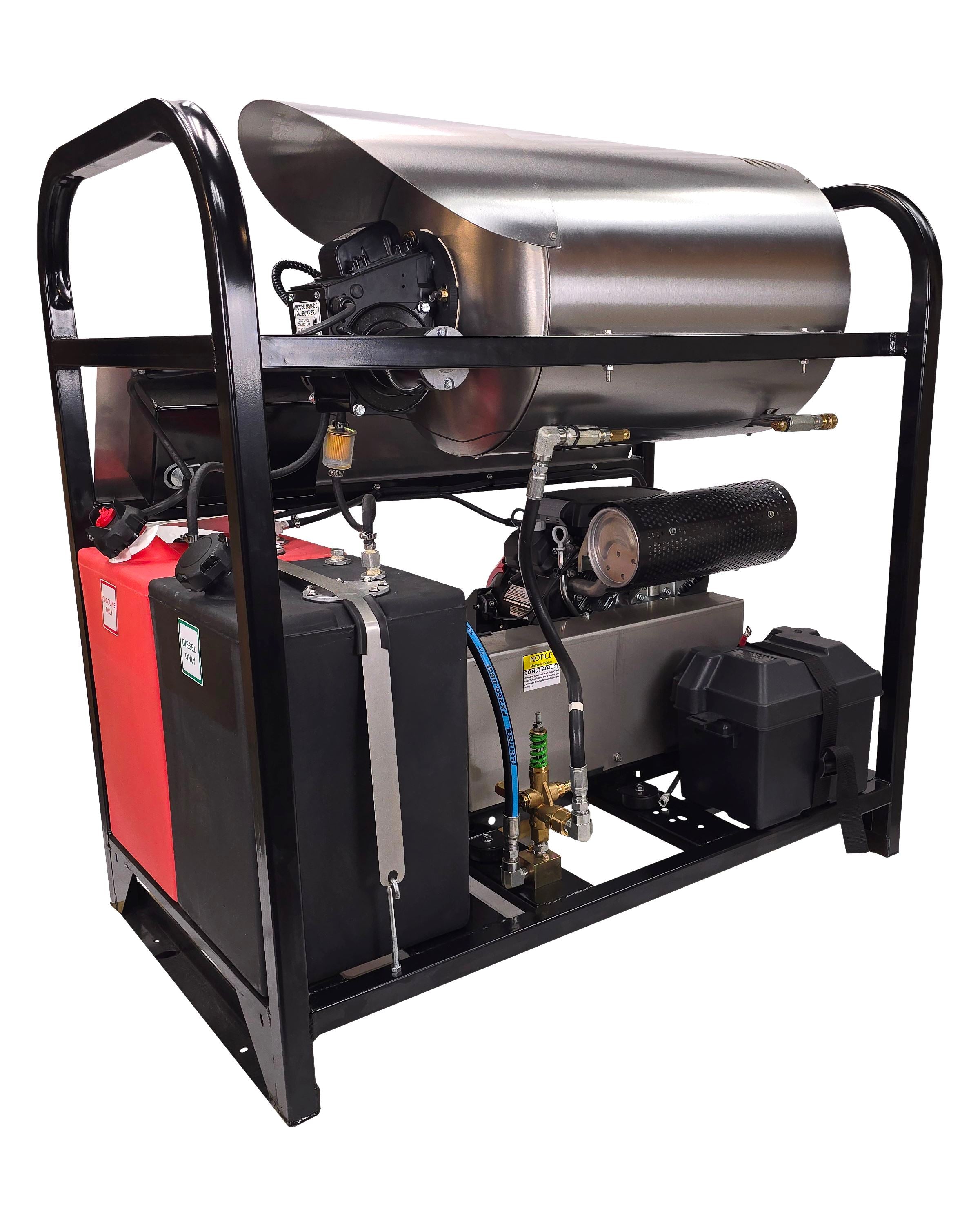

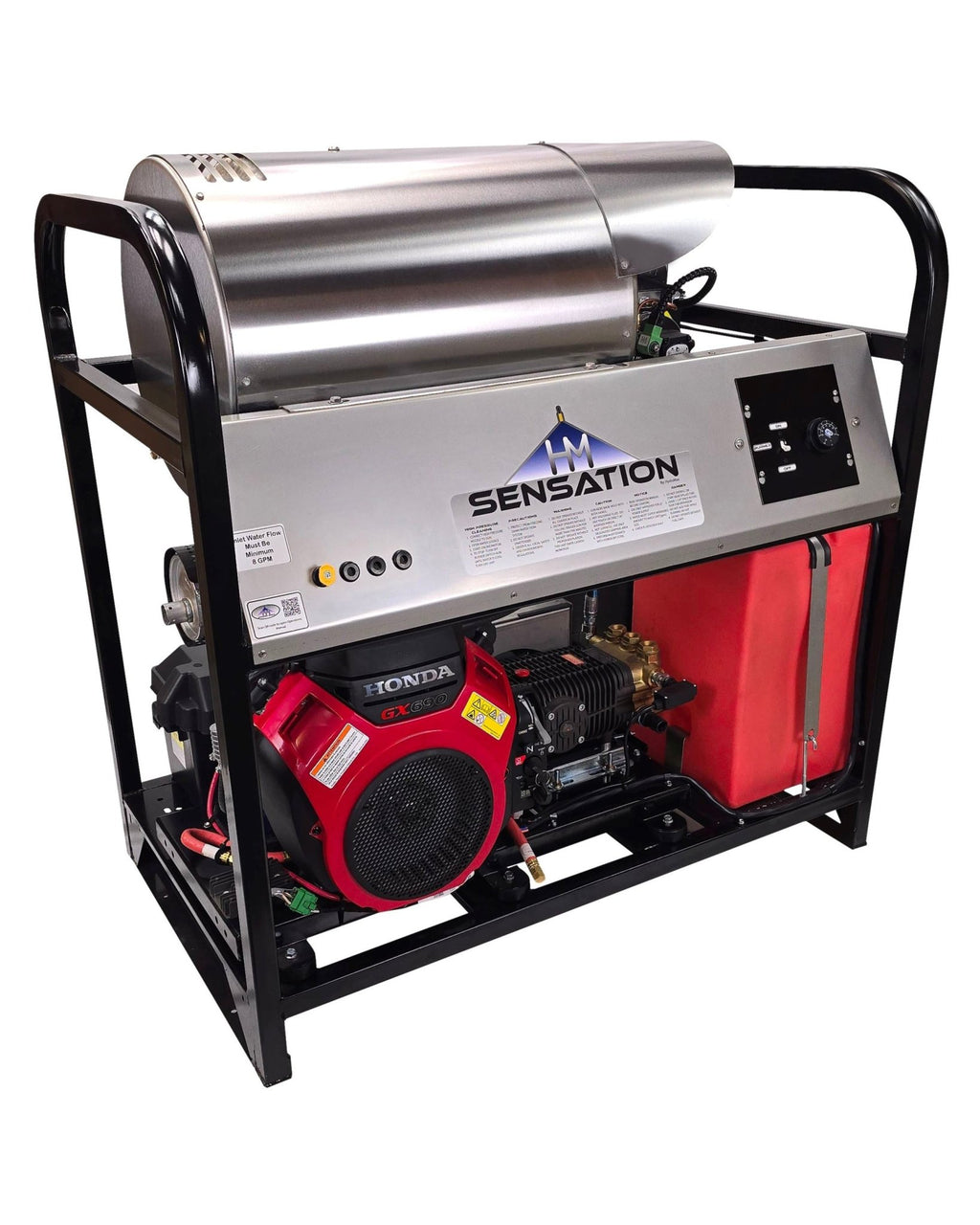

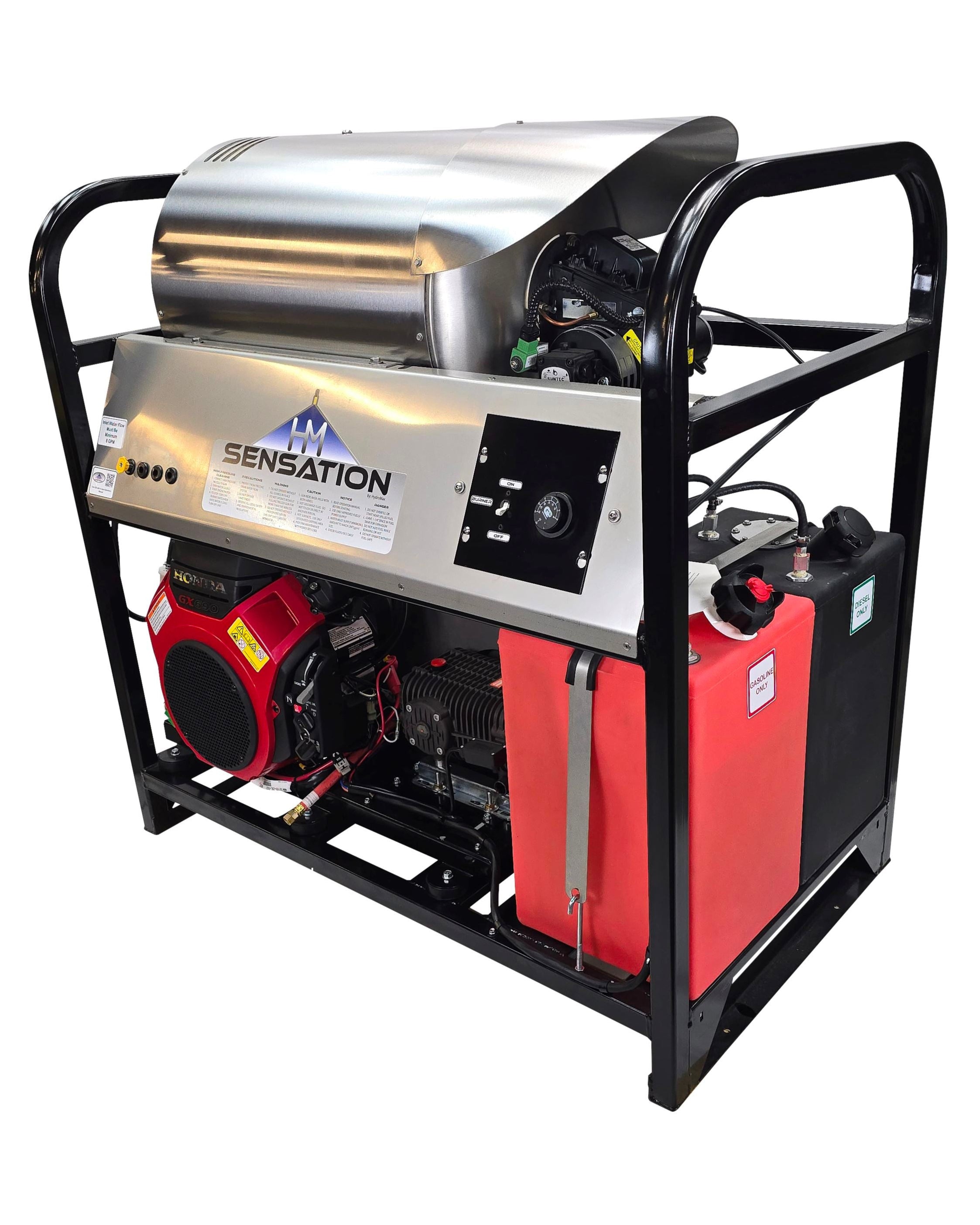

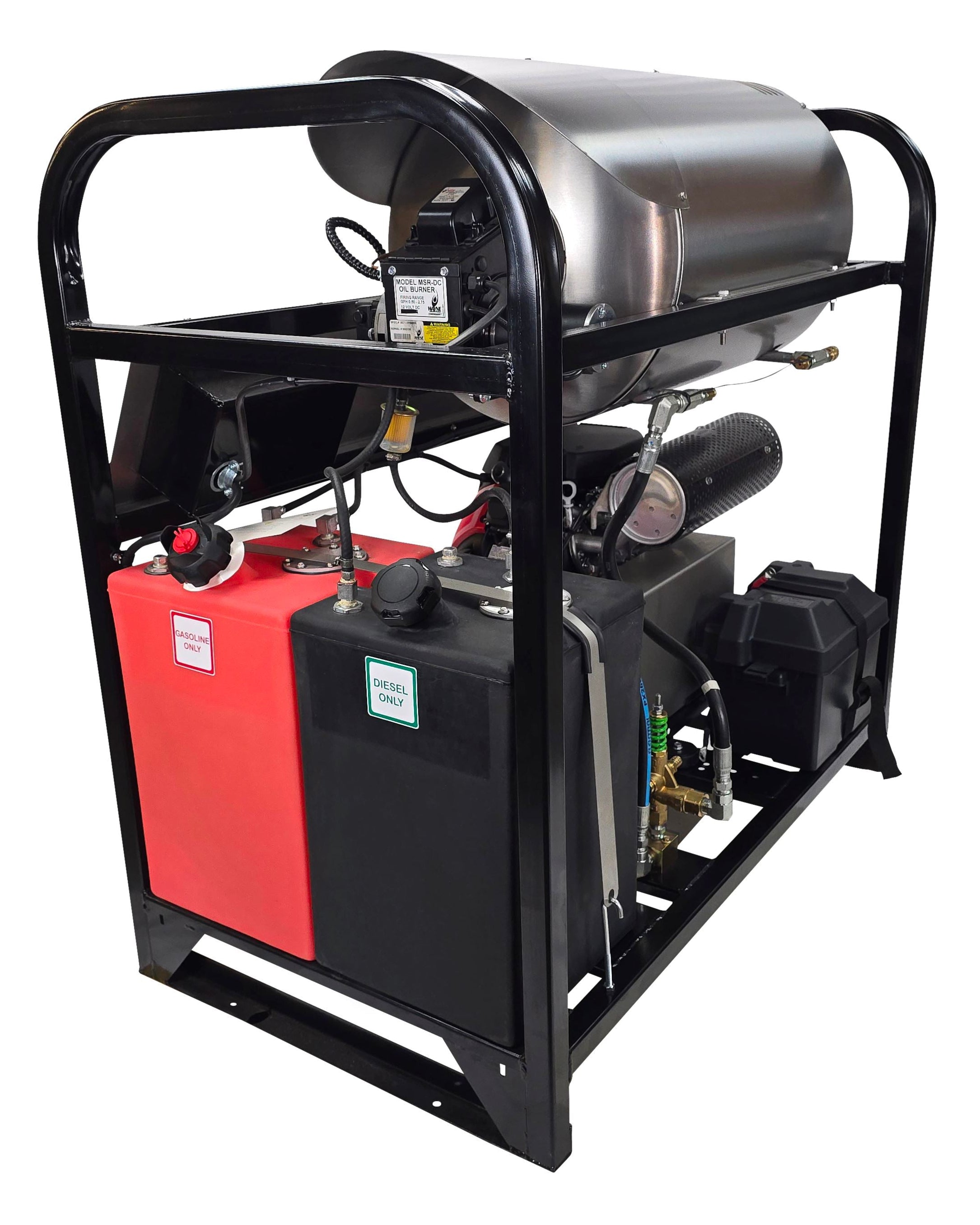

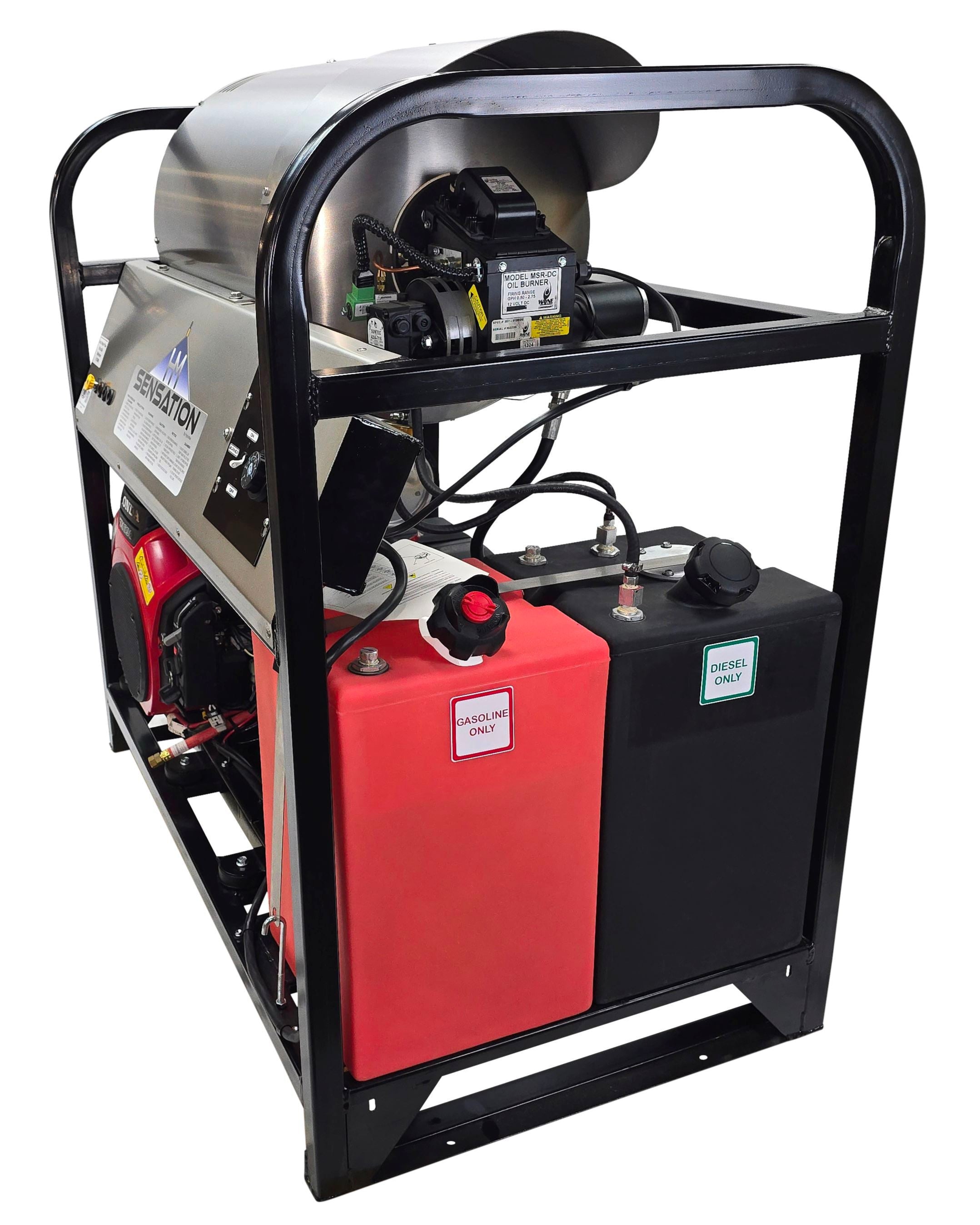

SENSATION SG840HA
Built for professional, industrial use, the Sensation SG840HA delivers high-output cleaning performance with a Honda GX690 series engine and a AR belt‑drive pump.
Designed for durability and serviceability, it features efficient heat rise, an adjustable thermostat, stainless steel coil wrap/panels, and a weather‑tight electrical box. A heavy-duty powder-coated frame, easy oil drain, and included accessories enhance usability and simplify on-site operation, ensuring high productivity across construction, agriculture, manufacturing, and commercial cleaning applications.
Performance Specifications
|
Metric |
Specification |
|
Flow Rate |
8 GPM max |
|
Pressure |
3500 PSI |
|
Temperature Control |
Adjustable Thermostat |
|
Dimensions |
46" L x 46" H x 28" D |
|
Weight |
Approx. 600 lbs |
Technical Product Specifications
| Component | Details |
|
Engine |
Honda GX690 17A, Electric Start |
|
Pump |
AR XWAM8G35N Pump |
|
Burner |
12V Oil Burner |
|
Coil |
18" x 24" High-Efficiency Heat Coil |
|
Fuel System |
11 Gal Diesel Tank, 11 Gal Gas EPA- Compliant XLPE Tank |
|
Unloader Valve |
ZH288 Unloader Assembly |
|
Frame & Housing |
Welded 14GA powder-coated steel frame with stainless steel coil wrap and access panels |
|
Electrical |
12VDC Lighted Indicator Panel |
|
Drive System |
Belt Drive with Triple BX High HP Belts |
Specs listed are +/- 10%
Included Accessories
- ✅ 50 ft. 3/8” Non-Marking Pressure Hose (rated to 4200 PSI)
- ✅ 48” Single Lance Wand with Trigger Gun
- ✅ Quick-Connect Nozzle Set (soap nozzle, 15°, 25°, 40°)
- ✅ Chemical Injector for downstream application
- ✅ Inline Fuel Filter
- ✅ Hour Meter for maintenance tracking
- ✅ Grommet Nozzle Holder, Thermostat
Photos may not reflect the exact model. Variations may occur based on engine and pump configurations. Please refer to the description above for specific model details.
