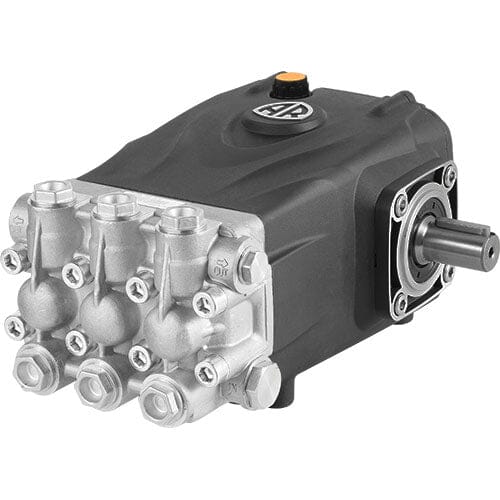

The Annovi Reverberi RG2125HN, N version 24x40mm solid shaft triplex pump is ready for direct or pulley driving. This pump is manufactured with a nickel plated brass pump head suitable for a wide range of conditions. The RG2125HN can produce up to 3650 Max PSI, 5.5 Max GPM, and is designed to operate at 1450 RPM. Constructed with frictionless aluminum connecting rods and ceramic pistons, the RG2125HN weighs in at 27.5 lbs and boasts a sleek compact design
| Weight | 27.5 lbs |
|---|---|
| Pump Orientation |
Horizontal |
| Pump Head Material |
nickel plated brass |
| Connecting Rods |
aluminum |
| Max GPM |
5.5 |
| Max L/Min |
21 |
| Max PSI |
3650 |
| Max Bar |
250 |
| Power EBHP |
13.6 |
| Bore Dia mm |
18 |
| Stroke mm |
19.8 |
| CSID Stamp |
1 |
| Inlet (in) |
1/2" F |
| Outlet (in) |
3/8" F |
| Max Temp |
140° F |
| Oil Capacity (oz.) |
32 |
| RPM |
1450 |
| Shaft Size |
24x40mm |
| Shaft Version |
Neutral Shaft |
| Shaft Type |
Solid |
| Market |
Commercial |
| Pump Type |
Tri-Plex Plunger |
