Description

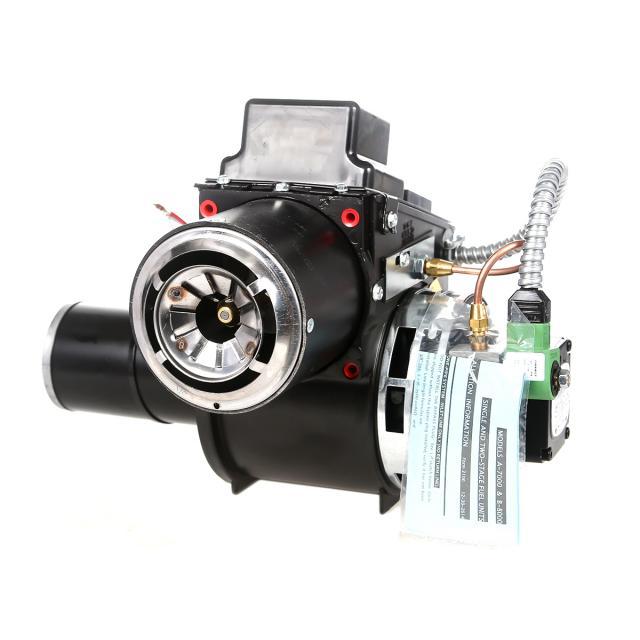

Wayne EH-12V Burner
Burner is standard with 4.00 80B Fuel nozzle(can be changed)
The EH series burners are used on all Hydro Max 12V systems with flow rates over 7GPM. These burners are designed to replace the typical 120V burners on most pressure washers. The EH series is offered in 12V and 120V. Both versions produce the same amount of BTU(depending on fuel nozzle installed).
| Name | Value |
|---|---|
| Air Adjustment | Air adjusting bands interlock for positive air adjustment. |
| Air Tube Length(s) | 3.75" |
| Capacities | 3.00 - 5.5 GPH |
| Controls | Ignitor dropout circuity timer available. |
| Electrical (Voltage) | 12VDC |
| Fan Housing | One piece, die cast aluminum. |
| Fuel Pump | PUMP-S A2VA3006-221 12V COMBO 7 GPH capacity |
| Ignition | 12 VDC, constant duty, solid state, mid-point ground. Input 12 VDC, 50 VA, full load amps 5.2. Output -20 KV peak, 28 MA. |
| Motor | MOTOR,12VDC LOWAMP/3950RPM |
| Mounting | Adjustable flange or optional fixed mounting flange. |
| Oil Valve | Non delay, 24 VAC/12 VDC, .6 amp, fuel pump mounted. |
| Shipping Weight | 35 lbs. |
